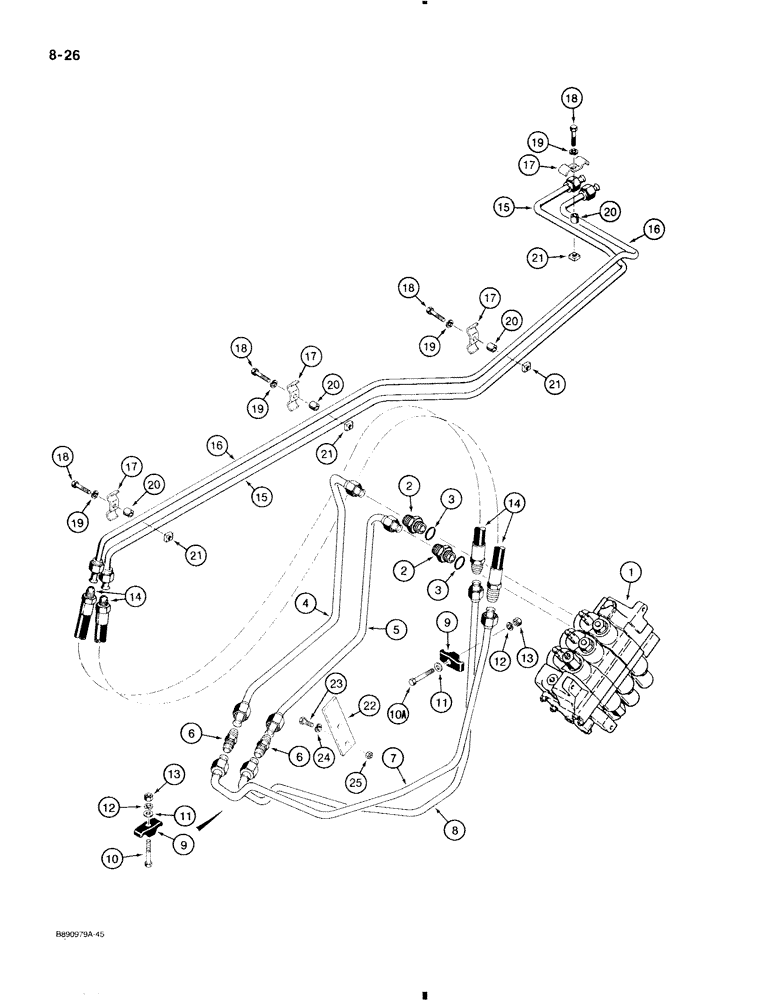

Запчасти Case 580K (8-026) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G109582

VALVE, CONTROL

VALVE ASSEMBLY, loader control, three spool, parts list Figure 8-86

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D143856

PIPE

TUBE from upper port auxiliary section of loader control valve, used with Ref. 7, Replaces: one piece tube used in production

1шт.

5

D143852

PIPE

TUBE from lower port auxiliary section of loader control valve, used with Ref. 8, Replaces: one piece tube used in production

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

2шт.

7

D143858

PIPE

TUBE outer, upper port loader valve tube to lift arm tube

1шт.

8

D143854

PIPE

TUBE inner, lower port loader valve tube to lift arm tube

1шт.

9

D120613

CLAMP,20mm ID

plastic, tube

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10a

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

195-104

WASHER,3/8"

flat, 3/8"

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D125995

HOSE,12.7mm ID x 750mm L

at loader arm pivot, 29-9/16", 750 mm long

2шт.

15

D137482

TUBE

lower, on loader lift arm

1шт.

16

D137480

TUBE

upper, on loader lift arm

1шт.

17

D137379

CLAMP

tube, on loader lift arm tubes

4шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

D123539

BUSHING

SPACER plated, 10 ID x 16 OD x 6 mm long

4шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

4шт.

22

D147447

PLATE

tube clamp

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8" NC x 1"

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.
