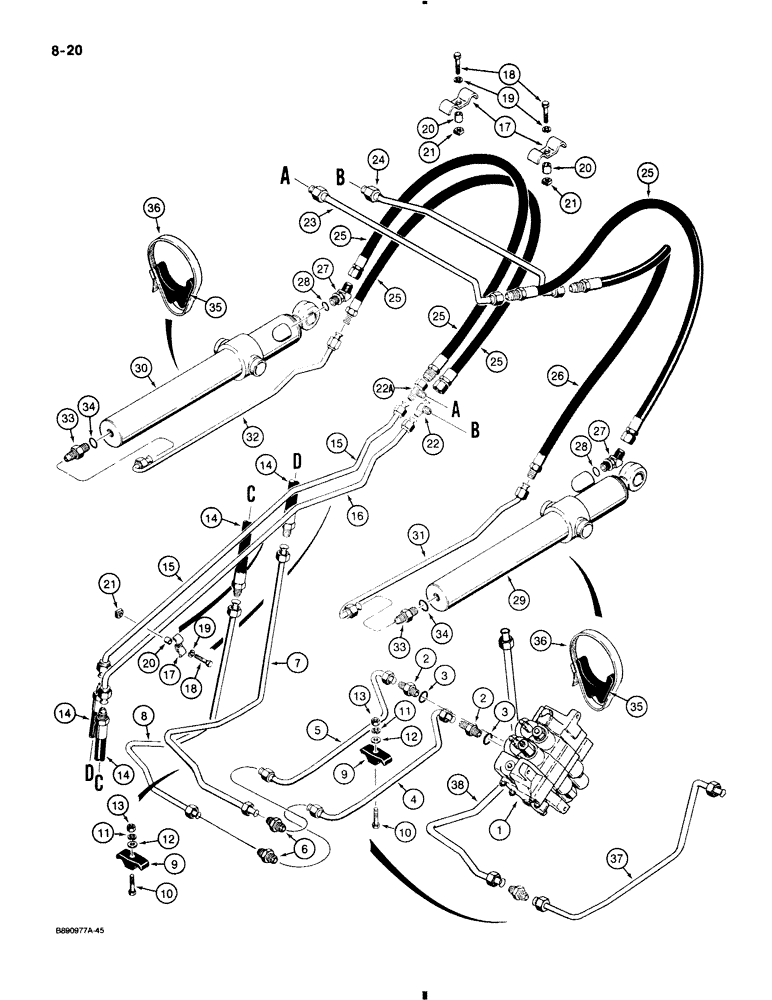

Запчасти Case 580K (8-020) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-84 or 8-86

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D143266

PIPE

TUBE to lower bucket port of control valve, use with Ref. 6 and 8 to replace one piece tube used in production

1шт.

See Fig. 8-24 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments.

1шт.

5

D143268

PIPE

TUBE to upper bucket port of control valve, used with Ref. 6 and 7 to replace one piece tube used in production, no longer used, order tubes 37 and 38 and one Ref. 6 connector

1шт.

See Fig. 8-24 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments.

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

2шт.

See Fig. 8-24 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments.

1шт.

7

D143848

TUBE ASSY.

TUBE attaches to tube at upper port of control valve, bucket dump, used with Ref. 5 and 6 to replace one piece tube used in production, no longer used, order tubes 37 and 38 and one Ref. 6 connector

1шт.

See Fig. 8-24 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments.

1шт.

8

D143850

TUBE

from lower port of control valve, bucket rollback, use with Ref. 4 and 6 to replace one piece tube used in production

1шт.

See Fig. 8-24 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments.

1шт.

9

D120613

CLAMP,20mm ID

plastic, tube

2шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, plated, 3/8"-16 NC x 1-3/4"

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

495-21044

WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

D125995

HOSE,12.7mm ID x 750mm L

at loader lift frame pivot, 29-9/16", 750 mm long

2шт.

15

D141672

PIPE

TUBE upper, on left hand lift arm

1шт.

16

D141674

PIPE

TUBE lower, on left hand lift arm

1шт.

17

D143427

CLAMP

tube

5шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

5шт.

19

492-11038

LOCK WASHER,3/8"

5шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

plated, 10 ID x 16 OD x 6 mm long

5шт.

21

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

5шт.

22

218-595

TEE,7/8"-14, 37 Degree

male, at upper lift frame crossover tube

1шт.

22a

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, at upper lift frame crossover tube

1шт.

23

D141678

PIPE

TUBE upper, crossover, at upper lift frame, to rod end of bucket cylinder

1шт.

24

D141676

TUBE

lower, crossover, at upper lift frame, to closed end of bucket cylinder

1шт.

25

D131497

HOSE,12.7mm ID x 725mm L

to rod end of left hand and right hand bucket cylinders and to closed end of left hand bucket cylinder, 725 mm long

3шт.

26

D125995

HOSE,12.7mm ID x 750mm L

to closed end of right hand bucket cylinder, 750 mm long

1шт.

27

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, Incl. Ref 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

29

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY, bucket, right hand, parts list Figure 8-138

1шт.

30

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY, bucket, left hand, parts list Figure 8-138

1шт.

31

D127940

PIPE

TUBE to closed end of right hand bucket cylinder

1шт.

32

D127942

PIPE

TUBE to closed end of left hand bucket cylinder

1шт.

33

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

35

D38648

BLOCK

SPACER rubber, single tube

2шт.

36

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube to cylinder

2шт.

37

D146946

TUBE ASSY.

TUBE to upper bucket port of control valve, use with Ref. 38 tube and Ref. 6 connector to replace one piece tube used in production

1шт.

38

D146944

TUBE ASSY.

TUBE attaches to tube at upper port of control valve, bucket dump, use with Ref. 37 tube and Ref. 6 connector to replace one piece tube used in production

1шт.
