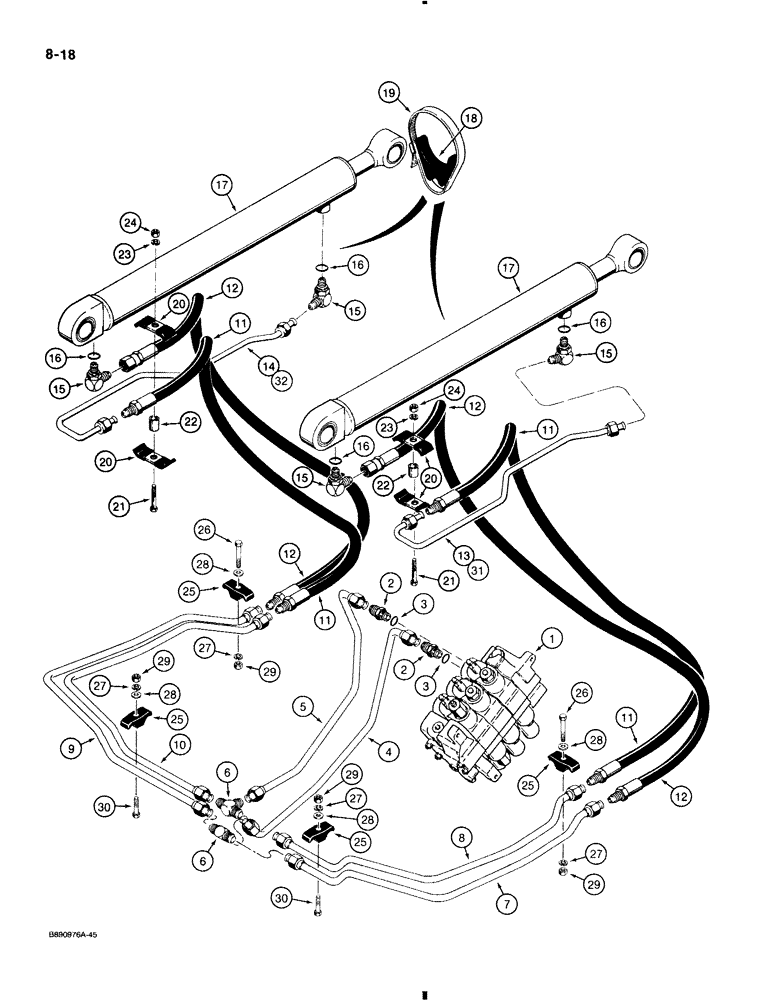

Запчасти Case 580K (8-018) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-84 or 8-86

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D141812

PIPE

TUBE to lower lift port of control valve

1шт.

5

D141810

PIPE

TUBE to upper lift port of control valve

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

male, right-hand to left hand cylinders

2шт.

7

D141818

PIPE

TUBE at tee, to hose at closed end of right hand lift cylinder

1шт.

8

D141820

PIPE

TUBE at tee, to hose at rod end of right hand lift cylinder

1шт.

9

D141822

PIPE

TUBE at tee, to hose at closed end of left hand lift cylinder

1шт.

10

D141824

PIPE

TUBE at tee, to hose at rod end of left hand lift cylinder

1шт.

11

D131496

HOSE,12.7mm ID x 690mm L

to rod end of lift cylinders, 690 mm long

2шт.

12

D131497

HOSE,12.7mm ID x 725mm L

to closed end of lift cylinders, 725 mm long

2шт.

13

D132834

PIPE

TUBE rod end of G108478 or 1980317C1 right hand lift cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

14

D132836

PIPE

TUBE rod end of G108478 or 1980317C1 left hand lift cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY, lift, right hand and left hand, for correct assembly and components, see Figure 8-136

2шт.

18

D38648

BLOCK

SPACER rubber, single tube

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP hose to cylinder

2шт.

20

D143846

CLAMP

- Metal, Hose

4шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

hose clamp, plated

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

D120613

CLAMP,20mm ID

plastic, tube

4шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

495-21044

WASHER,3/8"

4шт.

29

425-106

NUT,3/8"-16, Cl 5

4шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, plated, 3/8"-16 NC x 1-3/4"

2шт.

31

D146261

PIPE

TUBE rod end of 1340976C1 right hand lift cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

32

D146263

PIPE

TUBE rod end of 1340976C1 left hand lift cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.
