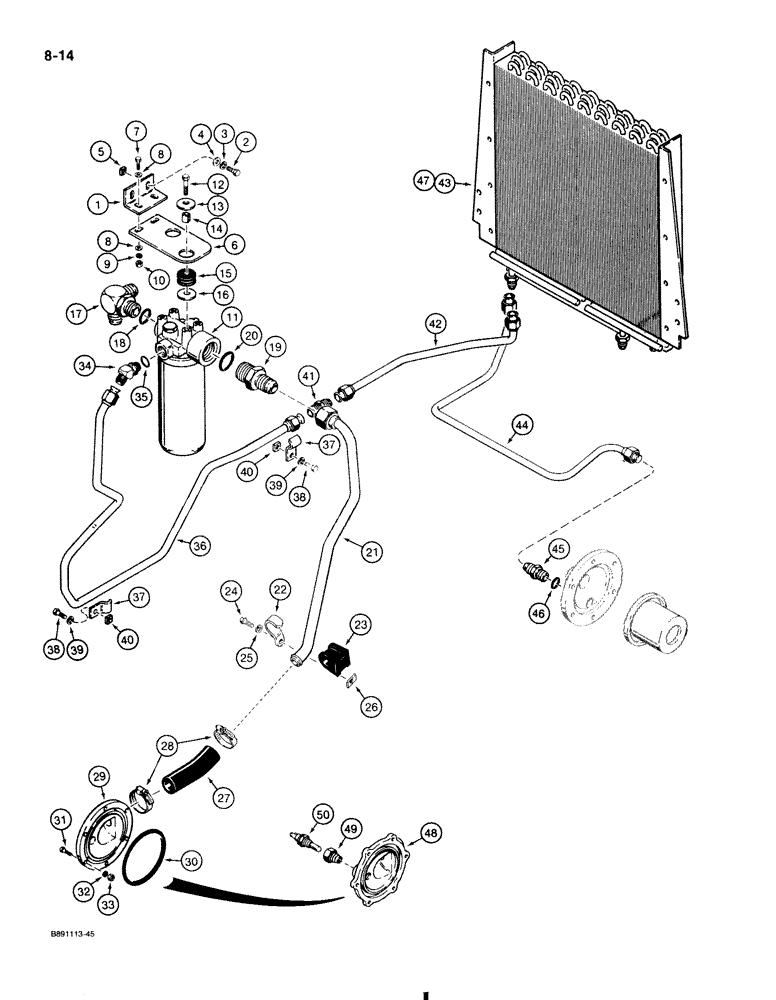

Запчасти Case 580K (8-014) - EQUIPMENT HYD. SYSTEM, OIL COOLER LINES, RETURN LINES, & FILTER (08) - HYDRAULICS

1

D129562

SUPPORT

BRACKET hydraulic oil filter, Serial Range: mounting-chassis

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

2шт.

5

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8" - 16 NC

2шт.

6

D135057

PLATE

hydraulic oil filter mounting

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

2шт.

8

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

2шт.

11

D132933

FILTER ASSY

FILTER ASSEMBLY, hydraulic oil, parts list Figure 8-134

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

2шт.

13

495-81267

WASHER,.469" x 1 1/2" x .134"

flat, 15/32" x 1-1/2" x 1/8"

2шт.

14

D76209

SPACER

filter mounting

2шт.

15

D132895

GROMMET

filter mounting plate

2шт.

16

495-81267

WASHER,.469" x 1 1/2" x .134"

flat, 15/32" x 1-1/2" x 1/8"

2шт.

17

D129566

ELBOW

FITTING elbow, special, three way, backhoe return to filter and loader valve return, Includes Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

19

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, return to tank, Includes Ref. 20

1шт.

20

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

21

D147439

PIPE

TUBE, Serial Range: return-tank

1шт.

22

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

return to tank tube

1шт.

23

D67297

BLOCK

INSULATOR tube

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

D122307

NUT

NUT U-type, 3/8" - 16 NC

1шт.

27

R12351

LARGE HOSE

HOSE return, at tank inlet, 25 ID x 38 OD x 102 mm long

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

29

D125694

FLANGE

reservoir, return

1шт.

30

T53326

O-RING,4.475" ID x 5.025" OD x 0.275"

reservoir return flange

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex head, plated, 1/4" - 20 NC x 1"

6шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

33

425-104

NUT,1/4"-20, Cl 5

6шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, to oil cooler inlet tube, Incl. Ref 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

36

D135275

TUBE

oil filter to cooler inlet tube

1шт.

37

D143430

CLAMP

tube

2шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8" - 16 NC

2шт.

41

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, Includes Ref. 42

1шт.

42

D135277

TUBE

cooler inlet

1шт.

43

A184542

COOLER, OIL

COOLER oil, power shuttle and equipment hydraulic oil, see Figure 6-4 for oil cooler mounting hardware

1шт.

44

D147488

PIPE

TUBE cooler, Serial Range: return-reservoir

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, at reservoir inlet flange

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

47

A184190

COOLER

oil, heavy duty, power shuttle and equipment hydraulic oil, see Figure 6-5 for oil cooler mounting hardware, Replaces: Ref. 43 cooler on models with auxiliary hydraulics

1шт.

48

D139268

SHOULDER

FLANGE return, Replaces: Ref. 29 flange on models with auxiliary hydraulics

1шт.

49

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

1/2" x 1/4" NPT

1шт.

50

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

oil temperature

1шт.
