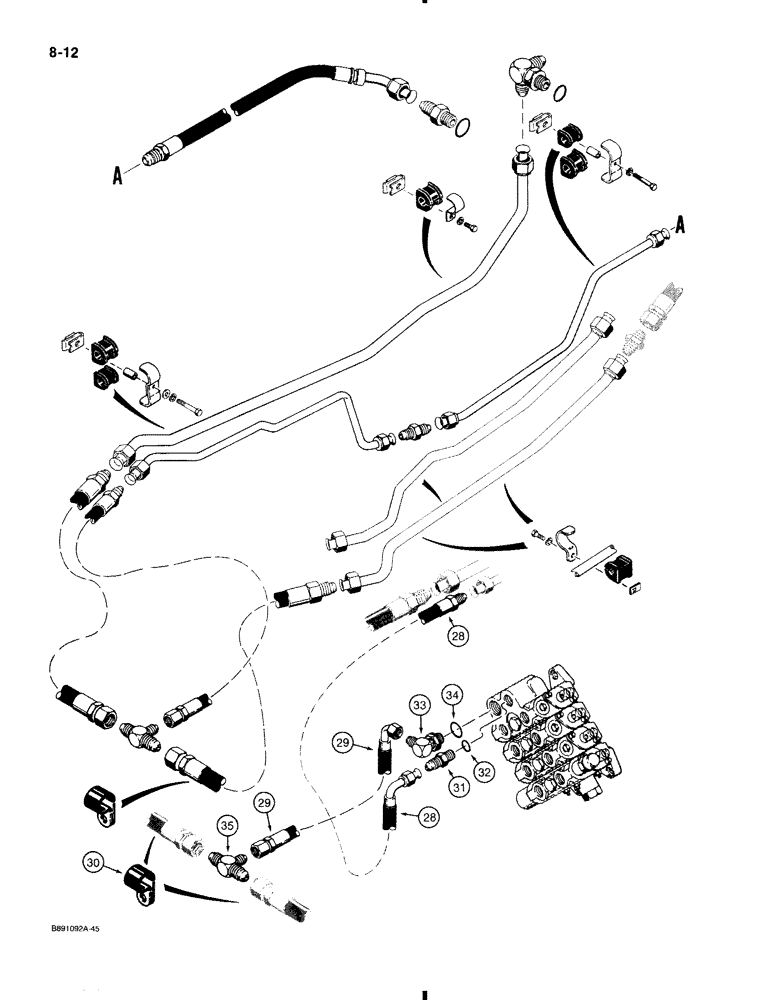

Запчасти Case 580K (8-012) - EQUIPMENT HYD. SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES W/O BACKHOE - LOADER ONLY (08) - HYDRAULICS

28

D141266

HOSE

pressure, to hitch valve inlet, upper port, 37-7/16", 950 mm long

1шт.

29

D141265

HOSE ASSY.

HOSE return from hitch valve outlet, lower port, 33-1/2", 850 mm long

1шт.

30

D40471

CLAMP

uses existing transaxle housing cover hardware

2шт.

31

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, at hitch valve inlet port, upper, Incl. Ref. 32 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, at hitch valve return port, lower, Incl. Ref. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

35

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male, hose

1шт.
