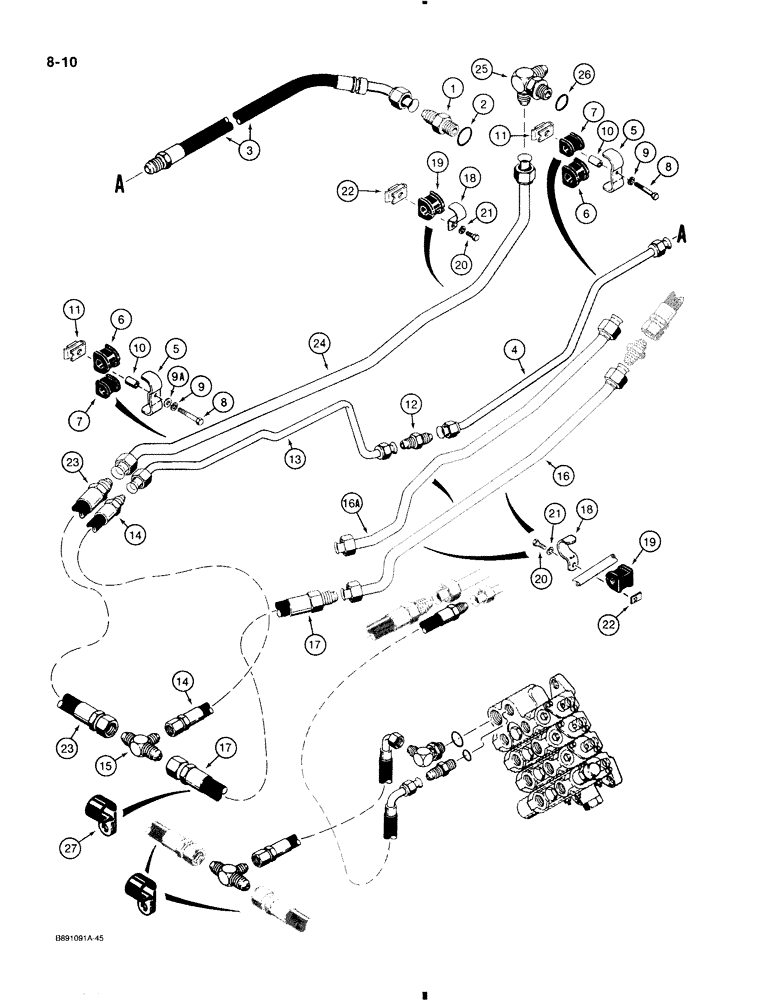

Запчасти Case 580K (8-010) - EQUIPMENT HYD. SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES W/O BACKHOE - LOADER ONLY (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, small pump section outlet port, Includes Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

3

D140802

HOSE

small pump section outlet port, 513 mm long

1шт.

4

D140787

PIPE

TUBE small pump section hose to small pressure hose, lower left hand side of chassis

1шт.

5

D143422

SHIN

CLAMP double tube

2шт.

6

D67297

BLOCK

INSULATOR 1"

2шт.

7

D143797

SHOCK ABSORBER

INSULATOR 5/8"

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

9a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8"

1шт.

10

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

2шт.

11

D122307

NUT

NUT U-type, 3/8" - 16 NC

2шт.

12

218-744

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight

1шт.

13

D142814

TUBE

small pump pressure section tube to hose, lower left hand side of chassis

1шт.

14

D137628

HOSE

small pump pressure section tube to return tee, 26-19/32", 675 mm, used on models with rear counterweight, not used on models with three point hitch, for models with three point hitch see Ref. 28 and 29 on Figure 8-12

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

15

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

16

D145239

TUBE

used with loader valve power beyond hose, Ref. 51 on Figure 8-4, right hand side of chassis, if used

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

16a

D148785

TUBE

used with loader valve power beyond hose, Ref. 51 on Figure 8-4, right hand side of chassis, if used

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

17

D136966

HOSE

to tee, right hand side of chassis, 800 mm long

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

18

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

3шт.

19

D67297

BLOCK

INSULATOR tube, 1"

3шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

D122307

NUT

NUT U-type, 3/8" - 16 NC

3шт.

23

U243289

GAUGE

tee to return filter tube, 24-5/8", 625 mm long

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

24

D147111

TUBE

, Serial Range: return-filter

1шт.

See Fig. 8-6 for rear hydraulic tubes used on models with or without demountable backhoe.

1шт.

25

D129566

ELBOW

FITTING elbow, special, three way, at hydraulic oil filter, Includes Ref. 26

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

27

D34163

CLAMP

hose, uses existing transazle hardware

1шт.
