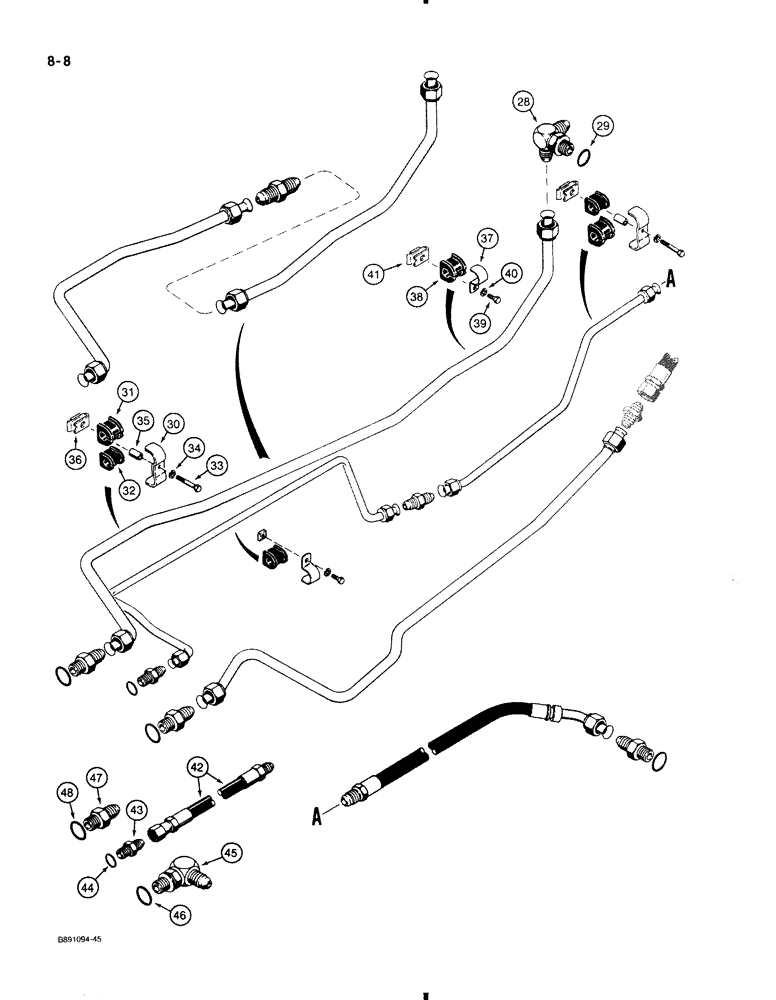

Запчасти Case 580K (8-008) - EQUIP HYD SYS,PUMP TO RR LINES W/ BCKHOE,*SPEC PARTS USED ON STD/EXTNDBL DIPPR MOD W/ DEMOUNT BCKHOE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
28
D129566
ELBOW
FITTING elbow, special, three way, at hydraulic oil filter, Includes Ref. 29
1шт.
33
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
hex, plated, 3/8"-16 NC x 1-3/4"
1шт.
37
D143410
CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type
return to filter tube, 1"
1шт.
39
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
hex head, plated, 3/8" - 16 NC x 1"
1шт.
SPECIAL PARTS USED ON STANDARD OR EXTENDABLE DIPPER MODELS WITH DEMOUNTABLE BACKHOE
1шт.
42
D136967
HOSE
small pump pressure section tube to backhoe valve swing section, 925 mm long, attaches to D142814 tube, Ref. 13, on Figure 8-10
1шт.
43
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
ADAPTER straight, swing section, Includes Ref. 44
1шт.
45
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
90º, adjustable, at backhoe valve inlet, attaches to D136966 hose, Ref. 17, on Figure 8-10, Incl. Ref. 46
1шт.
47
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter straight, at backhoe valve outlet, attaches to D136968 hose, Ref. 23, on Figure 8-10, Incl. Ref. 48
1шт.
