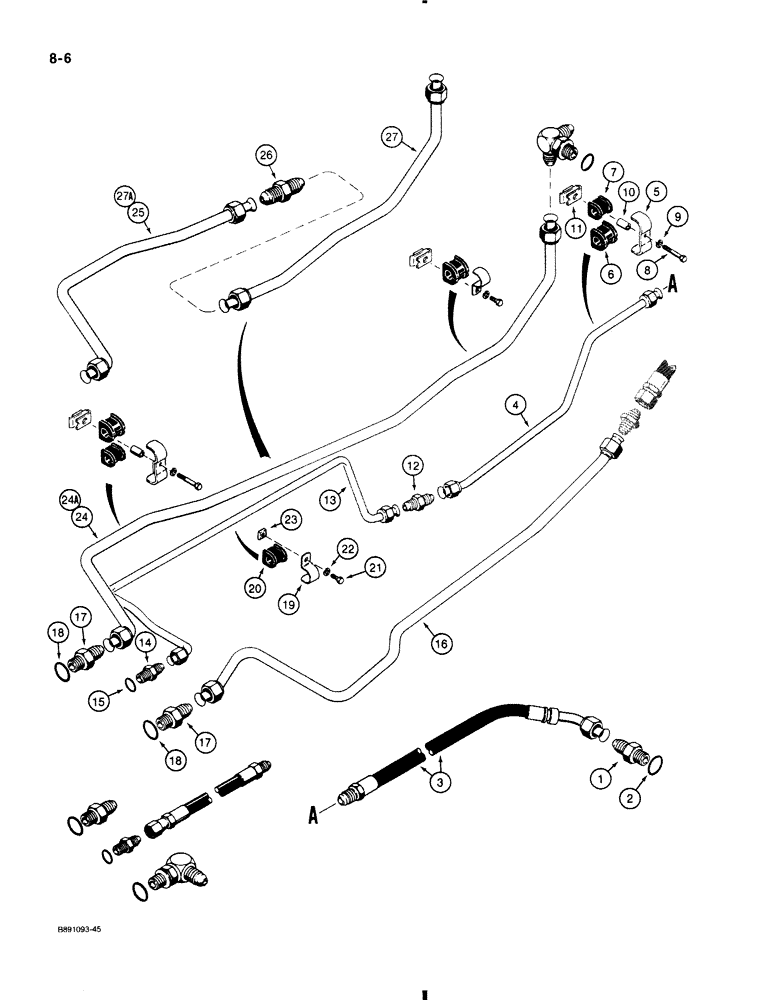

Запчасти Case 580K (8-006) - EQUIPMENT HYD. SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES - W/ BACKHOE (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, small pump section outlet port, Includes Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

3

D140802

HOSE

small pump section outlet port, 513 mm long

1шт.

4

D140787

PIPE

TUBE small pump section hose to backhoe swing section inlet tube

1шт.

5

D143422

SHIN

CLAMP double tube, small pump section tube to loader valve inlet tube

1шт.

6

D67297

BLOCK

INSULATOR for loader valve inlet tube, 1"

1шт.

7

D143797

SHOCK ABSORBER

INSULATOR small pump section backhoe tube, 5/8"

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, plated, 3/8"-16 NC x 1-3/4"

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

11

D122307

NUT

NUT U-type, 3/8" - 16 NC

1шт.

12

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

1шт.

13

D144044

PIPE

TUBE to backhoe control valve swing section inlet

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, Includes Ref. 15

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

16

D147405

TUBE ASSY.

TUBE to backhoe inlet section from loader valve power beyond hose, Ref. 51 on Figure 8-4

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, Incl. Ref. 18

2шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

19

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

backhoe swing section inlet tube

1шт.

20

D143797

SHOCK ABSORBER

INSULATOR 5/8", tube

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8" - 16 NC

1шт.

24

D138908

TUBE

backhoe return to filter, used on models with six spool backhoe valve, one piece tube no longer used, replace with two piece tube design, Ref. 25-27

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

24a

D138914

TUBE

backhoe return to filter, used on models with 7 spool backhoe valve and models with auxlry hyd for optnl rear hyd attchmnts, w/o demountable backhoe, 1 pc tube no longer used, replace w/ 2 pc tube design, Ref.26-27A

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

25

D135540

TUBE

from backhoe valve outlet section to return to filter tube, used with items 26 and 27, replaces one piece tube on some six spool backhoe valve models

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

26

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

27

D135443

TUBE

backhoe, Serial Range: return-filter

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

27a

D135416

TUBE

from backhoe valve outlet section to return to filter tube, used with items 26 and 27, replaces one piece tube on some seven spool backhoe valve models, without demountable backhoe

1шт.

See Fig. 8-10 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.
