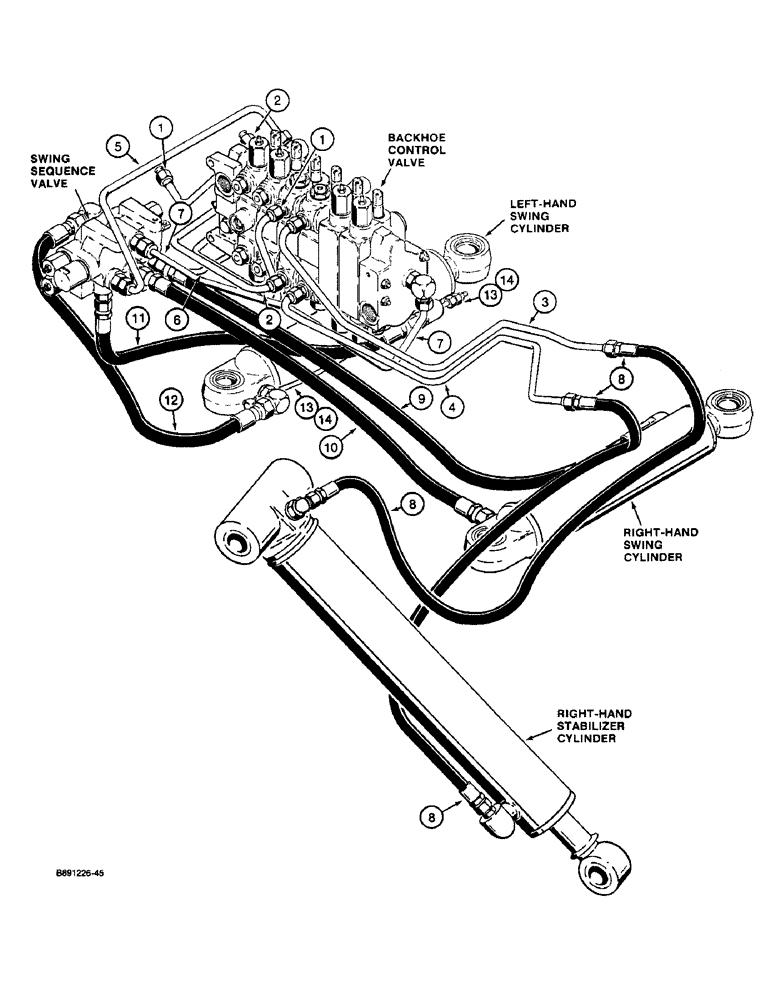

Запчасти Case 580K (1-016) - PIC. INDEX, DEMOUNTABLE & INTEGRAL BACKHOE HYD., STABILIZER CYL., SWING CYL. & SWING SEQUENCE VALVE (00) - PICTORIAL INDEX

1

Tube at upper port of backhoe control valve left hand stabilizer section, Figure 8-30

1шт.

2

Tube at lower port of backhoe control valve left hand stabilizer section, Figure 8-30

1шт.

3

Tube at upper port of backhoe control valve right hand stabilizer, Figure 8-30

1шт.

4

Tube at lower port of backhoe control valve right hand stabilizer, Figure 8-30

1шт.

5

Tube at upper port of backhoe control valve swing section to swing sequence valve, Figure 8-32

1шт.

6

Tube at lower port of backhoe control valve swing section to swing sequence valve lower port, Figure 8-32

1шт.

7

Swing sequence valve drain tube, Figure 8-34

1шт.

8

Hoses at stabilizer cylinders, Figure 8-30

1шт.

9

Hose at swing sequence valve to right hand swing cylinder rod end, Figure 8-32

1шт.

10

Hose at swing sequence valve to right hand swing cylinder closed end, Figure 8-32

1шт.

11

Hose at swing sequence valve to left hand swing cylinder rod end, Figure 8-32

1шт.

12

Hose at swing sequence valve to left hand swing cylinder closed end, Figure 8-32

1шт.

13

Grease tube for right hand swing cylinder, Figure 8-34

1шт.

14

Grease tube for left hand swing cylinder, Figure 8-34

1шт.
