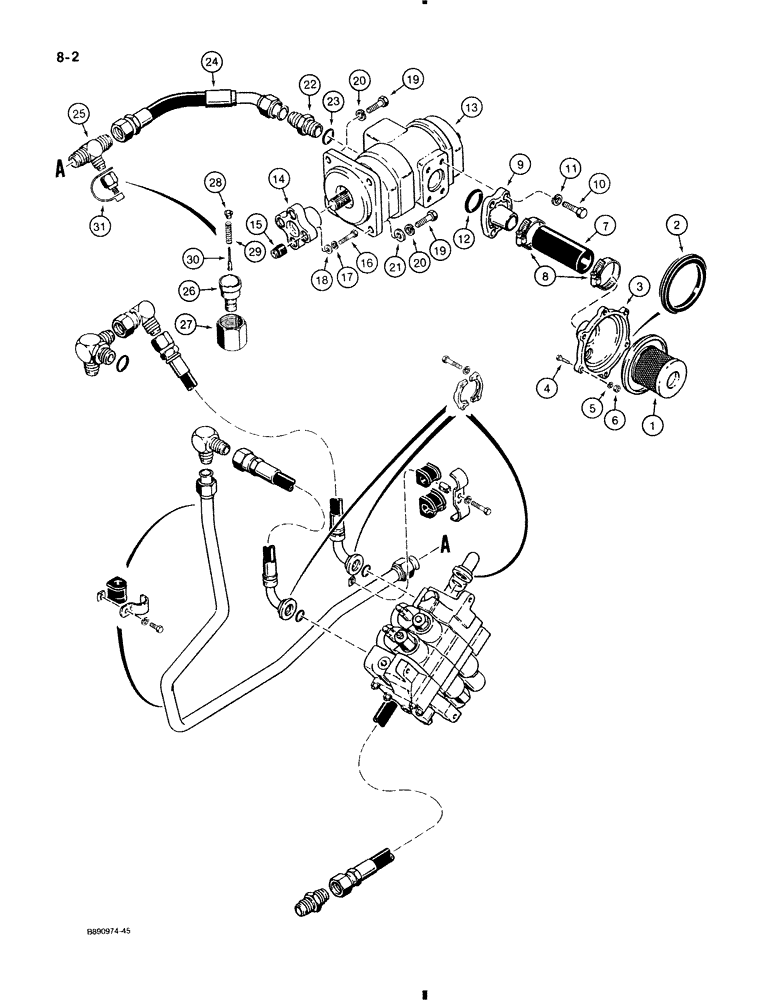

Запчасти Case 580K (8-002) - EQUIPMENT HYD. SYSTEM, RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER & BACKHOE LINE (08) - HYDRAULICS

1

D145017

STRAINER ASSY.

SCREEN suction, Includes Ref. 2

1шт.

2

D145356

SEAL,107.7mm ID x 125.48mm OD x 13.72mm Thk

SEAL suction screen

1шт.

3

D129581

FLANGE

reservoir, suction

1шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex head, plated, 1/4" - 20 NC x 1"

6шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

425-104

NUT,1/4"-20, Cl 5

6шт.

7

D129580

HOSE

equipment pump inlet, 38 ID x 54 OD x 130 mm long, 1.5" ID x 2.12"

1шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

9

D137343

FLANGE

pump inlet

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

pump inlet flange, 1-7/8"

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY, hydraulic, equipment, for correct assembly and components, see Figure 8-80

1шт.

D136083

COUPLING

flex, hydraulic pump, Includes Ref. 14-15

1шт.

14

NSS

NOT SOLD SEPARAT

COUPLING pump

1шт.

15

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

coupling

4шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

17

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flat, hardened

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

D78732

WASHER

flat, hardened, lower mounting bolts only, 1/2"

2шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, large pump section outlet port, Incl. Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

24

D140803

HOSE,19.05mm ID x 445mm L

445 mm long, large pump section outlet port

1шт.

25

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male, pump outlet hose to loader valve inlet tube

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING Assy, quick disconnect, Includes Ref. 26-30

1шт.

The mating female part for checking pressures is P/N 213165 and must be ordered from Service Tools.

1шт.

26

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

27

129-132

NUT,1 1/4"-12, G5

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

31

H434163

DUST CAP

CAP - dust, coupling

1шт.
