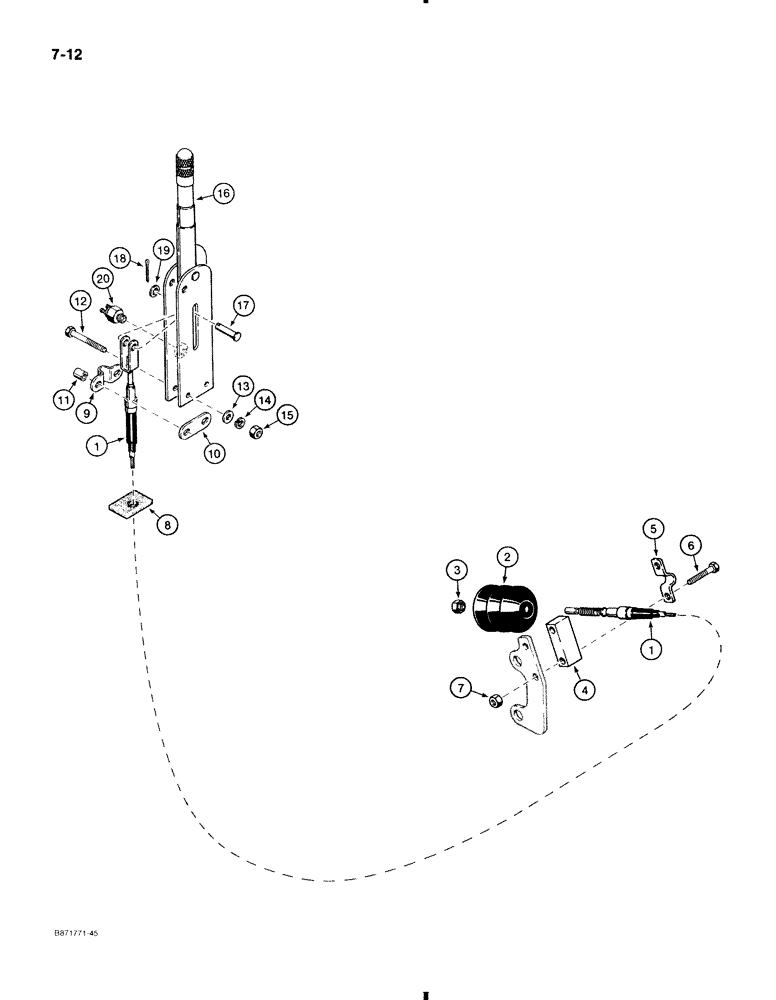

Запчасти Case 580K (7-012) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

1

D144512

CABLE,797.05mm L

parking brake

1шт.

2

D141049

BOOT

parking brake cable

1шт.

3

829-1112

JAM NUT

hex, jam, 12 mm - 1.75

1шт.

4

A188027

SPACER

BLOCK spacer, brake cable mounting, rear

1шт.

5

A188028

CLAMP

cable, rear

1шт.

6

826-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

7

30168R1

NUT,M10, Cl 10

hex, 10 mm - 1.5

2шт.

8

D138158

PAD

foam, floor plate

1шт.

9

D121608

CLAMP

parking brake cable

1шт.

10

D129747

PLATE

oval spacer, plated

1шт.

11

D122882

SPACER

parking brake lever, front

2шт.

12

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

13

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

D121555

LEVER ASSY.

LEVER ASSEMBLY, parking brake, without bossed hole for audible warning alarm parking brake switch, for service order D139909 lever

1шт.

D139909

LEVER ASSY.

LEVER ASSEMBLY, parking brake, with bossed hole for brake switch, replaces D121555 lever for service, Includes Ref. 16-19

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

17

D42458

PIN

clevis, lever to brake cable

1шт.

18

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

20

D136514

SWITCH

parking brake, used on models with audible warning alarm

1шт.

See Figure 4-56 for other special parts used on models with audible warning alarm for water temperature, engine oil pressure, and parking brake.
