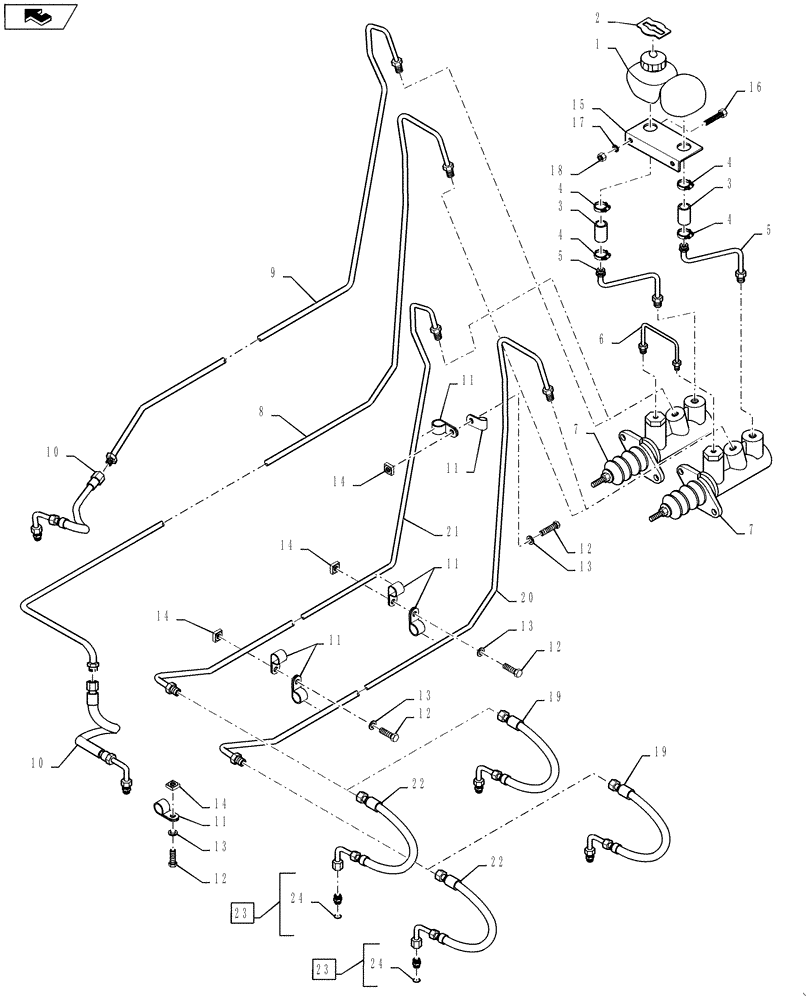

Запчасти Case 580K (7-008) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

E46719

RESERVOIR

ASSEMBLY, brake master cylinder, Incl 1 - 2

1шт.

1

E44082

RESERVOIR

brake master cylinder, includes cap, Replaced by K262942

1шт.

cap for brake reservoir not a repair item.

1шт.

1

K262942

RESERVOIR

1шт.

2

E44062

TAG

reservoir fluid identification

1шт.

3

E44083

HOSE

Reservoir to tube, 13 mm ID x 30 mm long

2шт.

4

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

worm screw, includes hardware, reservoir hose

4шт.

5

D136854

TUBE

reservoir to master cylinder

2шт.

6

D136430

TUBE

crossover

1шт.

7

D143162

MASTER CYLINDER

brake master, parts list Figure 7-10

2шт.

8

D144824

PIPE ASSY.

TUBE brake, RH, transaxle end angled down, use with 221 mm hose

1шт.

9

D144822

PIPE ASSY.

TUBE brake, LH, transaxle end angled down, use with 221 mm hose

1шт.

10

D136431

HOSE

brake tube to transaxle brake actuator, 221 mm long

2шт.

11

49859

CLAMP

P-type

8шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

492-11031

LOCK WASHER,5/16"

4шт.

14

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

4шт.

15

D135229

BRACKET

brake reservoir support, Serial Range: attaches-firewall

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

D146730

HOSE

brake tube to transaxle brake actuator, 385 mm long, male 1/2-20 swivel fitting at transaxle, no longer available, for service order 22, 23

2шт.

20

D146723

PIPE ASSY.

TUBE brake, RH, transaxle end horizontal, use with 385 mm hose

1шт.

21

D146725

PIPE ASSY.

TUBE brake, LH, transaxle end horizontal, use with 385 mm hose

1шт.

D103821

KIT

service, brake line, one kit services one side, Incl 22 - 23, no longer available, for service order 22, 23

2шт.

22

D147572

HOSE,6.35mm ID x 385mm L

brake tube to transaxle brake actuator, 385 mm long, female 7/16-20 flare fitting at transaxle

2шт.

23

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

ADAPTER straight, Incl 24

2шт.

24

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.
