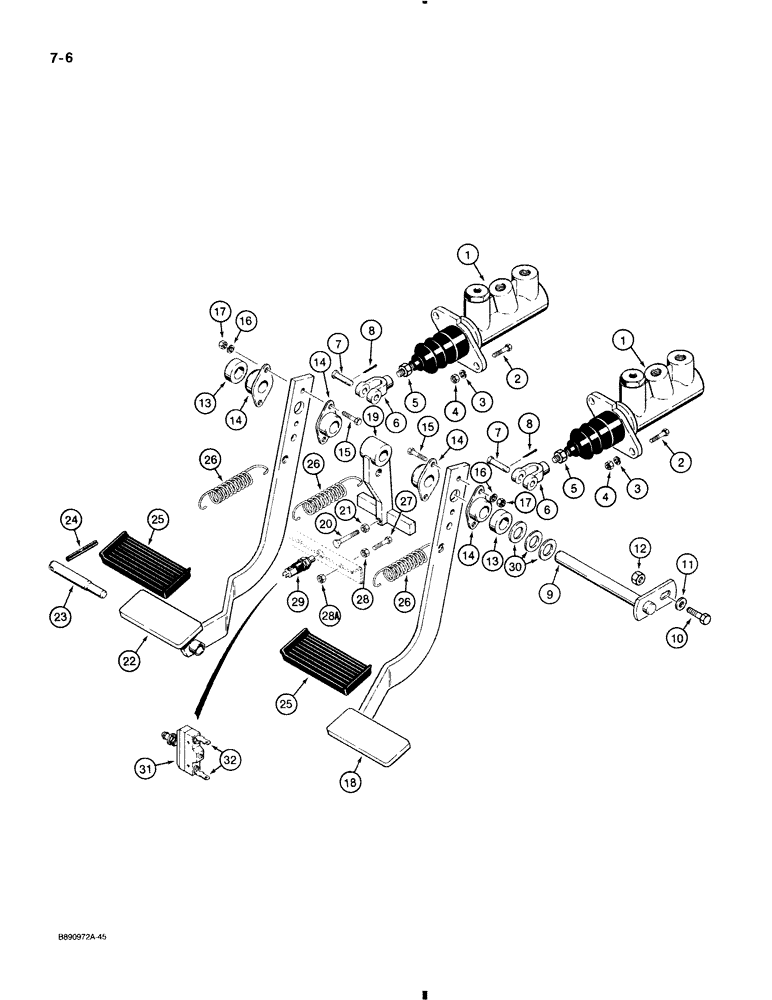

Запчасти Case 580K (7-006) - BRAKE PEDALS AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

1

D143162

MASTER CYLINDER

CYLINDER ASSEMBLY, brake master, parts list Figure 7-10

2шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

4шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" - 24 NF

2шт.

6

D137077

CLEVIS

female, master cylinder

2шт.

7

L26209

PIN,11.07mm OD x 39.75mm L

clevis, 3/8"

2шт.

8

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

9

D140035

SHAFT,180mm L

Brake pedal

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

1шт.

12

131-217

LOCK NUT

NUT light hex, self locking, plated, 3/8" - 16 NC

1шт.

13

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

pedal

2шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

brake pedal

4шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, plated, 5/16" - 18 NC x 1-1/2"

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

4шт.

18

D124521

PEDAL

brake, right hand

1шт.

19

D124528

LEVER

brake lamp

1шт.

20

121-140

FLANGE BOLT,Elevator, Flat Csk, 5/16" - 18 x 2"

BOLT flat countersunk head, special, brake switch actuator, 5/16 NC x 2", grade 2

1шт.

21

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

1шт.

22

D124522

PEDAL

brake, left hand

1шт.

23

D124530

PIN,15.85mm OD x 111mm L

pedal lock

1шт.

24

138-328

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

25

F9197

PAD

COVER pedal, rubber

2шт.

26

D120911

SPRING

pedal and lever return, attaches to brake pedal spring rod in firewall frame

3шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, plated, attaches to brake pedal stop bar in firewall frame, 5/16" - 18 NC x 1-1/2"

2шт.

28

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

28a

425-105

NUT,5/16"-18, G5

hex, 5/16" NC

2шт.

29

D128886

SWITCH

brake lamp, attaches to front console wiring harness, mounts in brake pedal stop bar in firewall frame, no longer available, order D149365 brake swith kit, Ref. 31, 32

1шт.

30

195-2191

WASHER,13/16" x 1 1/2" x .067", HDN

flat, use as a shim, 13/16" x 1-1/2" x 1/16"

1шт.

D149365

brake switch, includes instructions

1шт.

31

D148108

SWITCH

brake lamp, attaches to front console wiring harness, mounts in brake pedal, stop bar in firewall frame

1шт.

32

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

2шт.
