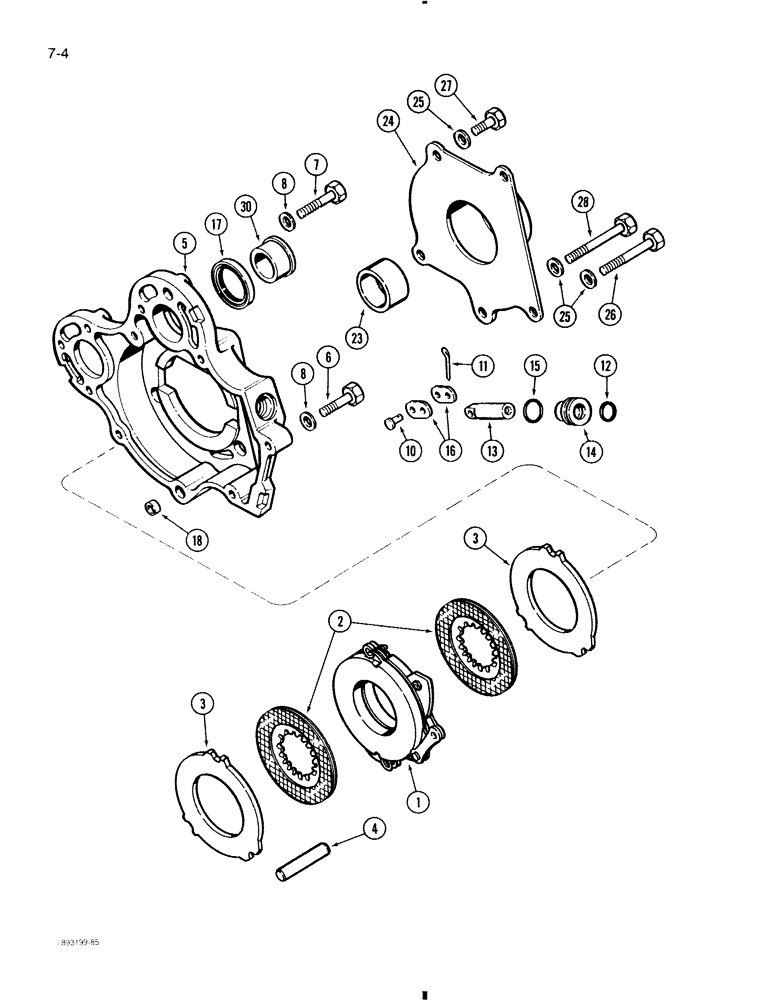

Запчасти Case 580K (7-004) - PARKING BRAKE (07) - BRAKES

1

A158090

BRAKE ASSY.

BRAKE ASSEMBLY, parking

1шт.

2

1341170C1

BRAKE DISC

PLATE friction

2шт.

3

A178856

BACK PLATE

PLATE backing

2шт.

4

A183228

PIN

brake locating

3шт.

5

A188025

HOUSING

brake

1шт.

6

826-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

hex, 12 mm - 1.75 x 50 mm

5шт.

7

826-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

hex, 12 mm - 1.75 x 60 mm

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

A182413

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

11/16" ID x 7/8" x 3/32"

1шт.

13

A190100

SHAFT

brake actuator

1шт.

14

A190099

PLUG

brake actuator, Includes Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64" ID x 7/8"

1шт.

16

A186973

LINK

parking brake

2шт.

17

A158371

OIL SEAL,50.72mm ID x 66.77mm OD x 8.33mm Thk

oil, input shaft

1шт.

18

A188330

SLEEVE

dowel

2шт.

23

REF

INSTRUCTION

SPACER pinion shaft, MFD Tractor, see Figure 6-68

1шт.

23

A175476

SPACER

pinion shaft, 2 wheel drive, shown

1шт.

24

A188960

COVER ASSY

COVER parking brake, 2 wheel drive

1шт.

25

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2 wheel drive M13.5 x 24 x 2.5

5шт.

26

826-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

hex, 12 mm - 1.75 x 90 mm, Grade 10.9, 2 wheel drive

3шт.

27

826-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, 12 mm - 1.75 x 35 mm, 2 wheel drive

1шт.

28

826-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

hex, 12 mm - 1.75 x 100 mm, 2 wheel drive

1шт.

30

A188506

PLUG

input shaft

1шт.
