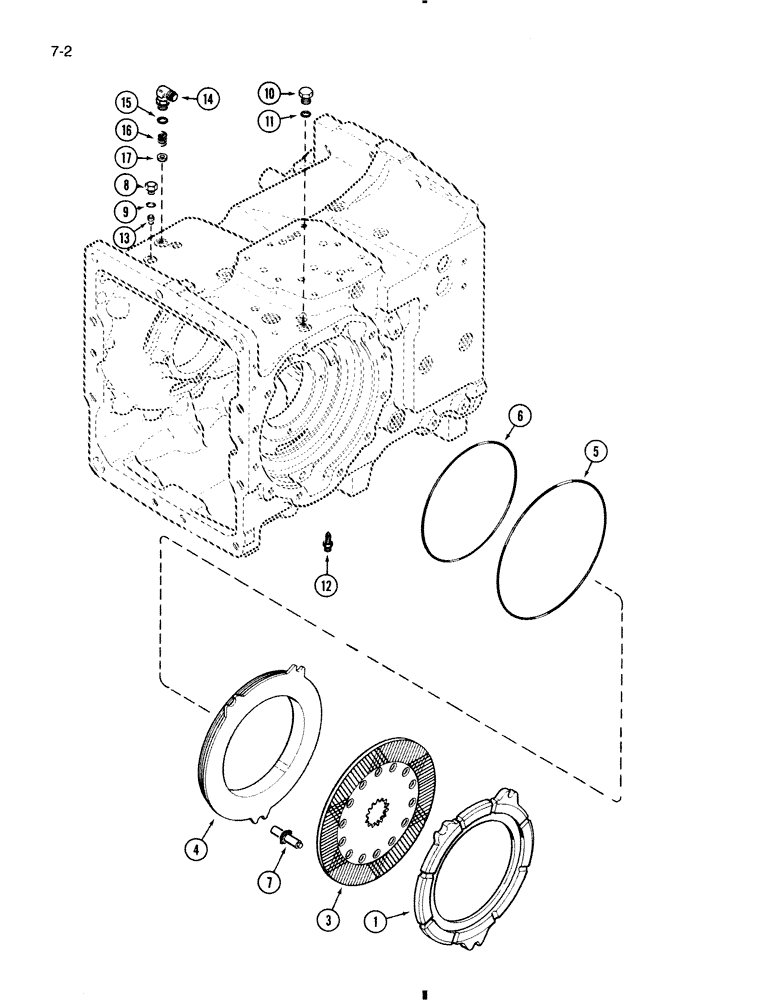

Запчасти Case 580K (7-002) - DIFFERENTIAL BRAKE (07) - BRAKES

1

A188686

PLATE

backing, brake

2шт.

3

A188412

PLATE

friction, brake

2шт.

4

1341069C1

PISTON

brake

2шт.

Order P/N 1995361C1 for CE/ Utility machines, refer to service bulletin NLB SB 020 92 in "additional info".

1шт.

5

A178873

O-RING,292.71" ID x 3.63"

brake piston, large

2шт.

6

A178874

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

brake piston, small

2шт.

7

A190294

DOWEL

TUBE ASSEMBLY, brake adjuster

6шт.

8

87035062

PLUG,Hex, 1/2"-20 ORB

Includes Ref. 9 Hex Soc, 1/2"-20 ORB

2шт.

10

214389

PLUG,3/4" - 16 ORB

Assy, 1/2" tube, Includes Ref. 11 Hex Hd, 3/4"-16 ORB

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

A188637

BLEEDER

VALVE brake bleeder

4шт.

13

A188369

INSERT

brake line

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adj., 3/4-16" flare x O-ring boss, Includes Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

A178977

SPRING

orifice washer

1шт.

17

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER hardened drive link

1шт.

9

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16" OD tube

1шт.
