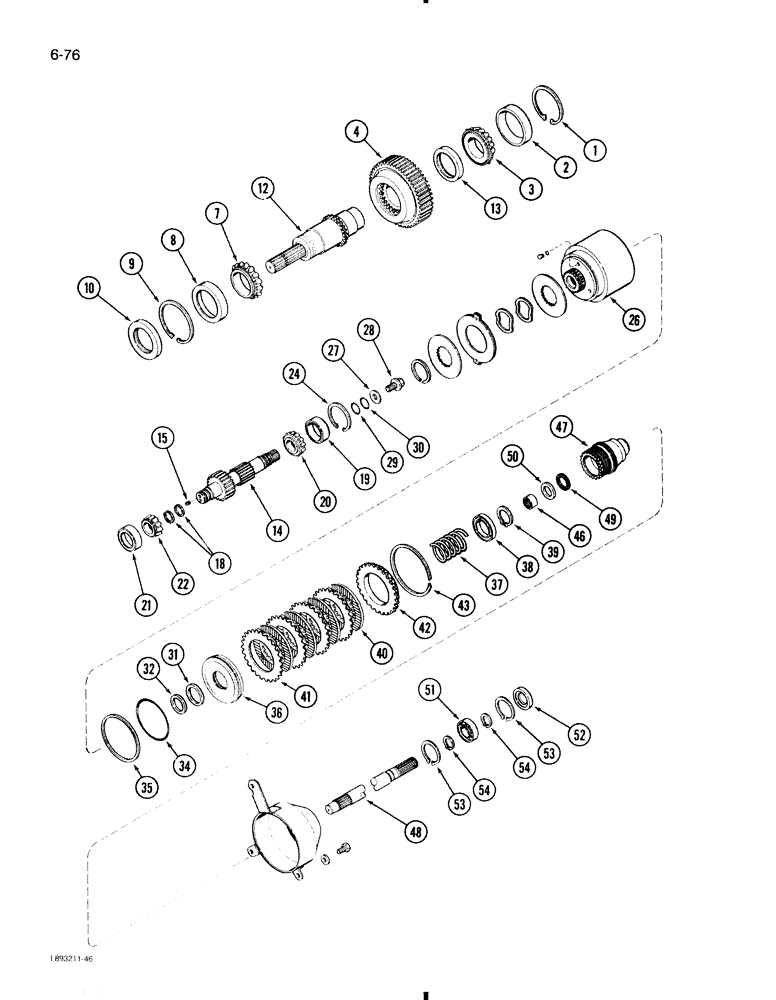

Запчасти Case 580K (6-076) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

A152252

RING

snap, output shimming

1шт.

1

A178243

RING, SNAP

RING snap, output shimming

1шт.

1

A178036

SNAP RING,3.875", Int, #387

Ring, Snap, , output shimming 3.875", Int, #387

1шт.

2

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP bearing, output shaft front

1шт.

3

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE tapered roller bearing, output shaft front

1шт.

4

A188934

SPROCKET ASSY.

GEAR driven

1шт.

7

A30044

ROLLER BEARING

CONE bearing, output shaft rear

1шт.

8

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP bearing, output shaft rear

1шт.

9

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , output shaft rear 4.331", Int, #433

1шт.

10

A175136

OIL SEAL,66.63mm ID x 111.2mm OD x 11.38mm Thk

oil, output shaft

1шт.

12

A188244

SHAFT

output, PTO

1шт.

13

A190133

SPACER

PTO output gear

1шт.

14

A188681

SHAFT

ASSEMBLY, input, Includes Ref. 15

1шт.

15

178-466

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW set, 7/16" NC x 3/8"

1шт.

18

A188295

SEALING RING,28.48mm ID x 31.8mm OD x 2.38mm Thk

RING sealing, input shaft

2шт.

19

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP bearing, front input shaft

1шт.

20

G15213

ROLLER BEARING

CONE bearing, front input shaft

1шт.

21

A153748

CUP

bearing, rear input shaft

1шт.

22

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE bearing, rear input shaft

1шт.

24

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , front brg shimming 2.75", Int, #275

1шт.

24

A183468

SNAP RING

RING snap, front bearing shimming

1шт.

24

A183469

SNAP RING

RING snap, front bearing shimming

1шт.

26

A188685

HOUSING

clutch

1шт.

27

A175129

WASHER, THRUST

WASHER retainer, clutch hub

1шт.

28

853-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

hex, 12 mm - 1.75 x 25 mm

1шт.

29

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor seal

1шт.

30

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

distributor seal front

1шт.

31

A159296

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

piston, internal

1шт.

32

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL piston, internal

1шт.

34

A158050

O-RING,108 mm ID x 2.692 mm

piston, external

1шт.

35

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, external

1шт.

36

A159292

PISTON

clutch

1шт.

37

A183508

SPRING

PTO piston return

1шт.

38

A183436

RETAINER,45.25mm ID x 65.45mm OD x 5mm Thk

spring

1шт.

39

D25280

SNAP RING,#175, Ext

Ring, Snap, , planet gear #175, Ext

1шт.

40

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE clutch, friction

4шт.

41

A175806

PLATE

clutch, separator

4шт.

42

A178020

PLATE

clutch, backing

1шт.

43

A158227

CIRCLIP

RING snap, reaction plate retaining

1шт.

46

A175839

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

BEARING input shaft

1шт.

47

A188600

YOKE

inner hub

1шт.

48

A188245

SHAFT

PTO rear input

1шт.

49

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING rear input shaft

1шт.

50

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

BEARING race, needle

1шт.

51

A158333

BEARING, BALL,30 mm ID x 55 mm OD x 13 mm

BEARING ball

1шт.

52

A186767

OIL SEAL

PTO input shaft oil

1шт.

53

452166R1

SNAP RING,2.165", Int, #216

Ring, Snap, , PTO input shaft 2.165", Int, #216

2шт.

54

A8218

SNAP RING,#118, Ext

Ring, Snap, , idler gear and bearing #118, Ext

2шт.
