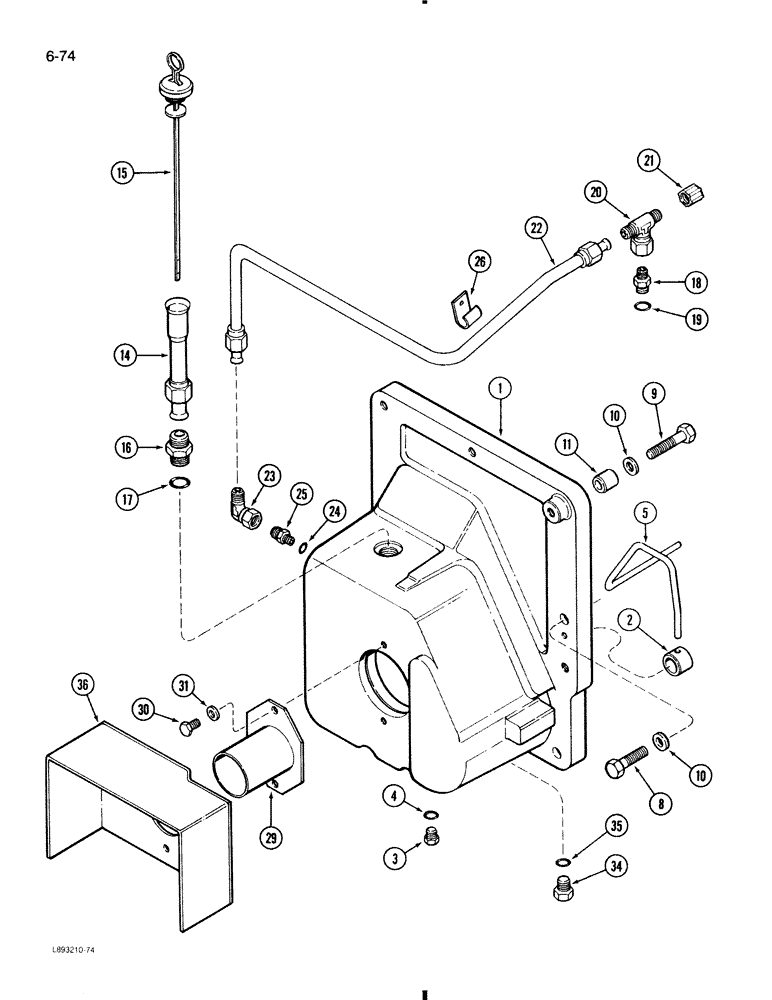

Запчасти Case 580K (6-074) - PTO HOUSING (06) - POWER TRAIN

A188246

HOUSING

ASSEMBLY, PTO pressed, Includes Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING PTO, order assembly

1шт.

2

A188621

SLEEVE

seal, input shaft

1шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 4 Hex Hd, 9/16"-18 ORB

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE PTO clutch pressure

1шт.

8

826-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

7шт.

9

826-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat, hardened, 5/8"

9шт.

11

A175769

DOWEL

PTO housing to transaxle housing

2шт.

14

A183270

TUBE

ASSEMBLY, dipstick

1шт.

15

A183273

DIPSTICK

and PTO breather

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12" flare x O-ring boss, Incl. Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64" ID x 7/8" wide

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 19 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

swivel

1шт.

21

353-109

CAP,3/4"-16

LUG 3/4" NF

1шт.

22

A188874

TUBE

ASSEMBLY, PTO oil supply

1шт.

23

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel, 3/4-16" flared

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER short, 3/4-16 thread x 9/16" thread

1шт.

26

T31034

CLAMP

tube

1шт.

29

A190208

GUARD ASSY.

COVER protective, not used when PTO shield is used

1шт.

30

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, Grade 10.9

2шт.

31

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

34

214389

PLUG,3/4" - 16 ORB

Assy, Includes Ref. 35 Hex Hd, 3/4"-16 ORB

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

D148801

GUARD

SHIELD PTO If equipped

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
