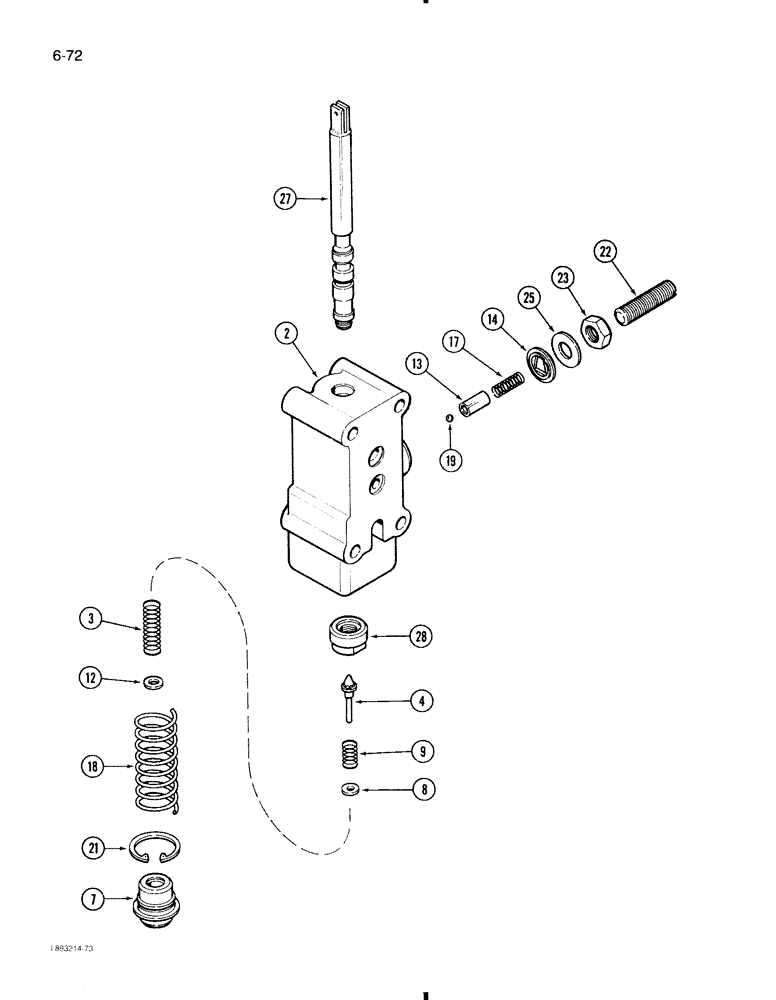

Запчасти Case 580K (6-072) - PTO CONTROL VALVE (06) - POWER TRAIN

1971419C2

VALVE

ASSEMBLY, PTO control, Includes Ref. 2-27

1шт.

2

NSS

NOT SOLD SEPARAT

BODY PTO valve

1шт.

3

G108816

SPRING

primary, modulator

1шт.

4

G108809

VALVE POPPET

POPPET valve

1шт.

7

G108808

CAP

end

1шт.

8

G108810

WASHER

poppet

1шт.

9

G110335

SPRING

modulator

1шт.

12

G108811

WASHER,8mm ID x 14.27mm OD x 1.65mm Thk

poppet

1шт.

This washer fits under Ref. 4, G108809 poppet valve

1шт.

13

G108807

GUIDE

detent

1шт.

14

G109427

SEAL

thread

1шт.

17

G110013

SPRING

detent

1шт.

18

G110342

SPRING

return

1шт.

19

211-206

BALL,1/4" Dia

chrome, meter 1/4" Dia

1шт.

21

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

22

176-392

SET SCREW,9/16"-12 x 2", Slotted

SCREW adjusting

1шт.

23

25-149

NUT,Jam, 9/16"-12, G5

hex jam, 9/16" NC

1шт.

25

195-37

WASHER,9/16"

flat, 19/32" x 1-5/32" x 1/8"

1шт.

27

1957880C3

SPOOL

ASSEMBLY, PTO control, Includes Ref. 28

1шт.

28

1957864C2

STOP

spool

1шт.
