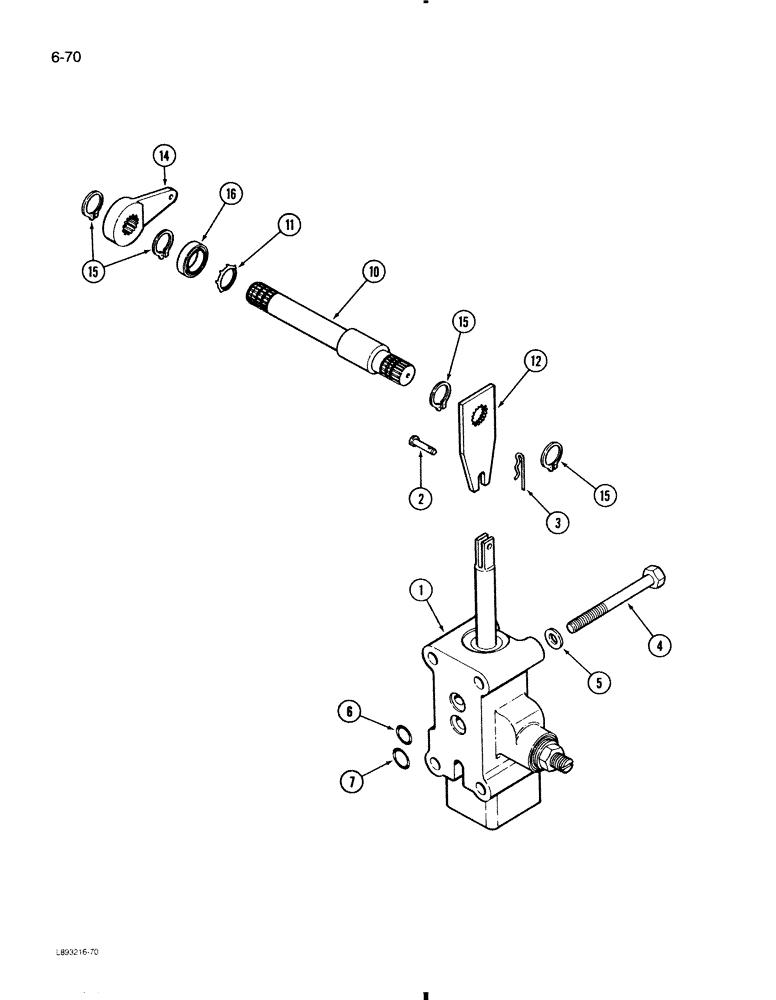

Запчасти Case 580K (6-070) - PTO CONTROL VALVE LINKAGE (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY, PTO control. see Figure 6-72

1шт.

2

H343822

AXLE PIN

PIN clevis, valve spool

1шт.

3

136-101

COTTER PIN,Int, 1/16" x .036"

PIN hair, 7/16 inch internal

1шт.

4

826-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

hex, 10 mm - 1.50 x 90 mm

4шт.

5

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

valve to PTO housing sealing

1шт.

7

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

valve to PTO housing sealing

1шт.

10

A186636

SHAFT

PTO valve linkage

1шт.

11

A186637

RETAINER

linkage shaft

1шт.

12

A186743

CONTROL LEVER

LEVER PTO valve linkage internal

1шт.

14

A188881

LEVER

PTO valve linkage external

1шт.

Replaced on 580K applications by 1345849C1.

1шт.

15

A27521

SNAP RING,#68, Ext

Ring, Snap, , 41/64" ID #68, Ext

4шт.

16

A186635

SEAL,17.89mm ID x 30.03mm OD x 7mm Thk

PTO linkage shaft

1шт.
