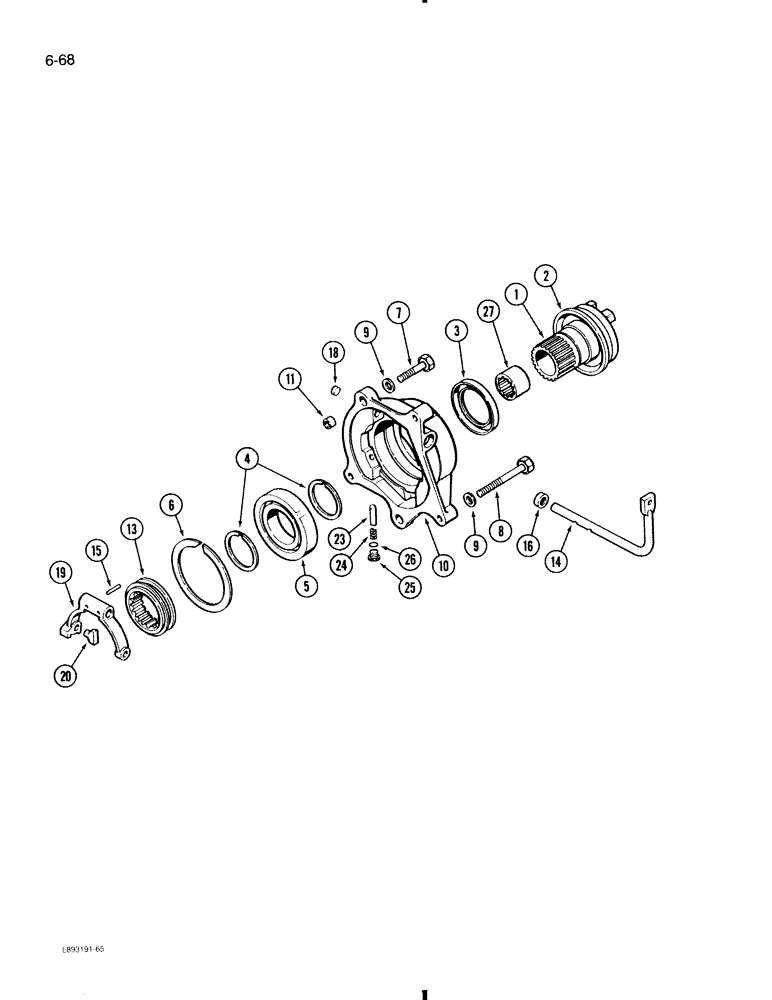

Запчасти Case 580K (6-068) - SHIFT MECHANISM OUTPUT SHAFT MFD (06) - POWER TRAIN

1

A186908

YOKE

mechanical front drive, Includes Ref. 2

1шт.

2

A186906

SLINGER

yoke

1шт.

3

A186909

OIL SEAL,72.95mm ID x 101.88mm OD x 9.91mm Thk

SEAL oil

1шт.

4

A31227

SNAP RING,#275, Ext

Ring, Snap, #275, Ext

2шт.

5

A186910

BEARING, BALL

BEARING ASSEMBLY, ball

1шт.

6

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, 5.00", Int, #500

1шт.

7

826-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

hex, 12 mm - 1.75 x 60 mm

1шт.

8

826-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

hex, 12 mm - 1.75 x 110 mm

4шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

10

A188304

HOUSING

mechanical front drive

1шт.

11

A188330

SLEEVE

dowel

2шт.

13

A175679

GEAR

COLLAR mechanical front drive

1шт.

14

A188333

LEVER

engage, front drive

1шт.

15

138-2067

PIN,3/16" x 1", Coiled

2шт.

16

A178864

OIL SEAL,15.88mm ID x 25.4mm OD x 6.35mm Thk

oil, engagement lever

1шт.

18

41-1010

PLUG,Cup, 5/8"

Cup, 5/8"

1шт.

19

A188334

FORK

front drive engagement

1шт.

20

A188527

FINGER

differential lock collar

2шт.

23

A188074

PIN,9.53mm OD x 39mm L

shift fork

1шт.

24

G47039

SPRING

shift fork pin

1шт.

25

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 26 Hex Soc, 9/16"-18 ORB

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

A175481

SPACER

pinion shaft

1шт.
