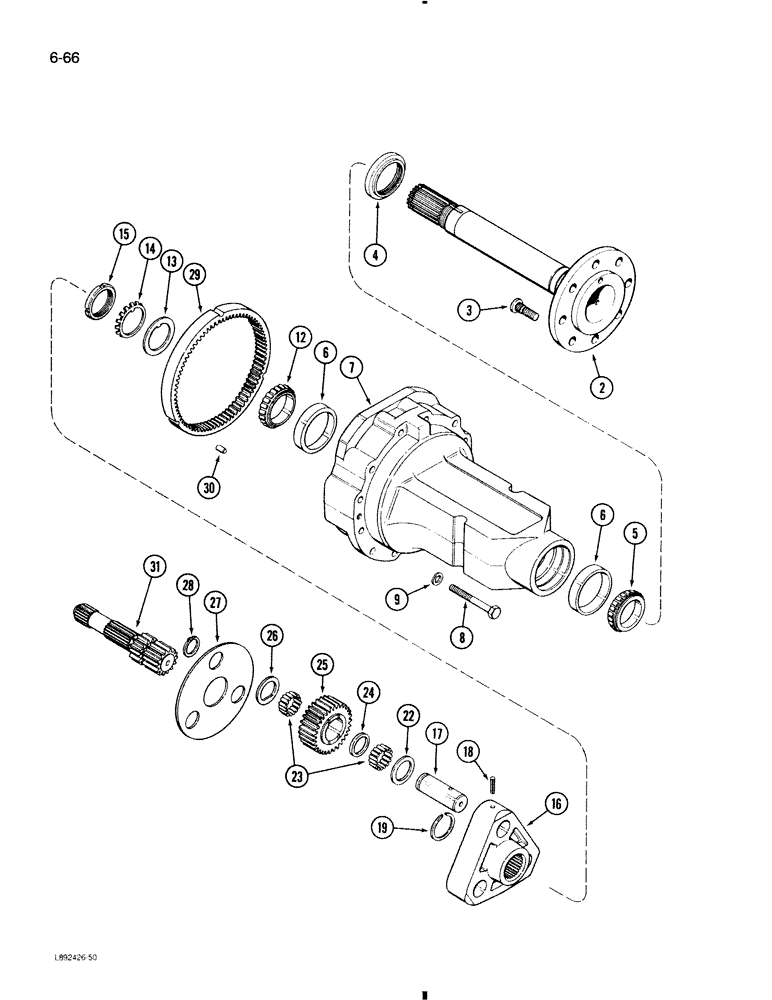

Запчасти Case 580K (6-066) - TRANSAXLE REAR AXLE AND PLANETARY GEARS (06) - POWER TRAIN

A188556

SHAFT

ASSEMBLY, rear axle, subs to 1995094C1, Includes Ref. 2-3

2шт.

2

NSS

NOT SOLD SEPARAT

SHAFT rear axle, order A188556

1шт.

3

3220372R2

STUD,M20 x 1.5 x 58mm, Cl 30

BOLT rear axle

8шт.

4

A183953

OIL SEAL

SEAL axle shaft

2шт.

5

A30044

ROLLER BEARING

CONE bearing

2шт.

6

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP bearing

4шт.

7

A190140

HOUSING

rear axle

2шт.

This rear axle housing is NSS. Order A190130 housing and 2 of 29214H Timken bearing cups.

1шт.

8

826-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

hex, 16 mm - 2.0 x 130 mm

24шт.

9

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

flat, hardened

24шт.

12

T15892

TAPERED BEARING,2.625" ID x 0.866"

CONE bearing

2шт.

13

A175230

WASHER, THRUST

WASHER thrust

2шт.

14

192-364

LOCK WASHER

WASHER lock, bearing retaining

2шт.

15

131-1064

BEARING LOCK NUT

lock, bearing retaining

2шт.

16

A186686

CARRIER

ASSEMBLY, planetary gear, Includes Ref. 17-18

2шт.

17

A186685

PIN

planetary gear carrier

3шт.

18

135-376

GROOVED PIN,3/8" x 1 1/2", Type F

Pin, Grooved, 3/8" x 1 1/2", Type F

3шт.

19

A175241

RING, SNAP

RING snap, rear axle

2шт.

22

A186642

WASHER

planet pin roller

6шт.

23

A178187

ROLLER

BEARING roller

384шт.

24

A178189

SEPARATOR

SPACER roller bearing separator

6шт.

25

A178193

GEAR

planetary, 28 tooth

6шт.

26

A175338

WASHER

D-WASHER planet pin roller

6шт.

27

A186651

DISC

SHIELD planetary gear

2шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

6шт.

29

A175955

GEAR, RING

GEAR planetary ring

2шт.

P/N A175955 Ring Gear cannot be ordered seperately, see figure note.

1шт.

30

A175335

PIN,12.02mm OD x 25mm L

planetary ring gear

6шт.

31

A188558

SHAFT

sun gear, right, shown

1шт.

31

A188559

SHAFT

sun gear, left

1шт.
