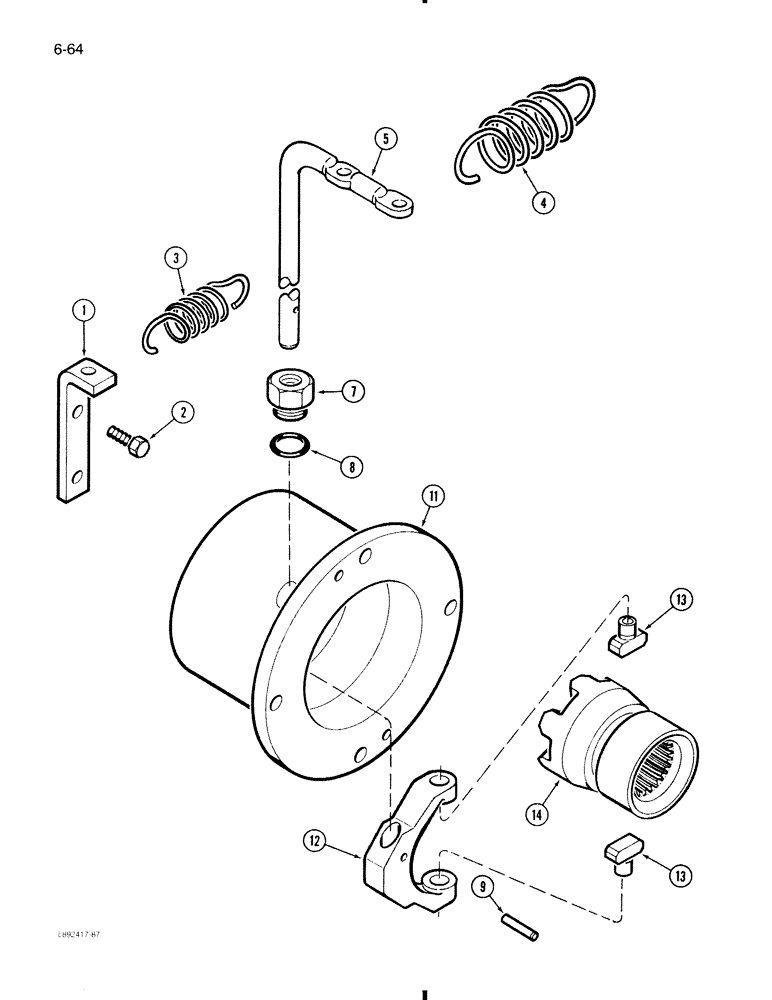

Запчасти Case 580K (6-064) - TRANSAXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A190233

PLATE ASSY.

BRACKET spring anchor

1шт.

2

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

2шт.

3

A183629

SPRING

lock, Serial Range: shaft-bracket

1шт.

4

REF

INSTRUCTION

SPRING clutch pedal return, see Figure 6-30

1шт.

5

A190317

SHAFT

differential lock lever

1шт.

7

A175295

PLUG

adapter, Includes Ref. 8

1шт.

9

138-2067

PIN,3/16" x 1", Coiled

1шт.

11

REF

INSTRUCTION

CARRIER differential bearing, see Figure 6-62

1шт.

12

A190263

FORK

shift

1шт.

13

A190265

SHIFTER FORK,10mm OD x 21mm L

shift fork

2шт.

14

A190264

COLLAR

COLLAR differential lock

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
