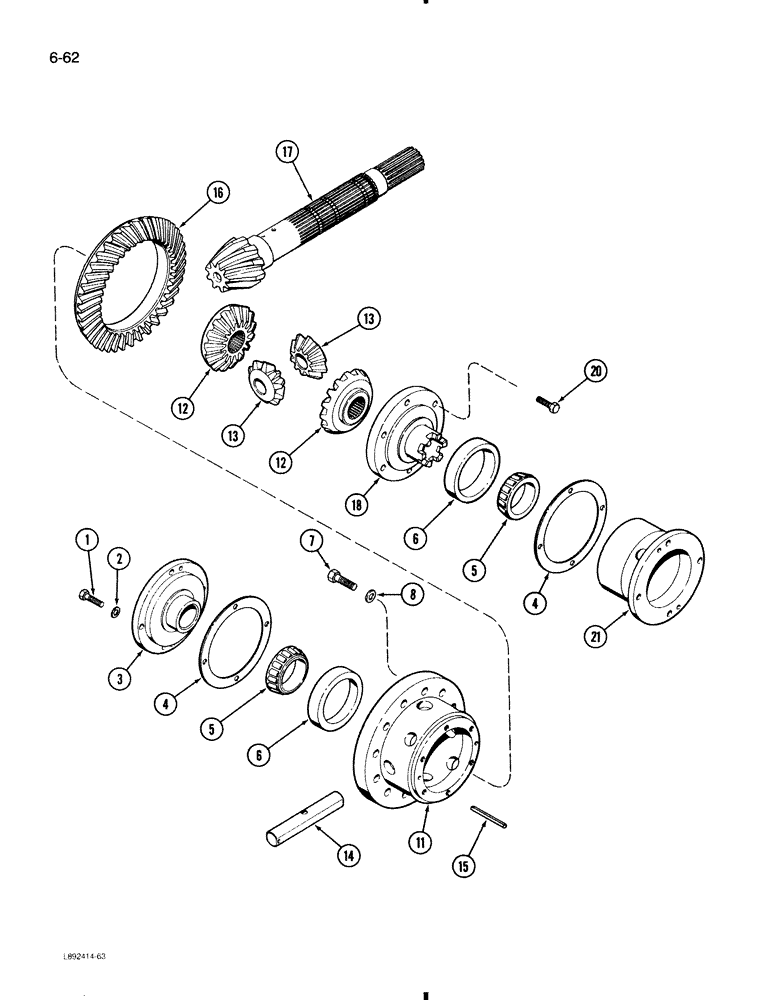

Запчасти Case 580K (6-062) - TRANSAXLE DIFFERENTIAL (06) - POWER TRAIN

1

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

hex, 10 mm - 1.5 x 30 mm

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

hardened

8шт.

3

A175200

CARRIER,180 mm ID x 45 mm OD x 53 mm

bearing, differential, left

1шт.

4

A175236

SHIM,0.08mm Thk

Bearing carrier (0.003") 0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Bearing carrier (0.007") 0.18mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

Bearing carrier (0.010") 0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Bearing carrier (0.025") 0.63mm Thk

1шт.

5

A37160

ROLLER BEARING

CONE bearing

2шт.

6

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP bearing

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

hex, 12 mm - 1.75 x 45 mm

12шт.

8

26273R1

WASHER

flat, 17/32" x 1-1/16" x 1/8"

12шт.

11

A178135

CAGE

CARRIER differential, flanged half

1шт.

12

A186833

GEAR

side, 16 tooth

2шт.

13

A188633

GEAR

pinion, 10 tooth

2шт.

14

A178132

PIN

differential spider

1шт.

15

138-147

LOCK PIN,1/4" x 3 1/4", Slotted

Pin, 1/4" x 3 1/4", Slotted

1шт.

A190010

GEAR, BEVEL

PINION AND RING GEAR matched set, Includes Ref. 16-17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

17

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

18

A186835

CAGE

CARRIER differential half

1шт.

20

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

hex, 10 mm - 1.5 " x 30 mm

6шт.

21

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER bearing, differential, right

1шт.
