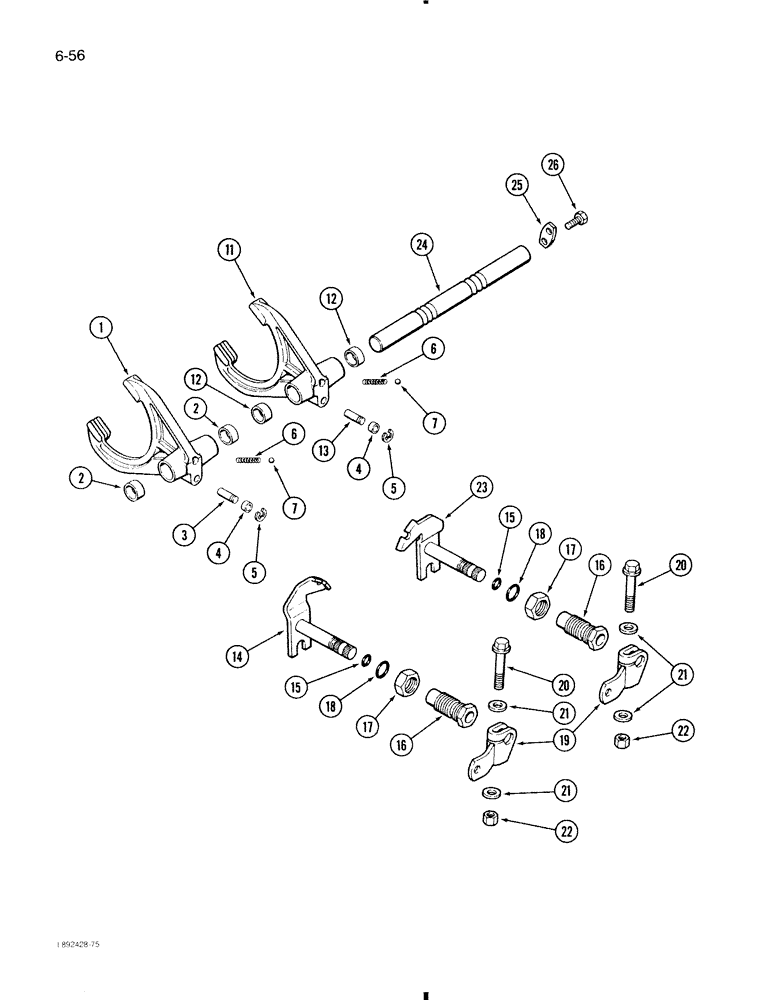

Запчасти Case 580K (6-056) - TRANSAXLE SHIFTER MECHANISM (06) - POWER TRAIN

1

A183009

FORK

ASSEMBLY, gear shift, first and second, Includes: Ref. 2 and 3

1шт.

2

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

shift fork

2шт.

3

A183146

SPLIT PIN/SAFETY PIN

PIN shift fork

1шт.

4

A178954

SLEEVE

shift fork pin

2шт.

5

A183147

SNAP RING,#X43, .375" Dia, E-Type

Ring, Retaining, , shift fork pin #X43, .375" Dia, E-Type

2шт.

6

A175971

SPRING

detent

2шт.

7

211-262

BALL,7/16 Dia

steel

2шт.

11

A183009

FORK

ASSEMBLY, gear shift, third and fourth, Includes: Ref. 12 and 13

1шт.

12

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

shift fork

2шт.

13

A183146

SPLIT PIN/SAFETY PIN

PIN shift fork

1шт.

14

A190285

LEVER

ARM ASSEMBLY, gear shift, first and second

1шт.

15

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

O-RIN, 19/32 x 5/64"

2шт.

16

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

shift mechanism

2шт.

17

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex jam, 1-1/16 inch NC

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

15/16 x 1/8"

2шт.

19

A190270

LEVER

shaft actuating

2шт.

This lever is retained to shifter arms A190285 and A190286 with nuts and bolts. Original style lever A186893 was retained to shifter arms using a snap ring. Snap ring part number was A27521 and the arms were A190015 and A190016.

1шт.

20

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

hex 12 - 1.75 x 70 mm, class 10.9

2шт.

21

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

22

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, Grade 10

2шт.

23

A190286

LEVER

ARM ASSEMBLY, gear shift, third and fourth

1шт.

24

A188348

RAIL

shifter fork

1шт.

25

A178279

SEALING STRIP

PLATE shift rail lock

1шт.

26

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, Grade 10.9

2шт.
