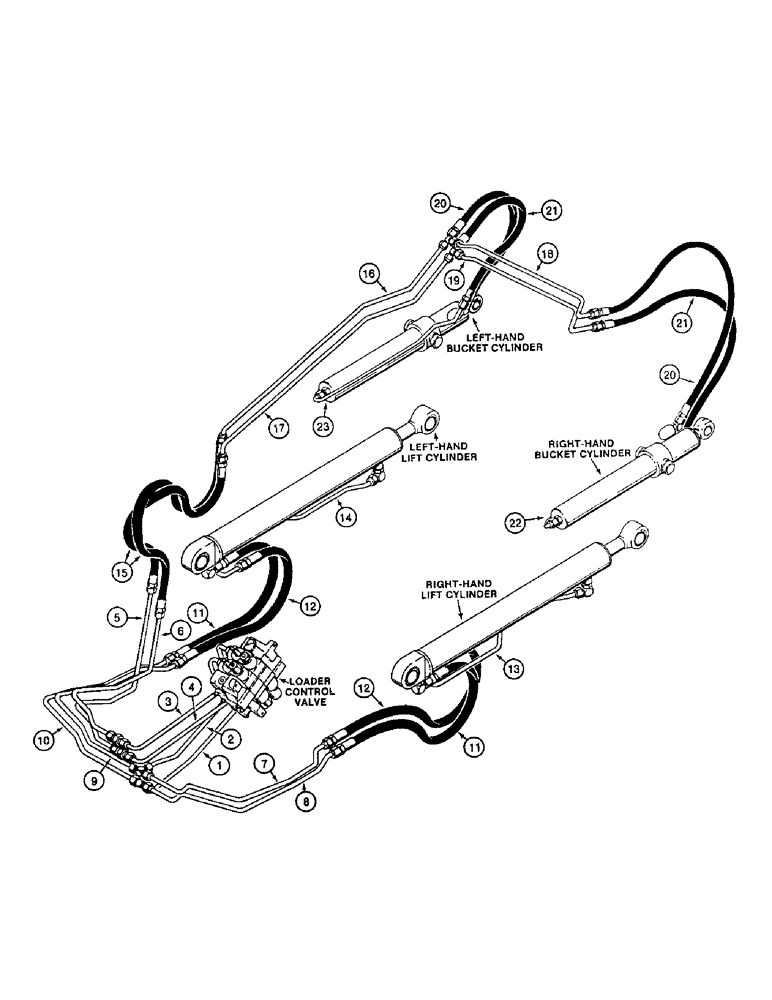

Запчасти Case 580K (1-012) - PICTORIAL INDEX, LOADER HYDRAULICS, LIFT AND BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Tube to lower lift port of loader control valve, Figure 8-18

1шт.

2

Tube to upper lift port of loader control valve, Figure 8-18

1шт.

3

Tube to upper bucket port of loader control valve, Figure 8-20

1шт.

4

Tube to lower bucket port of loader control valve, Figure 8-20

1шт.

5

Bucket dump tube, attaches to tube at lower port of loader control valve, Figure 8-20

1шт.

6

Bucket rollback tube, attaches to tube at upper port of loader control valve, Figure 8-20

1шт.

7

Tube to hose at rod end of right hand lift cylinder, Figure 8-18

1шт.

8

Tube to hose at closed end of right hand lift cylinder, Figure 8-18

1шт.

9

Tube to hose at rod end of left hand lift cylinder, Figure 8-18

1шт.

10

Tube to hose at closed end of left hand cylinder, Figure 8-18

1шт.

11

Hose at closed end of lift cylinder, Figure 8-18

1шт.

12

Hose at rod end of lift cylinder, Figure 8-18

1шт.

13

Tube at rod end of right hand lift cylinder, Figure 8-18

1шт.

14

Tube at rod end of left hand lift cylinder, Figure 8-18

1шт.

15

Hose at loader lift frame pivot, Figure 8-20

1шт.

16

Upper tube on left hand lift arm, Figure 8-20

1шт.

17

Lower tube on left hand lift arm, Figure 8-20

1шт.

18

Upper crossover tube at upper lift frame, Figure 8-20

1шт.

19

Lower crossover tube at upper lift frame, Figure 8-20

1шт.

20

Hose at rod end of bucket cylinder, Figure 8-20

1шт.

21

Hose at closed end of bucket cylinders, Figure 8-20

1шт.

22

Tube to closed end of right hand bucket cylinder, Figure 8-20

1шт.

23

Tube to closed end of left hand bucket cylinder, Figure 8-20

1шт.
