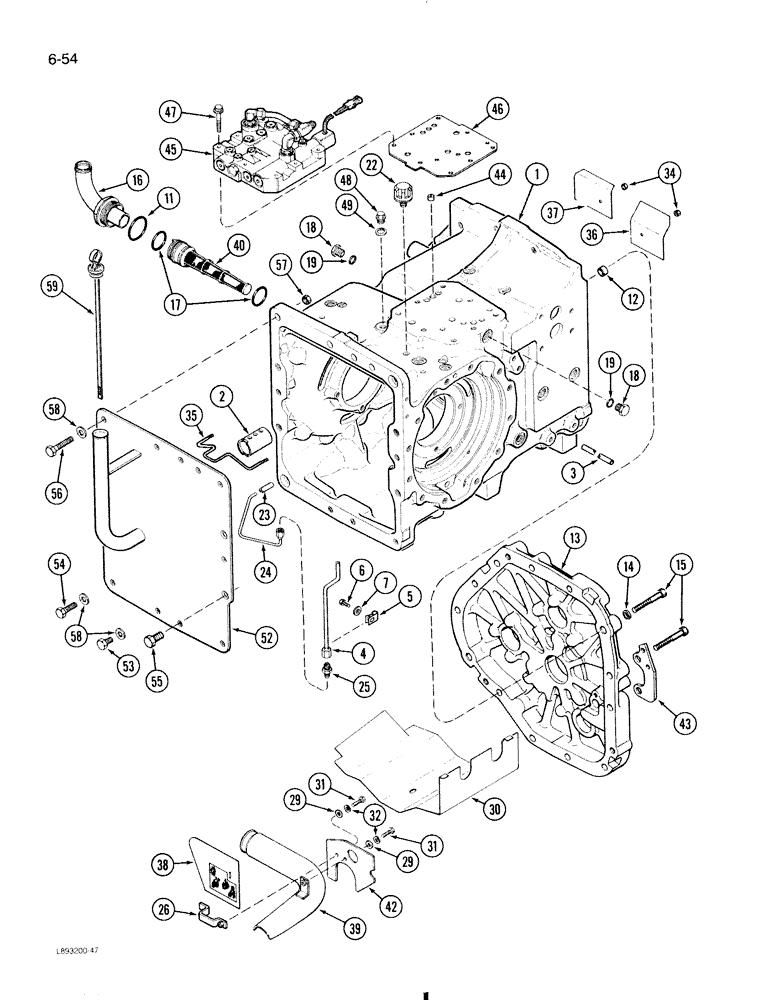

Запчасти Case 580K (6-054) - TRANSAXLE TRANSMISSION HOUSING, TWO AND FOUR-WHEEL DRIVE (06) - POWER TRAIN

1

A183561

HOUSING

ASSEMBLY, transaxle, Includes: Ref. 2 - 7

1шт.

2

A183013

BUSHING

SLEEVE wear, shuttle clutch shaft

1шт.

3

A178294

TUBE

cooling, brake

1шт.

4

A188001

TUBE

pinion lubrication

1шт.

5

A183210

CLAMP

tube

1шт.

6

813-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

hex, 10 mm - 1.5 x 16 mm

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 13/32 x 53/64 x 5/64"

1шт.

11

237-6032

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

sealing, Replaces: 218-5013

1шт.

12

A175944

DOWEL,22.1mm OD x 13.5mm L

SLEEVE dowel, front housing

2шт.

13

A188903

COVER

housing, front, without PTO

1шт.

13

A188904

COVER

housing, front, with PTO

1шт.

14

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

hardened

13шт.

15

826-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

13шт.

16

A188031

ELBOW

hose fitting

1шт.

17

238-6135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 6, 90 Duro

2шт.

18

214389

PLUG,3/4" - 16 ORB

Drain, Includes Ref. 19 Hex Hd, 3/4"-16 ORB

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

1971726C1

BREATHER,1/4" - 18

ASSEMBLY, housing

1шт.

23

A190247

HALF-BUSHING

BUSHING pinion lubrication tube

1шт.

24

A186996

TUBE ASSY.

TUBE pinion lubrication

1шт.

25

A188454

ADAPTER

lube tube

1шт.

26

A186733

SUPPORT

BRACKET lower baffle

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

30

A186612

BAFFLE

main

1шт.

31

813-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

hex, 6 mm - 1.0 x 30 mm

2шт.

32

933833R1

LOCK WASHER,M6

2шт.

34

30381R1

NUT,M6 x 1, Cl 10

NUT hex, prevailing torque, 6 mm, Grade 10

2шт.

35

A186601

BRACKET

upper baffle

1шт.

36

A186602

BRACKET

BAFFLE upper right

1шт.

37

A186603

PLATE

upper left

1шт.

38

A186606

FILTER SCREEN

BAFFLE ASSEMBLY, with screen

1шт.

39

A188032

TUBE

suction, oil pick-up

1шт.

40

A188034

SCREEN

FILTER oil suction inlet

1шт.

42

A186993

BAFFLE

lower right, without PTO

1шт.

42

A186992

BAFFLE

lower right, with PTO

1шт.

43

A186976

BRACKET

park brake cable

1шт.

44

A183319

ORIFICE

clutch pack lubrication

1шт.

45

REF

INSTRUCTION

VALVE ASSEMBLY, power shuttle, see Figures 6-020 and 6-022

1шт.

46

1341102C1

GASKET,0.81mm Thk

, Serial Range: valve-housing

1шт.

47

866-10060

SCREW,Flanged, M10 x 60mm, Class 12.9

BOLT, 12 point head, 10 mm - 1.50 x 60 mm

8шт.

48

J900215

PLUG

drain, oil

1шт.

49

J900216

PACKING RING

WASHER sealing

1шт.

52

A190137

COVER ASSY

COVER housing, rear, without PTO

1шт.

53

30795R1

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9

hex NYLOK, 16 mm - 2.0 x 25 mm, non-PTO

5шт.

54

826-16045

BOLT hex, 16 mm - 2.0 x 45 mm, without PTO

1шт.

55

826-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, 20 mm - 2.5 x 30 mm, without PTO

4шт.

56

826-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

without PTO Hex, M16 x 60, 10.9, Full Thd

5шт.

57

825-1116

NUT,M16, Cl 8

without PTO M16, Cl 8

5шт.

58

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

hardened, without PTO

11шт.

59

A183331

DIPSTICK

oil level, without PTO

1шт.
