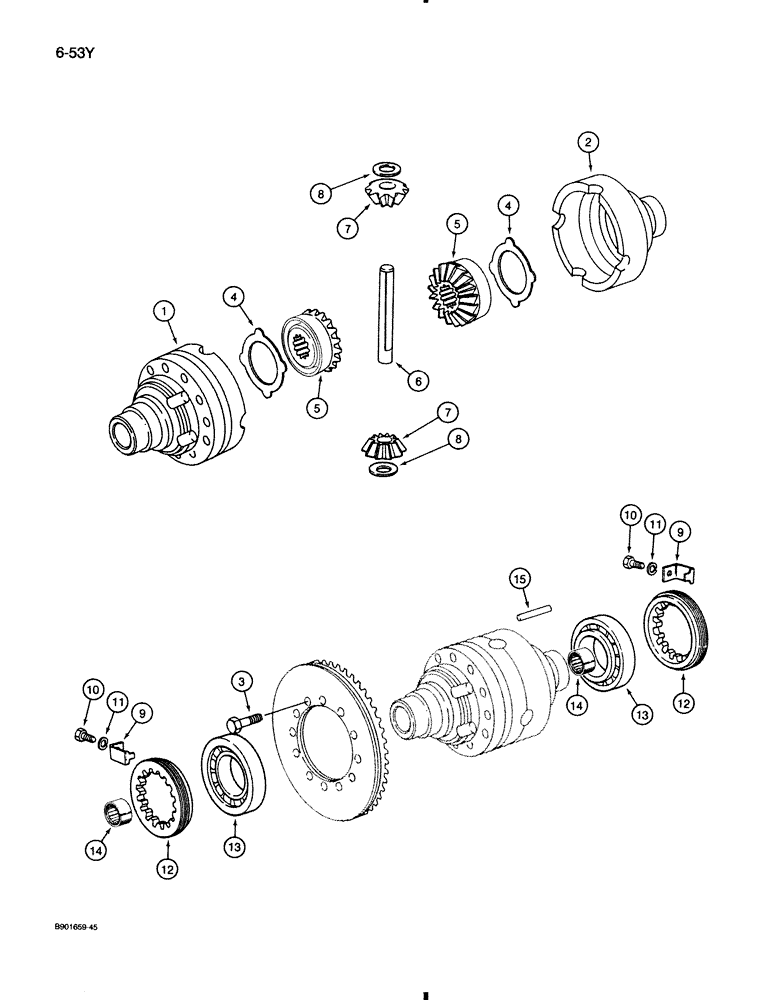

Запчасти Case 580K (6-053Y) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY, front drive, Carraro No. 126140, see Figures 6-053O - 6-053Z, Includes: housing assembly below and Ref. 1 - 15

1шт.

1349056C1

HOUSING

ASSEMBLY, self-locking differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

N13618

WASHER

thrust, differential housing

2шт.

5

N14407

GEAR

side, differential

2шт.

6

K395087

SHAFT

- Pinion gear

1шт.

7

N14408

SUN GEAR

GEAR pinion, differential

2шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

2шт.

9

K261869

LOCK

BRACKET lock

2шт.

10

K261871

SCREW

BOLT hex head, special, 6 mm - 1 x 12 mm

2шт.

11

K261870

WASHER

lock, special, 6 mm

2шт.

12

K261868

RING

lock, threaded

2шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

14

1967625C1

BUSHING

housing

2шт.

15

K395086

PIN

dowel

1шт.

M20704

ADHESIVE

SEALANT, bolt to differental housing, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
