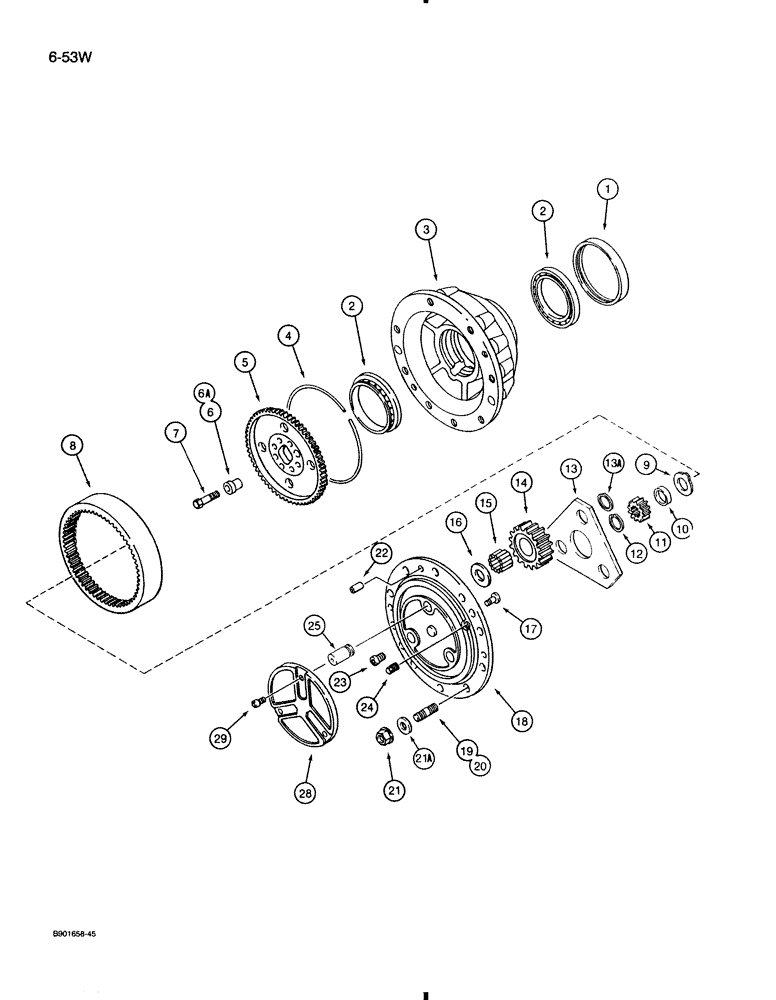

Запчасти Case 580K (6-053W) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY, front drive, Carraro No. 126140, see Figures 6-053O - 6-053Z, Includes: Ref. 1 - 29

1шт.

1

D149734

SEAL

oil, hub

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING ball, hub

4шт.

3

K395123

HUB

wheel attaching

2шт.

4

H437679

RING, SNAP

RING lock

2шт.

5

H437678

RING, FLYWHEEL

HUB ring gear

2шт.

6

K395105

RING

BUSHING centering, 20 mm OD

6шт.

6a

K395104

RING

BUSHING centering, 24 mm OD

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

8шт.

8

H437677

GEAR, RING

GEAR ring, planetary

2шт.

9

K395115

WASHER

tab lock, special

2шт.

10

K395121

SPACER

pinion gear

2шт.

11

K395114

GEAR

pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING snap, pinion gear retaining

2шт.

13

K395122

PLATE

WASHER thrust, pinion gear, inner

6шт.

This is a triangular-shaped plate. The washer is P/N N13512.

1шт.

13a

K395028

RING, SNAP

RING snap

6шт.

14

K395110

GEAR

pinion, planetary

6шт.

15

K395092

NEEDLE BEARING

BEARING needle, planetary gear

180шт.

16

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN lock, planetary cover

2шт.

18

K395111

PINION CARRIER

COVER planetary

2шт.

19

K260218

STUD

special, without collar

12шт.

20

N13515

STUD

special, with collar, for recessed bolt holes

4шт.

21

K395089

WHEEL NUT

hex, special, wheel mounting

16шт.

21a

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

wheel mounting

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

23

K395029

SCREW

special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

K395124

SHAFT

pinion gear

6шт.

28

K395135

COVER

PLATE planetary cover

2шт.

See ECN H93SR54. Effective with axle S/N WA1368 and WP1368, Carraro removed cover and screws from planetary and replaced the screws with plugs. The new plugs can be used prior to these axle S/N breaks. The plug is six per 138866A1. Also effective with axle S/N WA1219 and WP1218, the combination of (2) 892-11006 6 mm lockwashers and (2) 614-6012 bolts, not shown, were replaced by two pieces of 112486A1 self-locking bolt. All old parts are retained for service for machines with axles built prior to the previo

1шт.

29

K395082

SCREW,M8 x 20mm

special, planetary cover plate

6шт.

See ECN H93SR54. Effective with axle S/N WA1368 and WP1368, Carraro removed cover and screws from planetary and replaced the screws with plugs. The new plugs can be used prior to these axle S/N breaks. The plug is six per 138866A1. Also effective with axle S/N WA1219 and WP1218, the combination of (2) 892-11006 6 mm lockwashers and (2) 614-6012 bolts, not shown, were replaced by two pieces of 112486A1 self-locking bolt. All old parts are retained for service for machines with axles built prior to the previo

1шт.

M20704

ADHESIVE

SEALANT, planetary cover to hub, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
