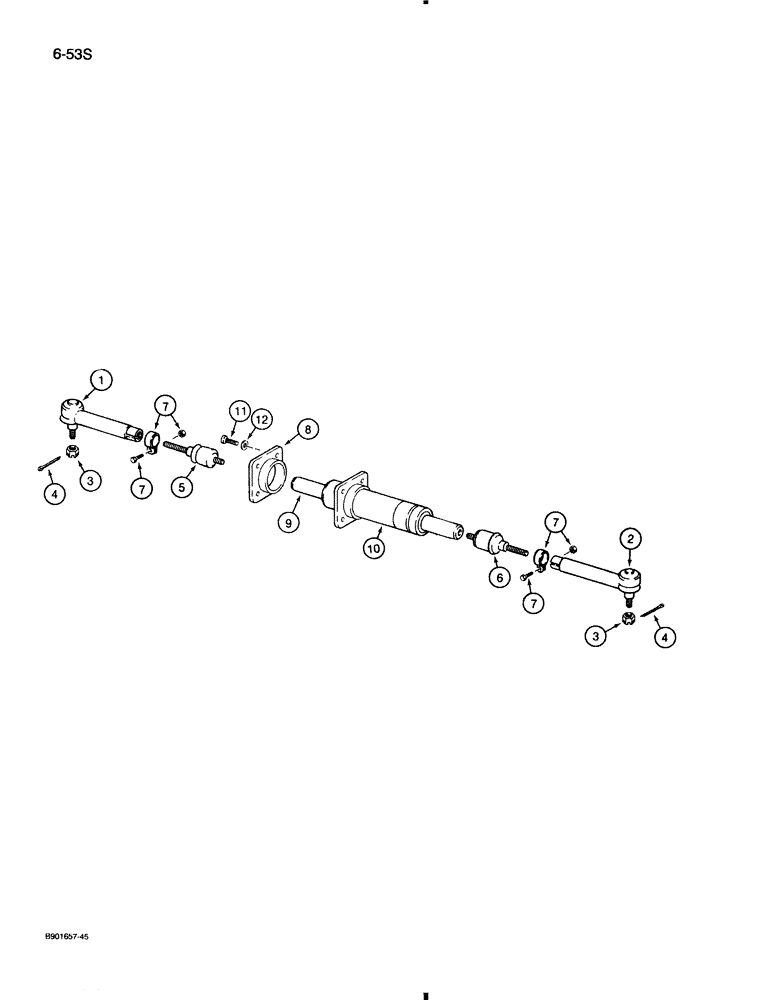

Запчасти Case 580K (6-053S) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

D146847

AXLE

ASSEMBLY, front drive, Carraro No. 126140, see Figures 6-053O - 6-053Z, Includes: joint assemblies below and Ref. 1 - 12

1шт.

D149730

BALL JOINT

JOINT ASSEMBLY, ball, left-hand, Includes: Ref. 1, 3 and 4

1шт.

D149728

BALL JOINT

JOINT ASSEMBLY, ball, right-hand, Includes: Ref. 2 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT ball, left-hand

1шт.

2

NSS

NOT SOLD SEPARAT

JOINT ball, right-hand

1шт.

3

N14380

JAM NUT

hex, slotted, ball joint

1шт.

4

632-656

COTTER PIN,M4 x 36

PIN cotter, plated, 5/32" x 1-27/64"

1шт.

5

N14388

BALL JOINT

ROD tie, steering, adjuster, left-hand

1шт.

6

N14377

ARTICULATION

ROD tie, steering, adjuster, right-hand

1шт.

7

D142924

CLAMP

ball joint to tie rod, includes hardware

2шт.

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

CYLINDER steering, Includes: Ref. 8 - 10, order D149739 kit to service seals, see below

1шт.

8

D149737

GLAND

cylinder

1шт.

9

D149736

ROD

piston

1шт.

10

D149738

STEERING CYLINDER

TUBE cylinder

1шт.

11

D142929

BOLT,Hex, M12 x 50, 8.8

special, steering cylinder

4шт.

12

K965425

WASHER

special, steering cylinder

4шт.

M20704

ADHESIVE

SEALANT, cylinder flange to cylinder, 3 oz, 89 ml of sealant in a tube, not shown

1шт.

D149739

SEAL PACKAGE

KIT seal, steering cylinder, for rod, gland and piston, includes (4) rings, (3) seals, (2) wipers and (2) gland packings which are not serviced separately

1шт.
