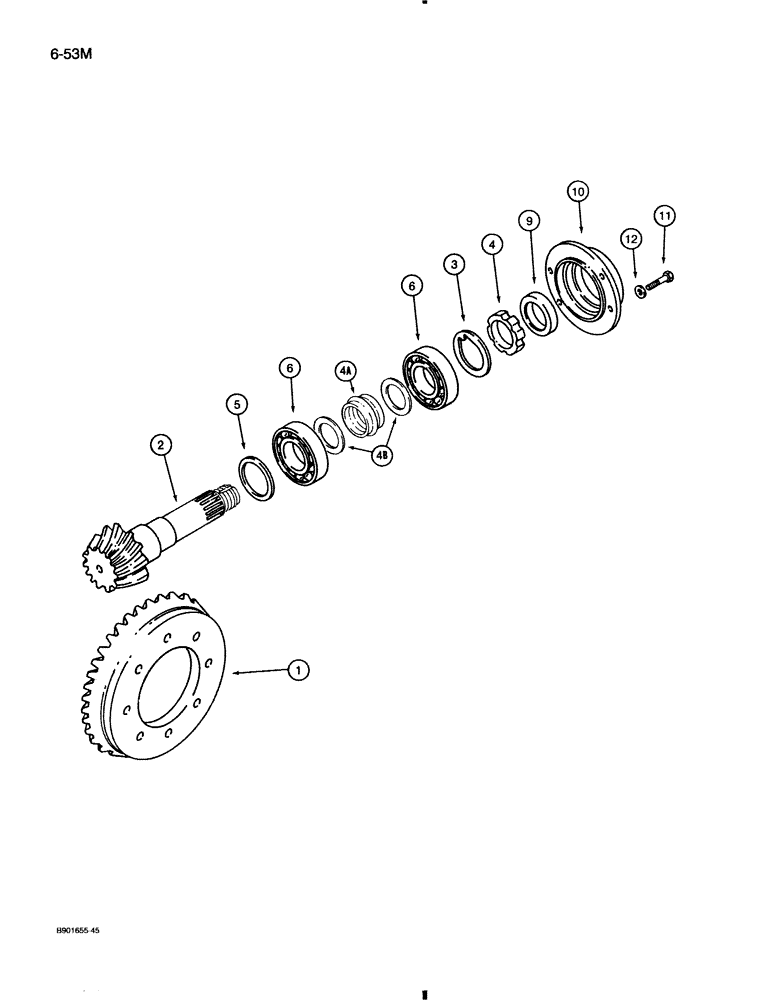

Запчасти Case 580K (6-053M) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

D149174

AXLE

ASSEMBLY, front drive, Carraro No. 126914, see Figures 6-053A - 6-053M, Includes: gear set below and Ref. 1 - 12

1шт.

D149266

GEAR, BEVEL

GEAR SET ring and pinion, Includes: Ref. 1 - 4B

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

special

1шт.

4

K261852

NUT

RING nut, pinion gear

1шт.

4a

1349058C1

SPACER

collapsible

1шт.

4b

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer

2шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM, 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.

10

N14404

COVER

differential

1шт.

11

K395026

BOLT,Hex, M6 x 20, 8.8

special, cover mounting

4шт.

12

K261870

WASHER

special

4шт.

M20704

ADHESIVE

SEALANT, differential cover to differential carrier, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
