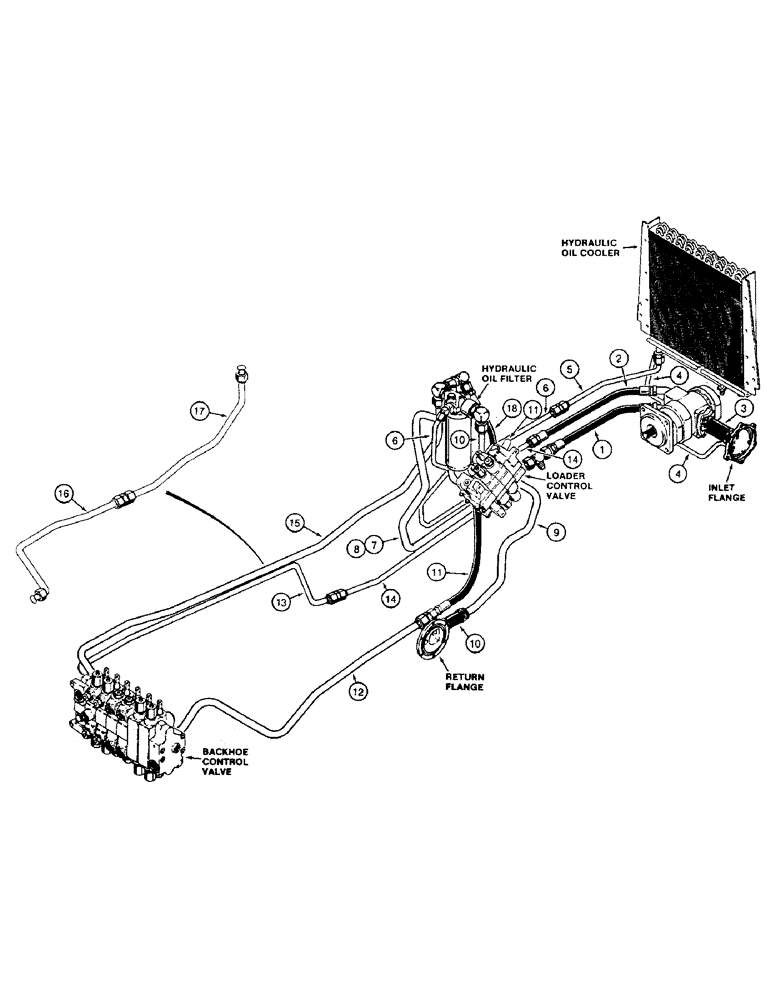

Запчасти Case 580K (1-010) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYDRAULIC PUMP TO OIL FILTER AND CONTROL VALVES WITH BACKHOE (00) - PICTORIAL INDEX

1

Hose at equipment hydraulic pump large section, Figure 8-2

1шт.

2

Hose at equipment hydraulic pump small section, Figure 8-10

1шт.

3

Hose at equipment hydraulic pump inlet adapter flange on chassis, Figure 8-2

1шт.

4

Oil cooler return to reservoir tube, Figure 8-16

1шт.

5

Oil cooler inlet tube, Figure 8-16

1шт.

6

Oil filter tube to cooler inlet tube, Figure 8-16

1шт.

7

Tube to loader valve inlet tube, two piece tube design, Figure 8-4

1шт.

8

Loader valve inlet hose, two piece design, Figure 8-4

1шт.

9

Return to tank tube at hydraulic oil filter, Figure 8-14

1шт.

10

Return to tank hose at return flange on chassis, Figure 8-14

1шт.

11

Power beyond hose at loader valve outlet section, Figure 8-4

1шт.

12

Tube at backhoe valve inlet section from loader valve power beyond tube, Figure 8-6

1шт.

13

Tube to backhoe control valve swing section inlet, Figure 8-6

1шт.

14

Tube at small pump section hose to backhoe control valve swing section inlet tube, Figure 8-6

1шт.

15

Backhoe return to filter tube, one piece tube design, Figure 8-6

1шт.

16

Backhoe return to filter tube, two piece tube design, Figure 8-6

1шт.

17

Backhoe return to filter tube, two piece tube design, Figure 8-6

1шт.

18

Hose at loader valve outlet to filter, Figure 8-4

1шт.
