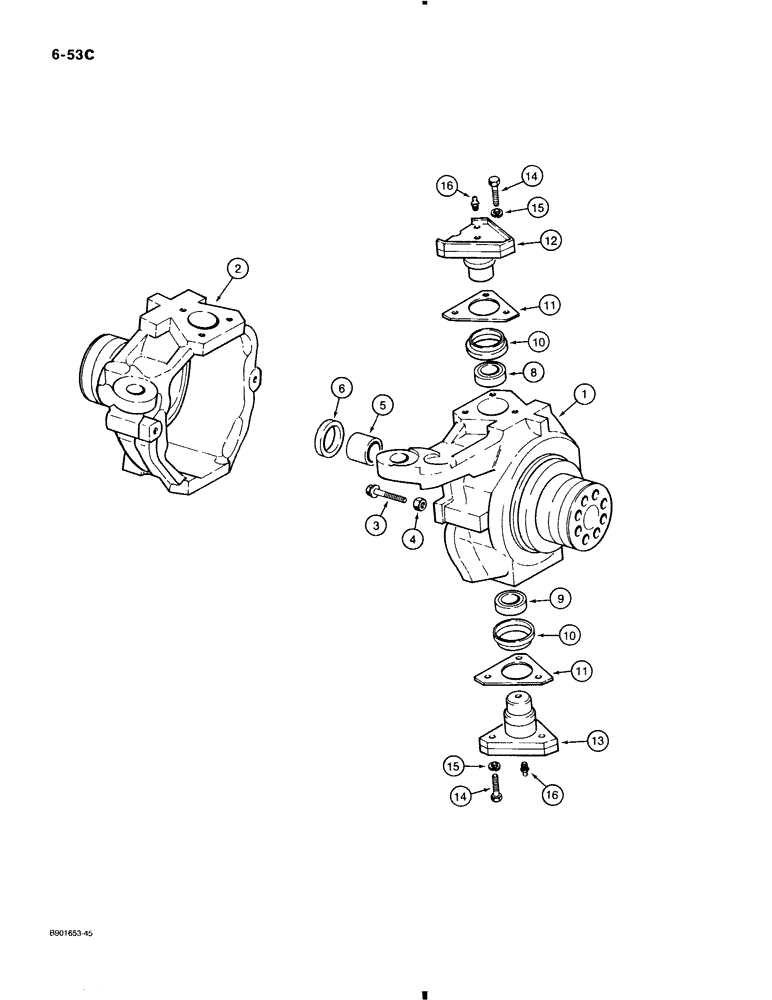

Запчасти Case 580K (6-053C) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

D149174

AXLE

ASSEMBLY, front drive, Carraro No. 126914, see Figures 6-053A - 6-053M, Includes: Ref. 1 - 16

1шт.

1

N14375

HOUSING

swivel, right-hand

1шт.

2

N14374

HOUSING

swivel, left-hand

1шт.

3

D142907

SCREW

BOLT steering stop, special, 14 mm

4шт.

4

D142908

NUT

hex, special, 14 mm

4шт.

5

K395033

BUSHING

swivel housing

2шт.

6

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, swivel housing

2шт.

8

N14372

BUSHING

BEARING swivel cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

9

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING swivel cap, lower, two-piece bearing

2шт.

10

K395039

SEAL

bearing

4шт.

11

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

11

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

11

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

12

N14376

PIN

KING PIN swivel housing cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

13

N13504

PIVOT

KING PIN swivel housing cap, lower

2шт.

14

K965247

BOLT,M14 x 35mm

BOLT hex head, special, 14 mm - 2 x 35 mm

12шт.

15

K965248

WASHER

lock, special, 14 mm

12шт.

16

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING grease, straight, swivel cap

4шт.

M20704

ADHESIVE

SEALANT, wear ring to swivel housing, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
