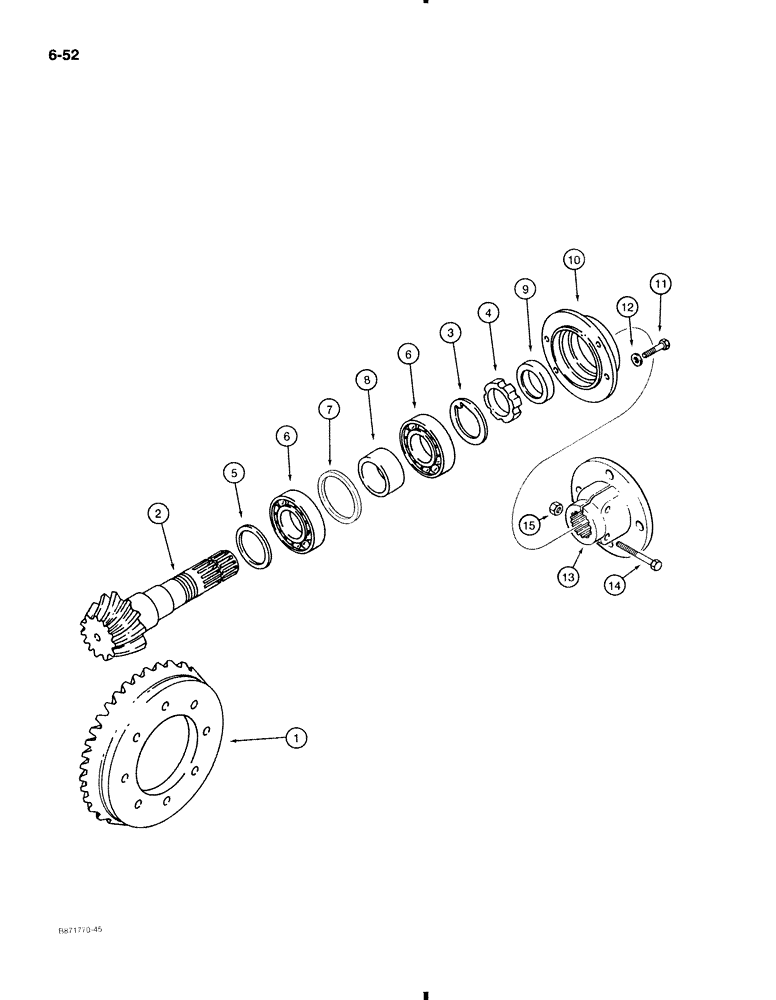

Запчасти Case 580K (6-052) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, Carraro No. 123799, see Figures 6-040 - 6-052, Includes: gear set below and Ref. 1 - 15

1шт.

N14249

GEAR-SET

GEAR SET ring and pinion, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special

1шт.

4

K261852

NUT

RING nut, pinion gear

1шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM, 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

7

N14405

SPACER

bearing, narrow

1шт.

8

N14406

SPACER

bearing, wide

1шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.

10

N14404

COVER

differential

1шт.

11

K395026

BOLT,Hex, M6 x 20, 8.8

special, cover mounting

4шт.

12

K261870

WASHER

special

4шт.

13

N13619

COVER

flange, drive shaft end

1шт.

14

K965415

BOLT,M10 x 1.25 x 60mm

BOLT hex head, special, 10 mm - 1.25 x 60 mm

2шт.

15

K965414

NUT

hex, self-locking, special, 10 mm - 1.25

2шт.

M20704

ADHESIVE

SEALANT, differental cover to differential carrier, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
