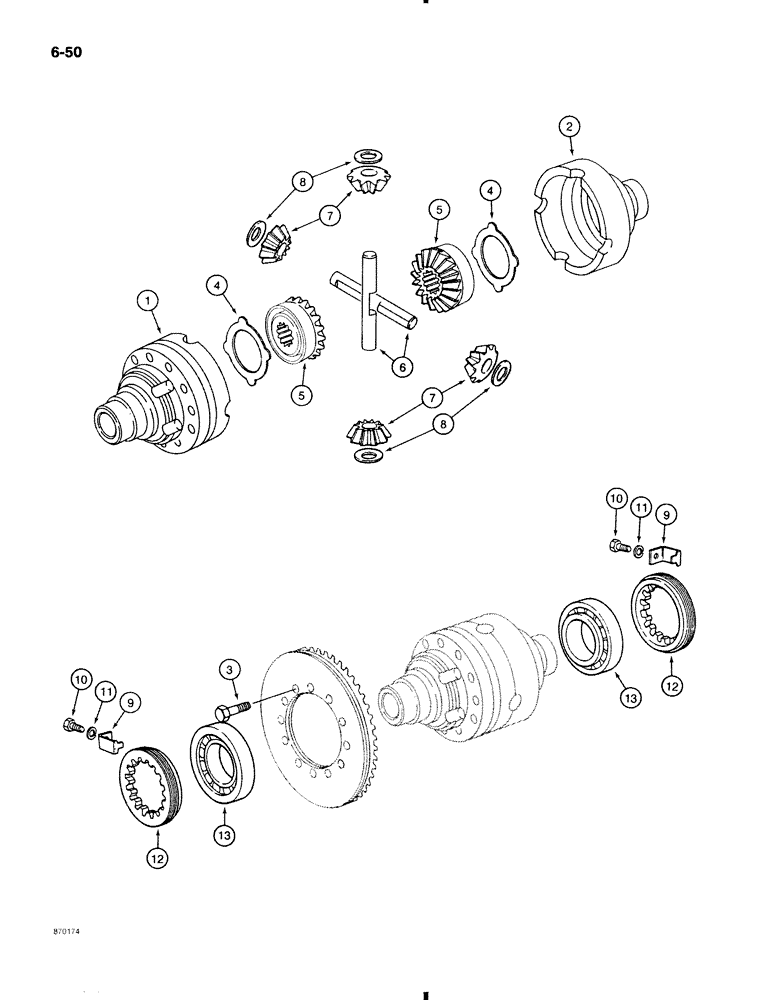

Запчасти Case 580K (6-050) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, Carraro No. 123799, see Figures 6-040 - 6-052, Includes: housing assembly below and Ref. 1 - 13

1шт.

N13508

DIFFERENTIAL

HOUSING ASSEMBLY, self-locking differential, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

hex head, plated, 10 mm - 1.5 x 80 mm, 10.9

12шт.

4

N13618

WASHER

thrust, differential housing

2шт.

5

N14407

GEAR

side, differential

2шт.

6

N13507

PIN

SHAFT pinion gear

2шт.

7

N14408

SUN GEAR

GEAR pinion, differential

4шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

4шт.

9

K261869

LOCK

BRACKET lock

2шт.

10

K261871

SCREW

BOLT hex head, special, 6 mm - 1 x 12 mm

2шт.

11

K261870

WASHER

lock, special, 6 mm

2шт.

12

K261868

RING

lock, threaded

2шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

M20704

ADHESIVE

SEALANT, bolt to differental housing, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
