Запчасти Case 580K (6-048) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

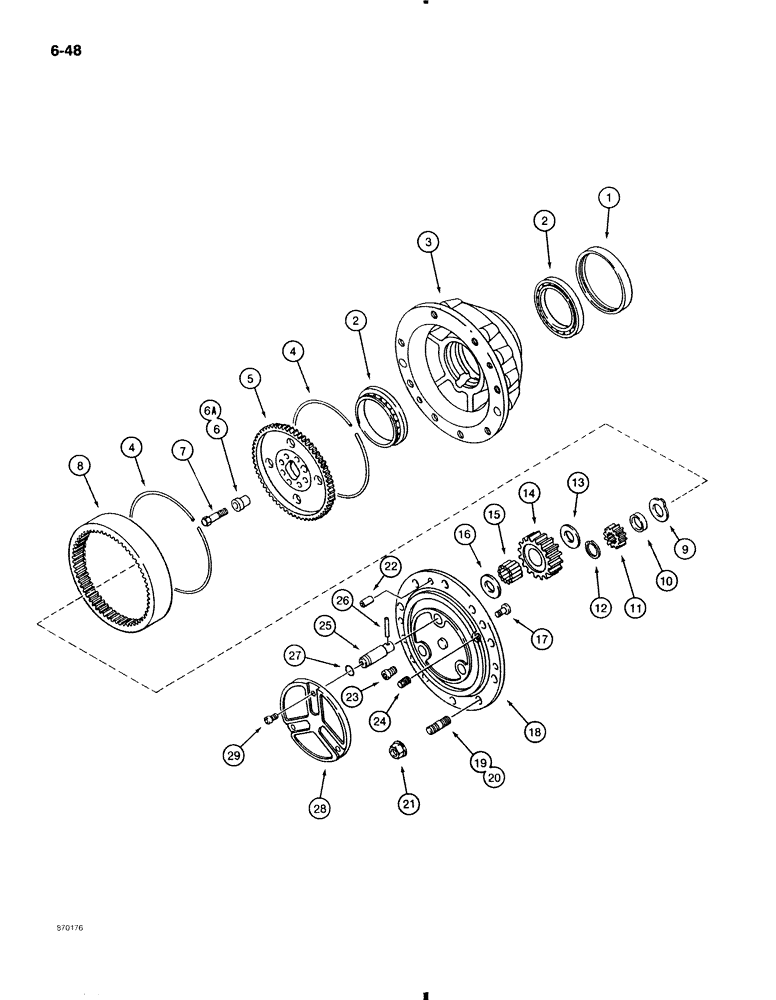

Схема запчастей Case 580K - (6-048) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN
10
4
6a
2
7
13
18
4
17
15
12
16
14
2
19
6
24
1
8
9
11
3
29
27
22
26
28
23
20
21
5
25

Артикул

Название

Примечание

Количество

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, Carraro No. 123799, see Figures 6-040 - 6-052, Includes: Ref. 1 - 29

1шт.

1

K395102

OIL SEAL

oil, hub

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING ball, hub

4шт.

3

K395123

HUB

wheel attaching

2шт.

4

K395095

CIRCLIP

RING lock

4шт.

5

K395126

WHEEL

HUB ring gear

2шт.

6

K395105

RING

BUSHING centering, 20 mm OD

14шт.

6a

K395104

RING

BUSHING centering, 24 mm OD

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

8

K395113

GEAR

ring, planetary

2шт.

9

K395115

WASHER

tab lock, special

2шт.

10

K395121

SPACER

pinion gear

2шт.

11

K395114

GEAR

pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING snap, pinion gear retaining

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

thrust, pinion gear, inner

6шт.

14

N13513

GEAR,29 T

Pinion, Planetary 29 T

6шт.

15

N13514

NEEDLE BEARING

BEARING needle, planetary gear

180шт.

16

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN lock, planetary cover

2шт.

18

309421A1

COVER ASSY

COVER planetary, Replaces: N13516

2шт.

If needed without plate number 28, try P/N 230510A1, subs to P/N 309421A1. For information on assembly of thrust washers for pinion gears, see 590SL series 2 parts catalogs.

1шт.

19

K260218

STUD

special, without collar

12шт.

20

N13515

STUD

special, with collar, for recessed bolt holes

4шт.

21

K395089

WHEEL NUT

hex, special

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

23

K395029

SCREW

special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

N13517

PIN,34.4mm OD x 80mm L

SHAFT pinion gear

6шт.

26

K965305

SPLIT PIN/SAFETY PIN

PIN pinion gear shaft

6шт.

27

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

pinion gear shaft

6шт.

28

K395135

COVER

PLATE planetary cover

2шт.

See ECN H93SR54. Effective with axle S/N WA1368 and WP1368, Carraro removed cover and screws from planetary and replaced the screws with plugs. The new plugs can be used prior to these axle S/N breaks. The plug is six per 138866A1. Also effective with axle S/N WA1219 and WP1218, the combination of (2) 892-11006 6 mm lockwashers and (2) 614-6012 bolts, not shown, were replaced by two pieces of 112486A1 self-locking bolt. All old parts are retained for service for machines with axles built prior to the previo

1шт.

29

K395082

SCREW,M8 x 20mm

special, planetary cover plate

6шт.

See ECN H93SR54. Effective with axle S/N WA1368 and WP1368, Carraro removed cover and screws from planetary and replaced the screws with plugs. The new plugs can be used prior to these axle S/N breaks. The plug is six per 138866A1. Also effective with axle S/N WA1219 and WP1218, the combination of (2) 892-11006 6 mm lockwashers and (2) 614-6012 bolts, not shown, were replaced by two pieces of 112486A1 self-locking bolt. All old parts are retained for service for machines with axles built prior to the previo

1шт.

M20704

ADHESIVE

SEALANT, planetary cover to hub, 3 oz, 89 ml of sealant in a tube, not shown

1шт.

Выбрано товаров: 35
