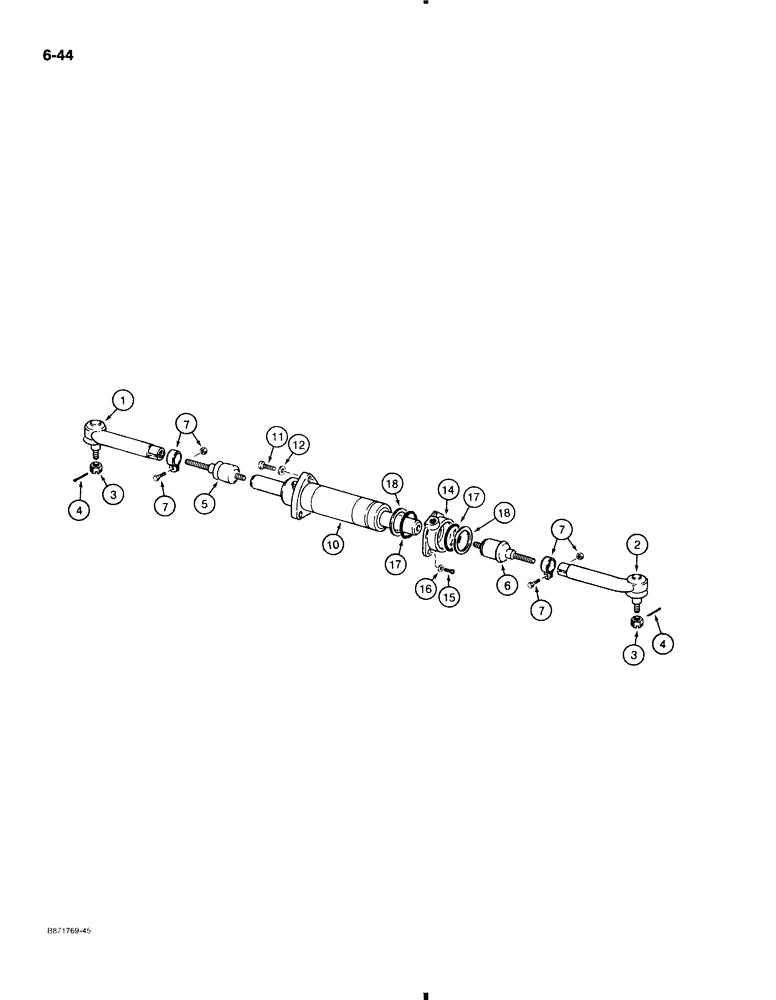

Запчасти Case 580K (6-044) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, Carraro No. 123799, see Figures 6-040 - 6-052, Includes: joint assemblies below and Ref. 1 - 18

1шт.

1

N14402

BALL JOINT

JOINT ASSEMBLY, ball, left-hand, Includes: Ref. 3 and 4

1шт.

2

N14379

BALL JOINT

JOINT ASSEMBLY, ball, right-hand, Includes: Ref. 3 - 4

1шт.

3

N14380

JAM NUT

hex, slotted, ball joint

1шт.

4

632-656

COTTER PIN,M4 x 36

PIN cotter, plated, 5/32" x 1-27/64"

1шт.

5

N14388

BALL JOINT

ROD tie, steering, adjuster, left-hand

1шт.

6

N14377

ARTICULATION

ROD tie, steering, adjuster, right-hand

1шт.

7

N14378

CLAMP

ball joint to tie rod, includes hardware

2шт.

10

N14386

STEERING CYLINDER

CYLINDER steering, 3-1/32", 77 mm OD, order N14622 kit to service seals, see below, Includes: Ref. 10A - 10C

1шт.

10a

D146307

GLAND

cylinder, not shown

1шт.

10b

D146308

ROD

piston, not shown

1шт.

10c

D146309

TUBE

cylinder, not shown

1шт.

11

N14387

BOLT

special, steering cylinder

3шт.

12

K260268

LOCK WASHER,M16

WASHER special, steering cylinder

3шт.

14

N14385

FLANGE

for 3-1/32" (77 mm) OD steering cylinder

1шт.

15

N14384

BOLT

special, flange

3шт.

16

K965360

LOCK WASHER,M8

WASHER special, flange

3шт.

17

G104780

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

flange

2шт.

18

N14403

O-RING,76.66mm ID x 81.02mm OD x 1.14mm Thk

backup, flange O-ring

2шт.

M20704

ADHESIVE

SEALANT, cylinder flange to cylinder, 3 oz, 89 ml of sealant in a tube, not shown

1шт.

N14622

PACKAGE, REPAIR

KIT seal, steering cylinder, for rod, gland and piston, includes (4) rings, (3) seals, (2) wipers and (2) gland packings, which are not serviced separately

1шт.
