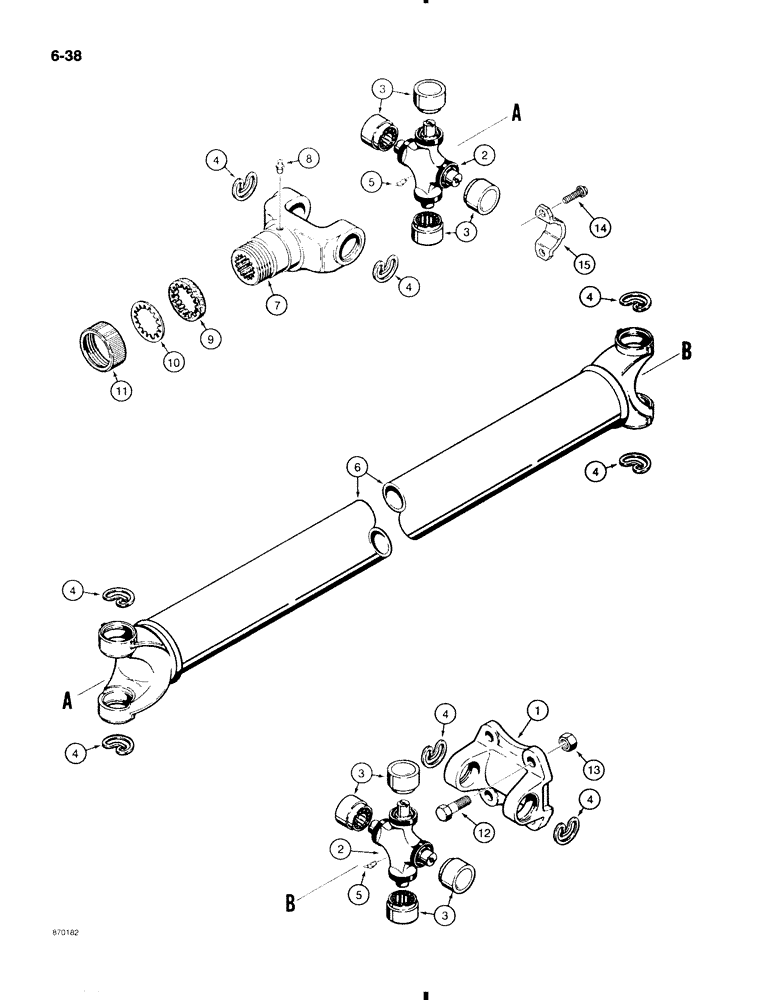

Запчасти Case 580K (6-038) - D143185 DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSAXLE (06) - POWER TRAIN

D143185

DRIVE SHAFT

SHAFT ASSEMBLY, drive, used with D139510 front drive axle and A190261 or A190262 transaxle, see Figure 6-030, Includes: Ref. 1 - 11

1шт.

Refer to service bulletin NLB SB 013 92 for correct drawings for driveshafts and requirements, shown in "additional information" for P/N D143185.

1шт.

1

S80726

YOKE

BRACKET flange

1шт.

D144306

PACKAGE, REPAIR

KIT universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft, includes thrust washers which are not serviced separately

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, 1/4" - 28 NF taper, 45°

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, front drive axle

1шт.

7

N14247

YOKE

drive shaft

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4" - 28 NF taper

1шт.

S240059

KIT

dust cap, Includes: Ref. 9 - 11

1шт.

This kit is for old drive shaft assembly D143185. The new drive shaft, P/N 1975595C1, subs from D143185 and requires dust cap kit D150025.

1шт.

9

R13997

WASHER

cork

1шт.

10

H299347

WASHER

seal, steel

1шт.

11

H299321

CAP

dust seal retaining

1шт.

12

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

hex head, 7/16" - 20 NF x 1-1/2", grade 8

4шт.

13

232-4617

LOCK NUT,7/16"-20, GC

NUT hex, self-locking, 7/16" - 20 NF

4шт.

14

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

special

4шт.

15

D137626

CLAMP,30.175mm D Clamping Pipe

STRAP bearing

2шт.
