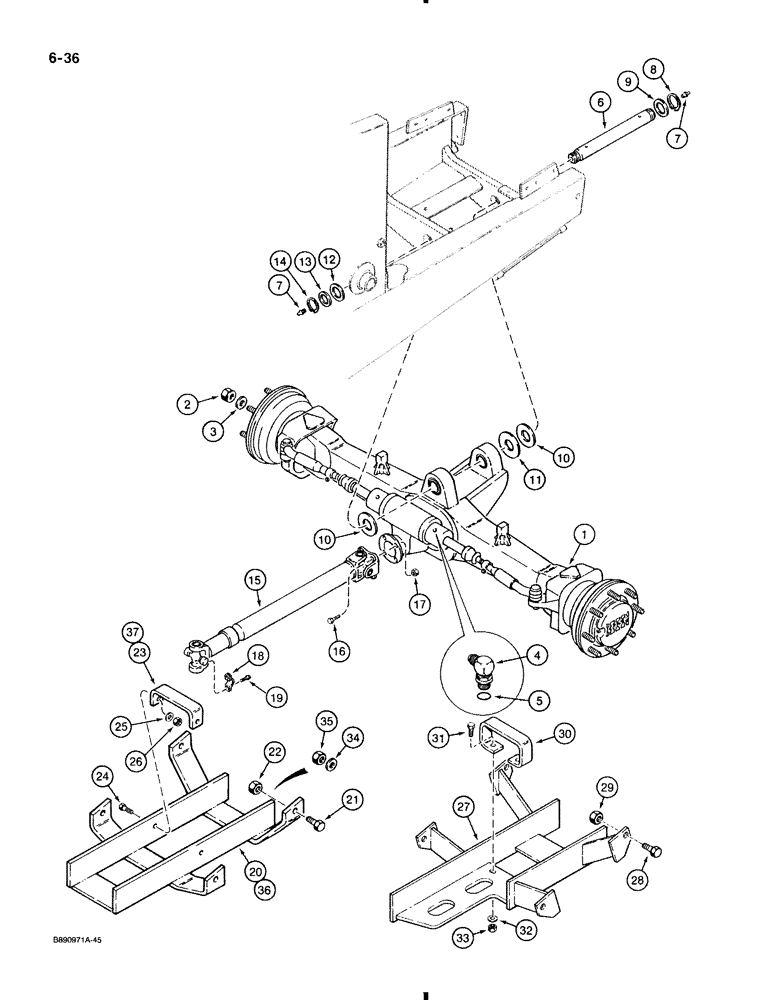

Запчасти Case 580K (6-036) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT, FOR D139510 FRONT DRIVE AXLE (06) - POWER TRAIN

1

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, see Figures 6-040 - 6-052, used with D143185 drive shaft on Figure 6-038 and A190261 or A190262 transaxle on Figure 6-030

1шт.

2

K395089

WHEEL NUT

hex, special, wheel retaining, front

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, hardened, 3/4"

16шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, 90°, Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

6

D127445

PIVOT PIN,50mm OD x 444mm L

SHAFT axle pivot

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

8

800-50050

SNAP RING,M50, Ext, Hvy

RING snap, shaft retaining, front

1шт.

9

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16 x 3 x 1/8"

1шт.

10

D37449

SHIM,.0747" Thk

WASHER flat, special, 2-1/32 x 4 x 1/16"

1шт.

11

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

thrust, 52 mm x 114 mm x 5 mm

1шт.

12

S49415

WASHER

special

1шт.

13

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-13/16 x 2-1/2 x 1/8"

1шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pivot shaft, rear #175, Ext

1шт.

15

D143185

DRIVE SHAFT

SHAFT ASSEMBLY, drive, front drive axle, see Figure 6-038

1шт.

16

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

hex head, 7/16" - 20 NF x 1-1/2", grade 8

4шт.

17

232-4617

LOCK NUT,7/16"-20, GC

NUT hex, self-locking, 7/16" - 20 NF

4шт.

18

D137626

CLAMP,30.175mm D Clamping Pipe

STRAP, Driveshaft Spider Bearing

2шт.

19

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

special, strap mounting

4шт.

20

D144755

GUARD

drive shaft, 16 mm, 5/8" thick, used on four-wheel drive models without PTO, no longer used, order D149468 and D149465, Ref. 36 and 37

1шт.

21

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

22

86755

NUT,1"-8, GB

NUT hex, self-locking, 1" NC, if used, may be replaced by flat washer and hex nut, Ref. 34 and 35

4шт.

23

D144756

BAR

STRAP, D144755, Ref. 20, if used

1шт.

24

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex, 3/4 NC x 2"

2шт.

25

495-11081

WASHER,3/4", SAE

2шт.

26

425-1012

NUT,3/4"-10, G5

hex, 3/4" NC

2шт.

27

D143339

GUARD

drive shaft, used on four-wheel drive models with PTO

1шт.

28

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

29

86755

NUT,1"-8, GB

NUT hex, self-locking, 1" NC

4шт.

30

D143726

STIRRUP

STRAP, D143339 shaft guard

1шт.

31

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex, 3/4 NC x 2"

2шт.

32

495-11081

WASHER,3/4", SAE

2шт.

33

425-1012

NUT,3/4"-10, G5

hex, 3/4" NC

2шт.

34

495-11106

WASHER,1", SAE

flat, 1", if used

4шт.

35

425-1016

NUT,1"-8, G5

if used, Replaces self-locking nut on some models 1"-8, G5

4шт.

36

D149468

GUARD

drive shaft, 10 mm, 3/8" thick, used on four-wheel drive models without PTO

1шт.

37

D149465

BAR

STRAP, D149468 shaft guard

1шт.
