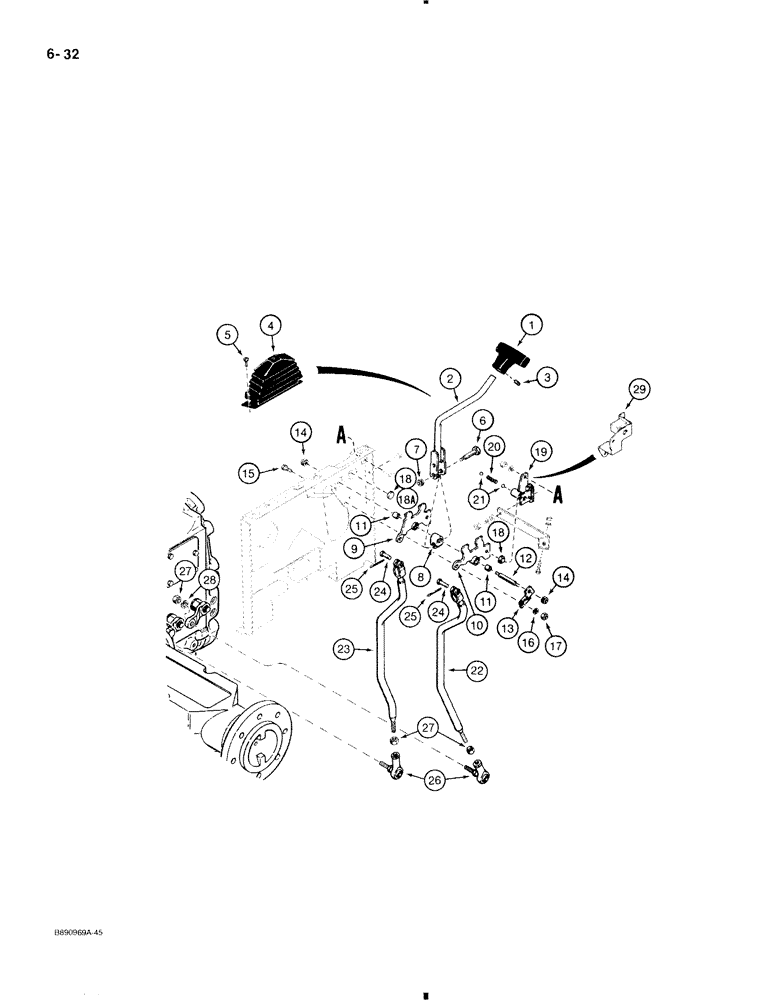

Запчасти Case 580K (6-032) - TRANSAXLE SHIFT LEVER (06) - POWER TRAIN

1

NLS

NO LONGER SERVICED

KNOB shift lever, T-handle

1шт.

See Figure 4-028 for clutch cutout switch and wire.

1шт.

2

D143833

LEVER

control, shift, transaxle

1шт.

See Figure 4-028 for clutch cutout switch and wire.

1шт.

3

178-892

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

SCREW set, hex headless, half dog point, 5/16 NF x 3/8"

1шт.

4

D143303

BOOT

transaxle control lever, mounts to side console

1шт.

5

182-552

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, slotted, No. 10 NC x 1/2"

1шт.

6

D142167

BOLT,Shoulder, Hex, 3/8" - 16 - 12.70mm Dia x 45.75mm

BOLT shoulder, special

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

D136635

BLOCK

shifter pivot, plastic

1шт.

9

D147051

LARGE PLATE

LEVER shift, Serial Range: first-second

1шт.

10

D147052

LARGE PLATE

LEVER shift, third to fourth, Includes: Ref. 11

1шт.

11

D147737

BUSHING,12.71mm ID x 15.95mm OD x 18.55mm L

D147051 or D147052 shift lever

1шт.

12

D142166

STUD

pivot

1шт.

13

D142170

SUPPORT ASSY.

BRACKET support, if used

1шт.

14

131-217

LOCK NUT

NUT light hex, self-locking, 3/8" - 16 NC

2шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

D142577

STOP

PLUG retainer, 5 mm thick head, used with D142169, Ref. 11 on Figure 3-004

2шт.

18a

D146895

STOP

PLUG retainer, 9 mm thick head, used with D147161, Ref. 38 on Figure 3-006

1шт.

19

D145303

SUPPORT

BELLCRANK shift detent, see Figure 3-004 for mounting, if used

1шт.

20

D148684

SPRING

detent

1шт.

21

D146449

BALL

carbon steel, 1/2", grade 200

2шт.

22

D142150

ROD

shift, Serial Range: third-fourth

1шт.

23

D142148

ROD

shift, Serial Range: first-second

1шт.

24

141-73

CLEVIS PIN

PIN clevis, short, 3/8"

2шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

L44143

BALL JOINT

JOINT ball, female with studs, 1/2"

2шт.

27

425-118

NUT,1/2"-20, G5

hex, plated, 1/2" - 20 NF

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

29

D146892

SUPPORT

BELLCRANK shift detent, see Figure 3-006 for mounting, used with D147161, Ref. 38 on Figure 3-006, if used

1шт.
