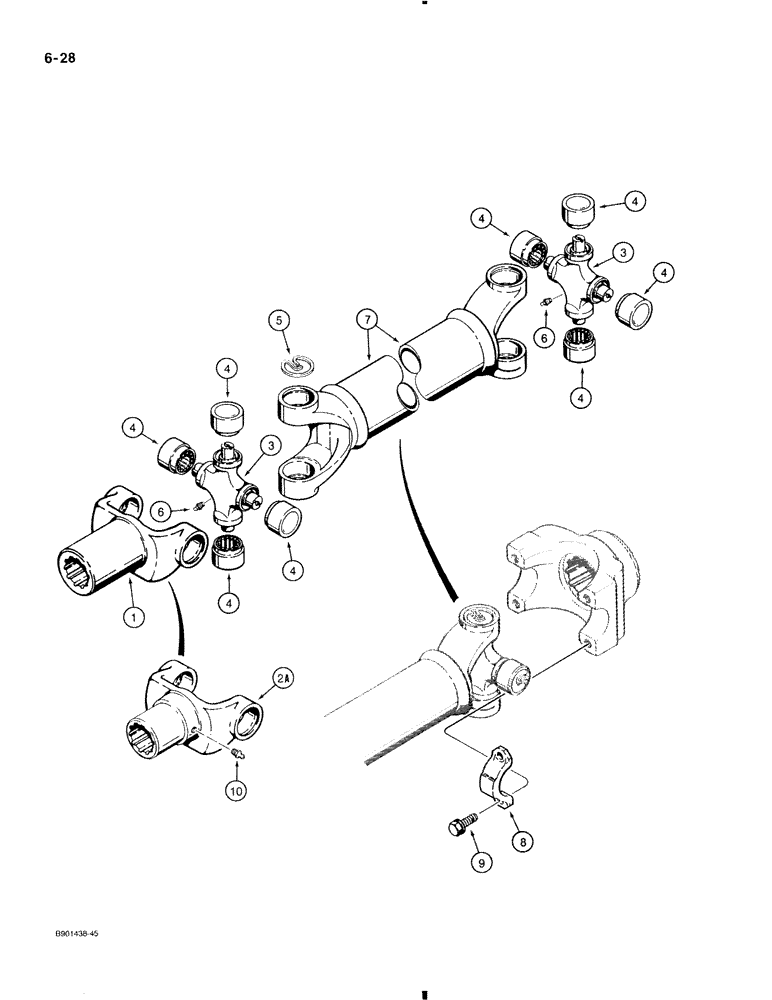

Запчасти Case 580K (6-028) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

D129436

DRIVE SHAFT

SHAFT ASSEMBLY, primary, drive, to transaxle, used on models without PTO

1шт.

D147314

DRIVE SHAFT

SHAFT ASSEMBLY, primary, drive, to transaxle, used in addition to D148969 on models with PTO

1шт.

D148969

DRIVE SHAFT

SHAFT ASSEMBLY, drive, input, to transaxle, used in addition to D147314 on models with PTO, Includes: Ref. 1 - 7

1шт.

1

N14231

YOKE

end, to transaxle, D129436 or D147314 drive shaft, Includes: Ref. 2

1шт.

The yoke attaches to transaxle through parking brake housing on Figure 7-004. The seal is Ref. 17 on Figure 7-004. If the machine is equipped with PTO, there will be an additional shaft going to the transaxle. If the machine does not have PTO, the only shaft present will be the primary drive shaft D129436, which uses N14231. If the machine has PTO, it will have primary drive shaft D147314, which also uses N14231. There will be an additional shaft present for the PTO D148969, which uses D149263.

1шт.

2

N13653

PLUG

grease, not shown

1шт.

2a

D149263

FORK

YOKE end, to transaxle, D148969 drive shaft only

1шт.

The yoke attaches to transaxle through parking brake housing on Figure 7-004. The seal is Ref. 17 on Figure 7-004. If the machine is equipped with PTO, there will be an additional shaft going to the transaxle. If the machine does not have PTO, the only shaft present will be the primary drive shaft D129436, which uses N14231. If the machine has PTO, it will have primary drive shaft D147314, which also uses N14231. There will be an additional shaft present for the PTO D148969, which uses D149263.

1шт.

N14230

KIT

universal joint, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

5

11256

SNAP RING

retaining

4шт.

6

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4" - 28 NF taper

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT drive, power shuttle

1шт.

8

D124146

CLAMP

STRAP bearing

2шт.

The yoke pictured is P/N A159663 torque converter output yoke. See Figure 6-010, Ref. 3.

1шт.

9

D124151

BOLT

special

4шт.

The yoke pictured is P/N A159663 torque converter output yoke. See Figure 6-010, Ref. 3.

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4 - 28 x 1/2", D148969 drive shaft yoke only

1шт.
