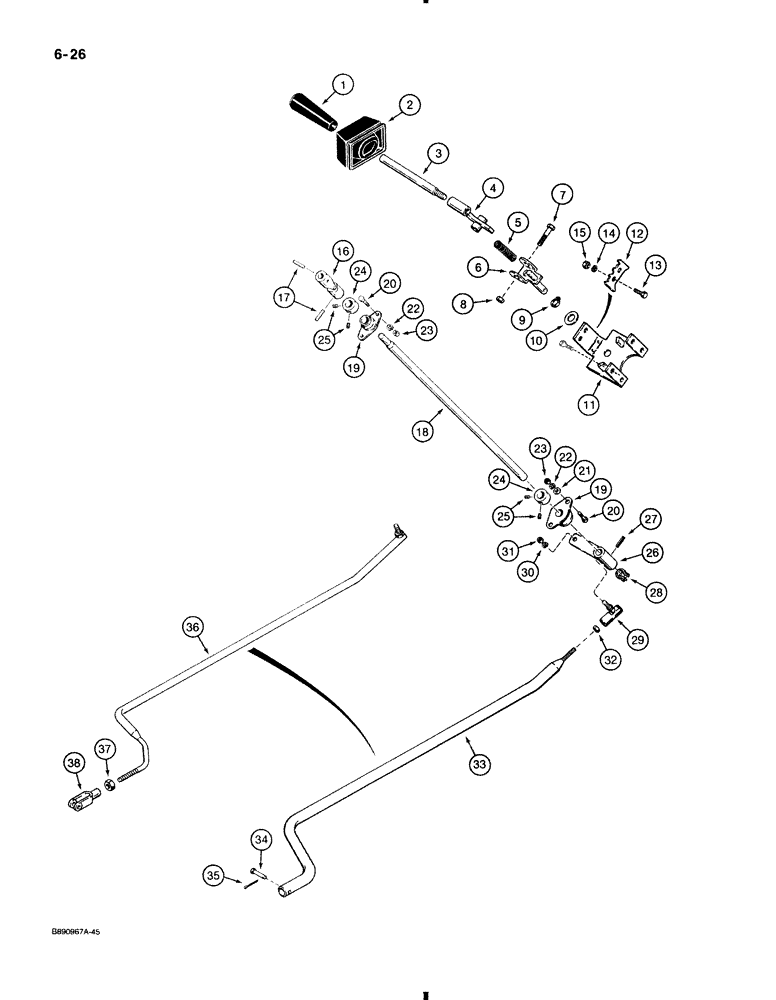

Запчасти Case 580K (6-026) - SHUTTLE CONTROL AND LINKAGE, USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (06) - POWER TRAIN

1

D86694

KNOB

shuttle control lever

1шт.

2

D141958

BELLOWS

BOOT shuttle control rod

1шт.

3

D143608

ROD

pivot, shuttle control lever

1шт.

4

D143607

ARM

BRACKET pivot

1шт.

5

D124906

SPRING

detent

1шт.

6

D143768

ROD ASSY.

CLEVIS rod, upper

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

131-217

LOCK NUT

NUT light hex, self-locking, 3/8" - 16 NC

1шт.

9

D95095

RING

RETAINER clevis

1шт.

10

495-11053

WASHER,1/2", SAE

2шт.

11

D143765

BRACKET

mounts to tilt/telescoping steering column, with stop blocks, see Figure 5-008, Ref. 6 - 9 for attaching hardware

1шт.

12

D140692

LARGE PLATE

PLATE detent

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

D143767

JOINT

U-JOINT shuttle rod

1шт.

17

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

2шт.

18

D143766

ROD

lower, shuttle control

1шт.

19

L15401

BEARING,15.89mm ID

steering valve bracket and shuttle rod

2шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, plated, 5/16" - 18 NC x 3/4"

4шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

4шт.

24

D142939

COLLAR

ASSEMBLY, locking, with 5/16" set screw, Includes: Ref. 25

2шт.

25

D143603

SET SCREW,5/16" - 18 x 8mm

set, torx socket headless, cup point, special, 5/16" - 18 NC x 5/16"

2шт.

26

D136702

LEVER

shuttle, lower

1шт.

27

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

28

D71880

CLAMP,22.23mm

adjustable, includes hardware

1шт.

29

D38296

JOINT

ball, 3/8", used with D147174, Ref. 33

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8" NF

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8" NF, If used

1шт.

33

D147174

ROD

control shuttle, no longer available, order D147492, Ref. 36 - 38

1шт.

34

141-62

CLEVIS PIN,1/4" x 1.219"

PIN clevis, 1/4"

1шт.

35

144272A1

STEM

PIN cotter, 1/16 x 1/2", Replaces: 132-328

1шт.

D147492

ROD

ASSEMBLY, shuttle control, Includes: Ref. 36 - 38

1шт.

36

D147491

ROD shuttle control, order upper assembly D147492

1шт.

37

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8" NF

1шт.

38

D150720

CLEVIS

special, Replaces: D148029

1шт.
