(6-022) - POWER SHUTTLE, VALVE ASSEMBLY WITHOUT PTO

Запчасти Case 580K (6-022) - POWER SHUTTLE, VALVE ASSEMBLY WITHOUT PTO (06) - POWER TRAIN

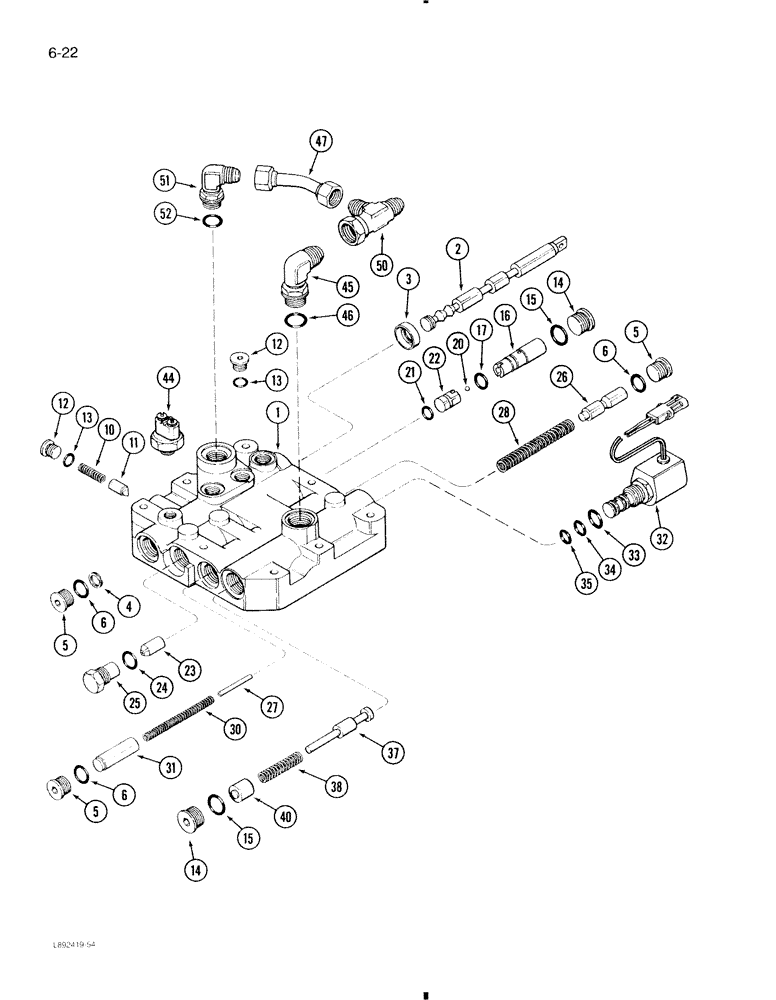

Схема запчастей Case 580K - (6-022) - POWER SHUTTLE, VALVE ASSEMBLY WITHOUT PTO (06) - POWER TRAIN
6
12
27
2
38
3
11
1
52
5
46
47
23
16
12
15
51
35
44
32
33
45
5
14
15
34
10
21
25
31
40
50
6
20
13
26
22
14
6
30
13
37
4
28
17
5
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1978113C2

VALVE BLOCK

VALVE ASSEMBLY, power shuttle, Includes: Ref. 1 - 52

1шт.

If the 1978113C2 valve is replaced by the 1343543C2 valve as a direct sub, the A1833919 restrictor must be removed from the transmission.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shuttle valve, order 1978113C2

1шт.

2

A178266

SPOOL

selector

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil

1шт.

4

A175093

SNAP RING,#56, Ext, Spiral

RING retaining

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 6 Hex Soc, 3/4"-16 ORB

3шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

A183672

SPRING

detent

1шт.

11

A175081

PLUNGER

detent

1шт.

12

9625178

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 13 Hex Soc, 9/16"-18 ORB

4шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

86625138

PLUG,7/18" - 14

Assy, Includes Ref. 15 Hex Soc, 7/8"-14 ORB

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 3/32"

1шт.

16

A178349

SEAT

shuttle

1шт.

17

A179308

O-RING,0.614" ID x 0.754" OD x 0.07"

5/8 ID x 3/4 OD x 1/16"

1шт.

20

211-257

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

21

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 x 1/16"

1шт.

22

A178384

SEAT

shuttle

1шт.

23

A186846

SPOOL

auto modulator unloading

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

A178264

SEAT

unloading spool

1шт.

26

1980336C1

SPOOL

modulator pressure regulator

1шт.

27

A188112

PIN

spacer

1шт.

28

1978109C1

SPRING

modulator, primary

1шт.

30

1978108C1

VALVE SPRING

SPRING modulator, secondary

1шт.

31

A186439

PISTON

ASSEMBLY, accumulator

1шт.

32

1971438C3

SOLENOID

VALVE ASSEMBLY, solenoid, Includes: Ref. 33 - 35

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 ID x 3/32"

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 ID x 1-1/16"

1шт.

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

37

1978388C1

SPOOL

pressure regulator

1шт.

Ref. 37 may be a two-piece design as used on the 590 turbo. The two pieces are 1343537C1 and 20133R1. The spring, Ref. 38, changes to 1343534C1.

1шт.

38

A175782

SPRING

pressure regulator

1шт.

40

A188228

PISTON

regulator

1шт.

44

1983241C1

SWITCH

neutral start

1шт.

45

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

5/8 tube x 7/8-14" thread, 90°, Incl. Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32"

1шт.

47

A186964

TUBE

lube crossover

1шт.

50

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

adjustable, 7/8-14" thread x 5/8 tube x 3/4-16" thread

1шт.

51

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1/2 tube x 3/4-16" thread, 90°, Includes: Ref. 52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
