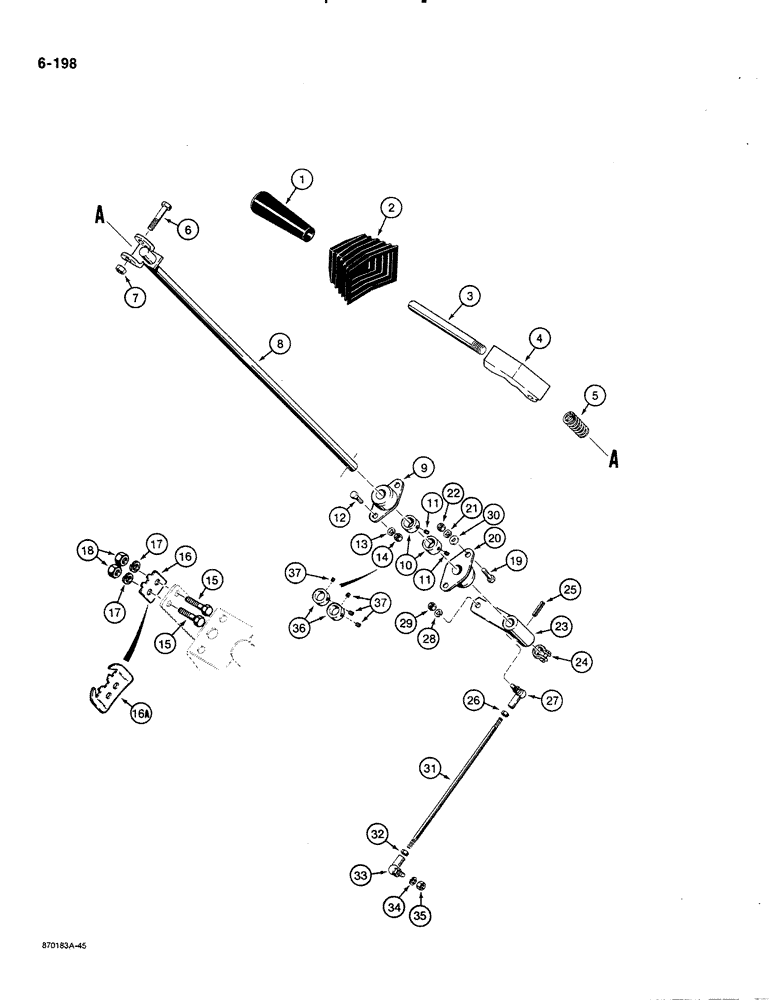

Запчасти Case 580K (06-198) - SHUTTLE CONTROL AND LINKAGE, USED ON MODELS WITHOUT TILT/TELESCOPING STEERING COLUMN (06) - POWER TRAIN

1

D86694

KNOB

shuttle control lever

1шт.

2

D138175

BOOT

shuttle control rod

1шт.

3

D131414

ROD

shuttle control lever

1шт.

4

D134343

LEVER

control, shuttle, upper

1шт.

5

D124906

SPRING

detent

1шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

131-217

LOCK NUT

NUT light hex, self-locking, 3/8" NC

1шт.

8

D136701

ROD

control lever

1шт.

9

L15401

BEARING,15.89mm ID

steering valve bracket

1шт.

10

D81756

COLLAR

ASSEMBLY locking, with 1/4" set screw, no longer used, order P/N D142939 collar, Ref. 36, Includes: Ref. 11

2шт.

11

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex headless, 1/4"-20 NC x 1/4", cup point, plated

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

16

D138714

PLATE

detent, no longer used, for service order P/N D140692 plate

1шт.

16a

D140692

LARGE PLATE

PLATE detent

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

20

L15401

BEARING,15.89mm ID

steering valve bracket

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

D138713

LEVER

shuttle, lower

1шт.

24

D71880

CLAMP,22.23mm

adjustable, includes hardware

1шт.

25

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

26

129-121

NUT,1/4"-28, G5

1шт.

27

D63154

JOINT,1/4" - 28 x 1-1/3"

ball, 1/4"

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

29

129-121

NUT,1/4"-28, G5

1шт.

30

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

31

D143423

ROD

lever to power shuttle

1шт.

32

129-121

NUT,1/4"-28, G5

1шт.

33

D63154

JOINT,1/4" - 28 x 1-1/3"

ball, 1/4"

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

35

129-121

NUT,1/4"-28, G5

1шт.

36

D142939

COLLAR

ASSEMBLY locking, with 5/16" set screw, Includes: Ref. 37

2шт.

37

D143603

SET SCREW,5/16" - 18 x 8mm

set, torx socket headless, 5/16"-18 NC x 5/16", cup point, special

2шт.
