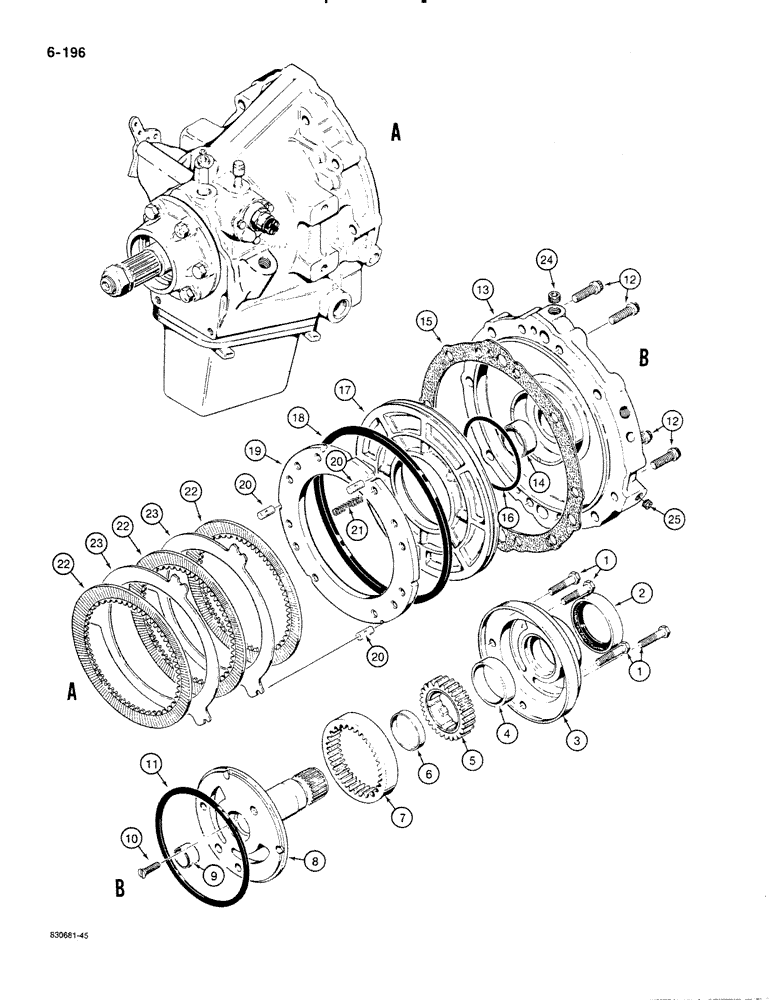

Запчасти Case 580K (06-196) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

SHUTTLE ASSEMBLY power, see Figure 06-188 for service information, see Figures 06-188 thru 06-196 for parts list, Includes: Ref. 1 thru 25 in this figure

1шт.

1

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

R29995

PUMP

ASSEMBLY charging, power shuttle, no longer used, order P/N L30488 pump assembly

1шт.

L30488

PUMP

ASSEMBLY charging, power shuttle, service replacement, Includes: Ref. 2 thru 10

1шт.

137093A1R

REMAN-HYD PUMP

580K, REMAN for Part No. L30488, N.A. Only

1шт.

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

oil, P/N R29995 pump

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

2

L30489

OIL SEAL

oil, P/N L30488 pump

1шт.

3

NSS

NOT SOLD SEPARAT

BODY charging pump, Includes: Ref. 4

1шт.

4

D50071

BUSHING

charging pump

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR drive, charging pump, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING charging pump gear drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR driven, charging pump

1шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT torque converter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING torque converter support

1шт.

10

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

machine, flat head slotted, No. 10-24 NC x 3/4", special

1шт.

11

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

charging pump

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

12

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT, Ferry head, 3/8"-16 NC x 1-1/4", grade 8

4шт.

D50022

ADAPTER

COVER ASSEMBLY power shuttle, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COVER power shuttle

1шт.

14

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

cover

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

15

D50033

GASKET,0.58mm Thk

cover housing

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

16

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING small

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

17

D50035

PISTON

reverse clutch

1шт.

18

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

RING piston seal, square section

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

19

D50037

PLATE

pressure, reverse clutch

1шт.

Per ECN D943038, P/N D50037 reverse clutch pressure plate was removed from the kit as it is not always required. P/N D50037 must be ordered separately. reference E.A.R. #P&C-NA-94-159

1шт.

20

D50038

PIN

dowel, pressure plate

3шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D50039

SPRING

pressure plate

11шт.

Part of Gasket Seal Kit P/N D103220

1шт.

22

D50040

PLATE

DISC friction, internal tooth

3шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

23

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC metal, external flange

2шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

24

221-841

PLUG

hex socket head, 1/4" NPT

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

2шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket (P/N R29956 oil pan gasket not used on the model 580K)

1шт.
