Запчасти Case 580K (06-194) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

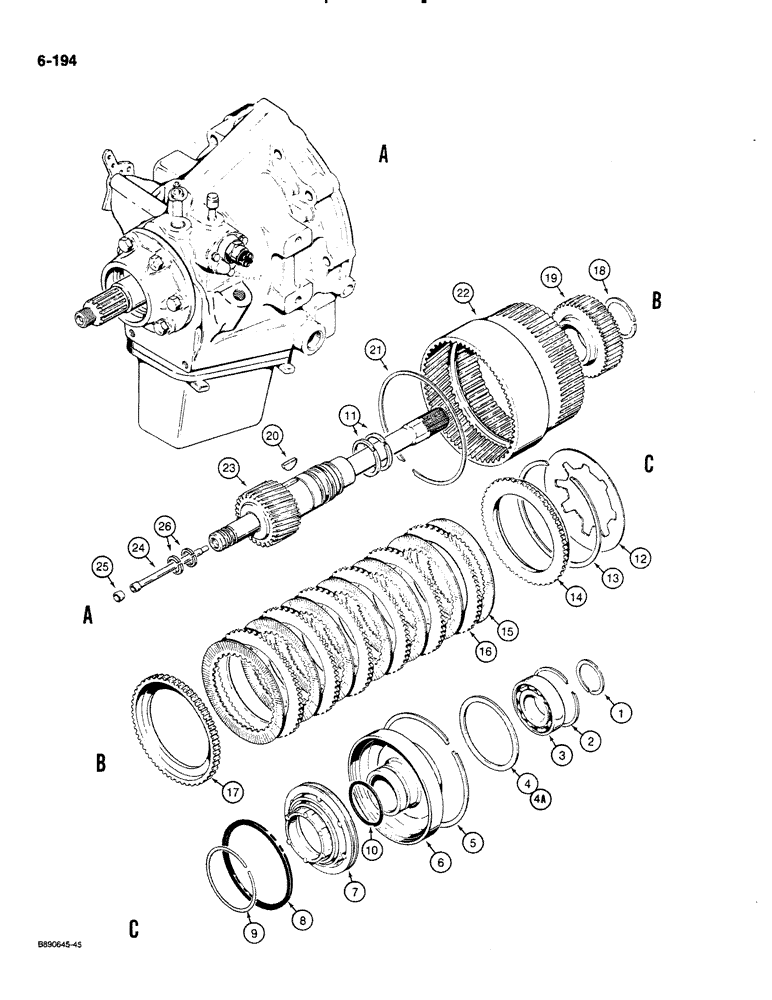

SHUTTLE ASSEMBLY power, see Figure 06-188 for service information, see Figures 06-188 thru 06-196 for parts list, Includes: Ref. 1 thru 26

1шт.

1

D50042

RING

snap, bearing retaining, small

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

2

D50043

RING

snap, bearing retaining, large

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

3

D50044

BALL BEARING

BEARING ball, clutch cylinder, included in P/N D103218, bearing kit

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

thrust, forward clutch, thin, if used

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

4a

D143871

WASHER

thrust, forward clutch, thick, if used

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

5

D50046

RING

ring gear retaining

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

6

D50075

CYLINDER

forward clutch

1шт.

7

D70670

PISTON

forward clutch

1шт.

8

D50077

RING

seal, piston

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

retaining, piston

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING cylinder

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

sealing

2шт.

Part of Gasket Seal Kit P/N D103220

1шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

Belleville

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

13

D50048

CIRCLIP

RING retaining, pressure plate

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

14

D50081

PLATE,139.12mm OD

pressure, front

1шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

15

D70672

PLATE

DISC friction, internal tooth

7шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

16

D50083

PLATE

DISC friction, external tooth

6шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

17

D50084

PLATE,139.45mm OD

pressure, rear

1шт.

Part of Clutch Overhaul Kit P/N D103219

1шт.

18

D50049

RING

clutch hub retaining

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

19

D75853

HUB

clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D50051

SNAP RING

RING, .050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D78397

RING

.062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D50052

RING

.074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D78398

RING

.084" (2.134 mm) to .088" (2.235 mm) thick

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

21

D50053

RING

.096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

Part of Gasket Seal Kit P/N D103220

1шт.

22

D50054

GEAR

ring, power shuttle

1шт.

D70666

GEAR

SHAFT ASSEMBLY input, power shuttle, Includes: Ref. 23 thru 25

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT input, drive

1шт.

24

N7043

TUBE

forward clutch supply

1шт.

25

D50086

PLUG

shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

sealing

2шт.

Part of Gasket Seal Kit P/N D103220

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket (P/N R29956 oil pan gasket not used on the model 580K)

1шт.
