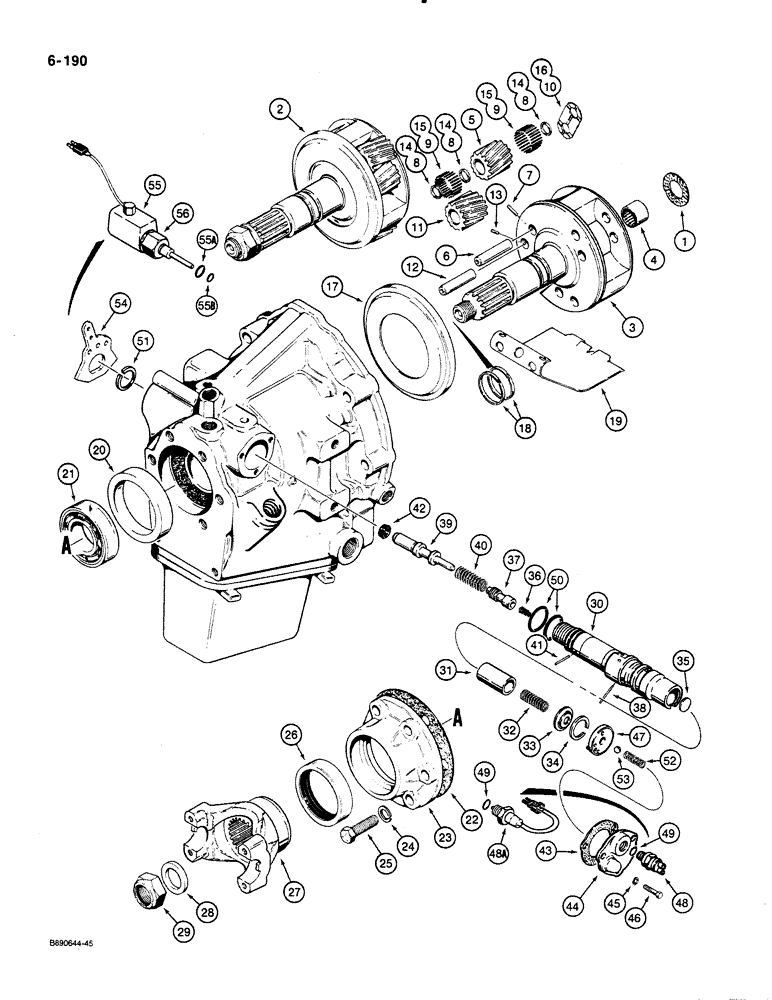

Запчасти Case 580K (06-190) - POWER SHUTTLE, PINION CAGE, OUTPUT SHAFT AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

SHUTTLE ASSEMBLY power, see Figure 06-188 for service information, see Figures 06-188 thru 06-196 for parts list, Includes: Ref. 1 thru 56 in this figure

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

WASHER thrust, clutch hub

1шт.

Part of Seal Kit P/N D103220

1шт.

2

D70665

GEAR

PINION CAGE AND OUTPUT SHAFT power shuttle, Includes: Ref. 3 thru 17

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT basic

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

BEARING needle, output shaft

1шт.

Part of Bearing Kit P/N D103218

1шт.

D50030

GEAR

KIT inner pinion gear and shaft, Includes: Ref. 5 thru 10

3шт.

5

NSS

NOT SOLD SEPARAT

GEAR pinion, inner

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT pinion, inner

1шт.

7

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER pinion bearing

3шт.

9

NSS

NOT SOLD SEPARAT

NEEDLE pinion bearing

48шт.

10

NSS

NOT SOLD SEPARAT

PLATE thrust

2шт.

D50031

KIT

outer pinion gear and shaft, Includes: Ref. 11 thru 16

3шт.

11

NSS

NOT SOLD SEPARAT

GEAR pinion, outer

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT pinion, outer

1шт.

13

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER pinion bearing

3шт.

15

NSS

NOT SOLD SEPARAT

NEEDLE pinion bearing

48шт.

16

NSS

NOT SOLD SEPARAT

PLATE thrust

2шт.

D50087

RING

KIT oil collector ring, Includes: Ref. 17

1шт.

Part of Seal Kit P/N D103220

1шт.

17

S105555

OIL SEAL

RING collector

1шт.

18

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

sealing

2шт.

Part of Seal Kit P/N D103220

1шт.

19

D50056

GUARD

BAFFLE plate

1шт.

20

D50057

SLEEVE

SPACER ball bearing

1шт.

21

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

ball, output shaft

1шт.

Part of Bearing Kit P/N D103218

1шт.

22

D50058

GASKET

ball bearing retainer

1шт.

Part of Seal Kit P/N D103220

1шт.

23

D50059

BEARING HOUSING

RETAINER rear ball bearing

1шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

25

113-363

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5, Full Thd

hex head, 7/16"-14 NC x 1-1/8", plated

6шт.

26

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

oil, rear

1шт.

Part of Seal Kit P/N D103220

1шт.

This is a Chicago Rawhide seal approx. 1/2" wide. There have been a couple calls in reference to a "NOK" seal in this application with a vendor P/N UH0331E, approx. 3/8" width. The vendor who built the shuttle says they did switch over to the NOK seal. The wider Chicago Rawhide seal should be no problem to use for service on units with the narrower production seal.

1шт.

27

D124144

FLANGE

YOKE output shaft mounting

1шт.

28

D65247

WASHER

output shaft

1шт.

Part of Seal Kit P/N D103220

1шт.

345-84

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealer in a tube, not shown, can be used between P/N D65247 washer and end of shaft

1шт.

29

131-91

LOCK NUT,3/4"-16, G8

NUT hex, self-locking, 3/4"-16 NF, special

1шт.

N13639

VALVE

ASSEMBLY, P/N D136020 or D135731 power shuttle, double groove for two P/N D37156 O-rings, Ref. 50, Includes: Ref. 30-42

1шт.

N14765

VALVE BODY

VALVE ASSEMBLY, P/N D140175, D140405 or D140492 power shuttle, Includes: Ref. 30-38

1шт.

30

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

31

D50089

VALVE

pressure regulator

1шт.

32

D50090

SPRING

valve

1шт.

33

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

spring

1шт.

34

D50092

RING

spring retaining

1шт.

35

41-12

PLUG,Exp, 3/4"

expansion, 3/4"

1шт.

36

D77476

SPRING

clutch cutout

1шт.

37

D77474

SPOOL

valve

1шт.

38

135-198

GROOVED PIN,5/64" x 1", Type B

PIN, GROOVED, , Half length taper 5/64" x 1", Type B

1шт.

39

D75488

PLUNGER

P/N N13639 valve only

1шт.

40

D77475

SPRING

plunger, P/N N13639 valve only

1шт.

41

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , P/N N13639 valve only 1/8" x 7/8", Slotted

1шт.

42

D75489

SEAL,11.11mm ID x 17.46mm OD x 3.17mm Thk

oil, P/N N13639 valve only, see Ref. 42A

1шт.

Part of Seal Kit P/N D103220

1шт.

42a

D75492

PLASTIC RING

TOOL installation, used to install P/N D75489 seal, Ref. 42, not shown

1шт.

43

D50066

GASKET,0.41mm Thk

valve cover

1шт.

Part of Seal Kit P/N D103220

1шт.

44

D86488

COVER

valve

1шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

46

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex head, 1/4"-20 NC x 7/8", plated

3шт.

47

D86489

CAM

neutral start switch

1шт.

48

S113435

SWITCH

neutral start, with snap-on connector, used with P/N D135731, D136020, D140175, or D140405 power shuttle assembly

1шт.

48a

D141061

SWITCH

neutral start, with plastic wire connector, used with P/N D140492 power shuttle assembly, Includes: Ref. 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, P/N S113435 or D141061 switch

1шт.

Part of Seal Kit P/N D103220

1шт.

50

D142214

O-RING,1.051" ID x 1.191" OD

valve

2шт.

Part of Seal Kit P/N D103220

1шт.

51

A75171

SNAP RING,#112, 1.060", Ext

RING retaining

1шт.

52

S47892

SPRING

poppet

1шт.

53

211-9

BALL,5/16" Dia

5/16", grade 200, chrome alloy steel

1шт.

54

D77621

LEVER

shift

1шт.

The Belleville spring, used on later models, which fits adjacent to shift lever, Ref. 54, is P/N D147178, not shown.

1шт.

55

N14766

SOLENOID VALVE

SOLENOID, P/N D140175, D140405 or D140492, power shuttle, Includes: Ref. 55A and 55B

1шт.

55a

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

internal, valve body, large

1шт.

55b

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

internal, valve body, small

1шт.

56

131-424

NUT,PAL, 1 1/8"-7

NUT hex, self-locking, 1-1/8"-7 NC, P/N D140175, D140405, or D140492 power shuttle

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket (P/N R29956 oil pan gasket not used on the model 580K)

1шт.
