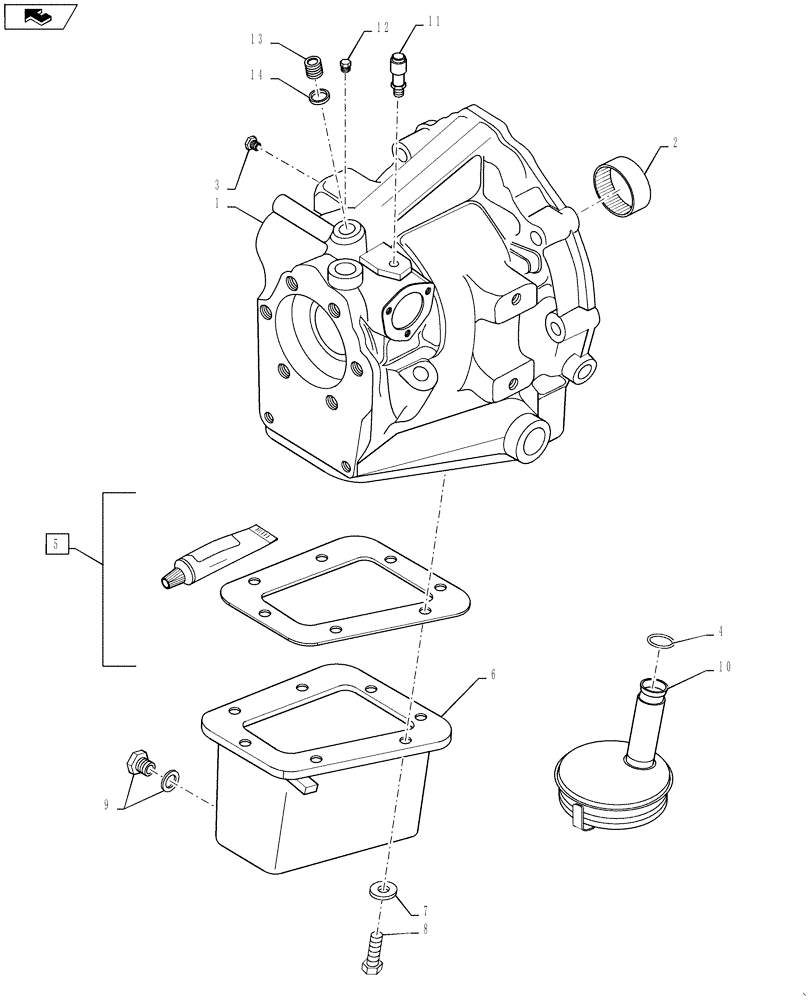

Запчасти Case 580K (06-188) - POWER SHUTTLE, HOUSING AND OIL PAN (06) - POWER TRAIN

D136020

CLUTCH ASSEMBLY

SHUTTLE ASSEMBLY power, without tube and relief valve (Ref. 27-34 in Figure 06-182) (Warner Gear No. 10-16-000-026) w/o clutch dump solenoid, Includes: P/N D70650 and Ref. 1-13 in this figure & parts in Figures 06-190 thru 06-196 plus an instruction sheet

1шт.

Service replacement for P/N D135731 (Warner Gear No. 10-16-000-033) power shuttle used in production on some models. P/N D135731 power shuttle also Includes: Ref. 27-34 in Figure 06-182, no longer used, for service order P/N D102905 power shuttle kit.

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number ,Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D140405

CLUTCH ASSEMBLY

SHUTTLE ASSEMBLY power, without tube and relief valve (Ref. 27-34 in Figure 06-182) (Warner Gear No. 10-16-000-048) with clutch dump solenoid, Includes: P/N D70650 and Ref. 1-13 in this figure and parts in Figures 06-190 thru 06-196

1шт.

Service replacement for P/N D140175 (Warner Gear No. D10-16-000-047) power shuttle used in production on some models. D140175 power shuttle also Includes: Ref. 27-34 in Figure 06-182, for service order P/N D102905 power shuttle kit

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D140492

SHUTTLE ASSEMBLY power, includes tube and relief valve (Ref. 27-34 in Figure 06-182) (Warner Gear No. 10-16-000-047) with clutch dump solenoid and neutral start switch (Ref. 48A and 55 in Figure 06-190)

1шт.

If replacing P/N D140492 power shuttle and your neutral start switch is bad, you will need to order P/N D141061 switch in Figure 06-190 in addition to the kit.

1шт.

Includes: P/N D70650 and Ref. 1-13 in this figure and parts in Figures 06-190 thru 06-196, for service order P/N D102905 power shuttle kit

1шт.

D70650

HOUSING

Power shuttle, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

Housing, included in P/N D103218 bearing kit

1шт.

3

41-1007

PLUG,Cup, 7/16"

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

O-RING screen tube, included in P/N D103223 seal kit

1шт.

5

345-84

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, oil pan housing

1шт.

6

N13577

PAN

Oil, power shuttle

1шт.

7

192-21

LOCK WASHER,3/8"

7шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

9

221-841

PLUG

Hex socket head, 1/4" NPT

1шт.

10

D66455

FILTER SCREEN

Sump, power shuttle, with leaf spring retainer, no longer available, order P/N D143133 screen

1шт.

10a

D143133

FILTER SCREEN

Sump, power shuttle, with four-peg retainer

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

2шт.

The thread on the side of housing may have 3/8"-24 threaded hole. Then the dealer has to purchase plug locally. This is a test port.

1шт.

12

221-843

PLUG,Hex Soc, 3/8"-18

1шт.

Use either this hex socket head 3/8" NPT P/N 221-843 plug, used on early units or P/N 218-5155 hex head plug 9/16"-18 NPT with O-ring, refer T/S # 29-90.

1шт.

13

D50062

BREATHER

Power shuttle

1шт.

D102905

TRANSMISSION

KIT power shuttle, service replacement, Includes: P/N D140405 power shuttle and installation instructions

1шт.

DR140175

REMAN-TRANSMISSION

Remanufactured Power Shuttle

1шт.

DC140175

CORE-TRANSMISSION

Return Part Number

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket (P/N R29956 oil pan gasket not used on the model 580K)

1шт.
