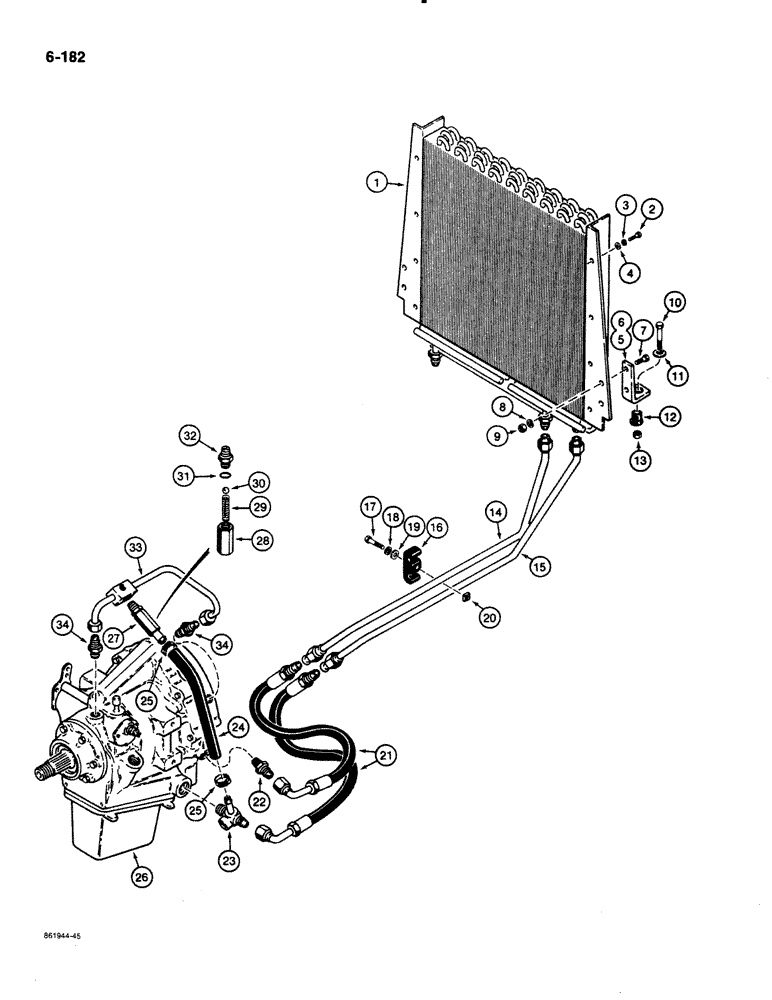

Запчасти Case 580K (06-182) - POWER SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A184542

COOLER, OIL

COOLER oil, power shuttle and equipment hydraulic oil, for equipment hydraulic oil cooler lines, see Figures 08-292 and 08-294

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, 8 mm-1.25 x 16 mm, 8.8, plated, mounts oil cooler to radiator

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

195-521

WASHER,5/16", SAE

flat, 5/16", plated

8шт.

5

D131921

SUPPORT

BRACKET mounting, oil cooler to radiator shroud, left-hand

1шт.

6

D131920

SUPPORT

BRACKET mounting, oil cooler to radiator shroud, right-hand

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to oil cooler Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket to radiator shroud Hex, 3/8"-16 x 1 3/4", G5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration, rubber mount

2шт.

13

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8"-16 NC, plated

2шт.

14

D137205

TUBE ASSY.

TUBE power, Serial Range: shuttle-cooler

1шт.

15

D137207

TUBE ASSY.

TUBE cooler to power shuttle

1шт.

16

D120679

CLAMP,Tube, 1/2"

double tube

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

20

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.

21

D133867

HOSE ASSY.

HOSE, 21-21/32" (550 mm) long, at power shuttle

2шт.

22

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight, male

1шт.

23

D68972

CONNECTOR, ELEC

FITTING, 4-way, special

1шт.

24

D136710

HOSE,12.5 mm ID x 250.00 mm, SAE 100R3

Cut to Required Length from P/N S118388 Bulk Hose, See Below 12.5 mm ID x 250.00 mm, SAE 100R3

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose

2шт.

26

REF

INSTRUCTION

SHUTTLE ASSEMBLY power, see Figures 06-188 thru 06-196 for parts list

1шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.

27

D133321

VALVE POPPET

VALVE ASSEMBLY relief, with stem fitting at one end, power shuttle, Includes: Ref. 28 thru 32

1шт.

Ref. 27 thru 34 are included in P/N D135731, D140175, and D140492 power shuttle assemblies.

1шт.

28

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

29

S73472

SPRING

relief valve

1шт.

30

211-212

BALL

7/16", grade 25, chrome alloy steel

1шт.

31

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

seat

1шт.

32

S73469

SEAT, VALVE

SEAT spring

1шт.

D135703

PIPE ASSY.

TUBE power shuttle, Includes: Ref. 33 and 34

1шт.

Ref. 27 thru 34 are included in P/N D135731, D140175, and D140492 power shuttle assemblies.

1шт.

33

NSS

NOT SOLD SEPARAT

TUBE power shuttle

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR with sleeve and nut

2шт.
