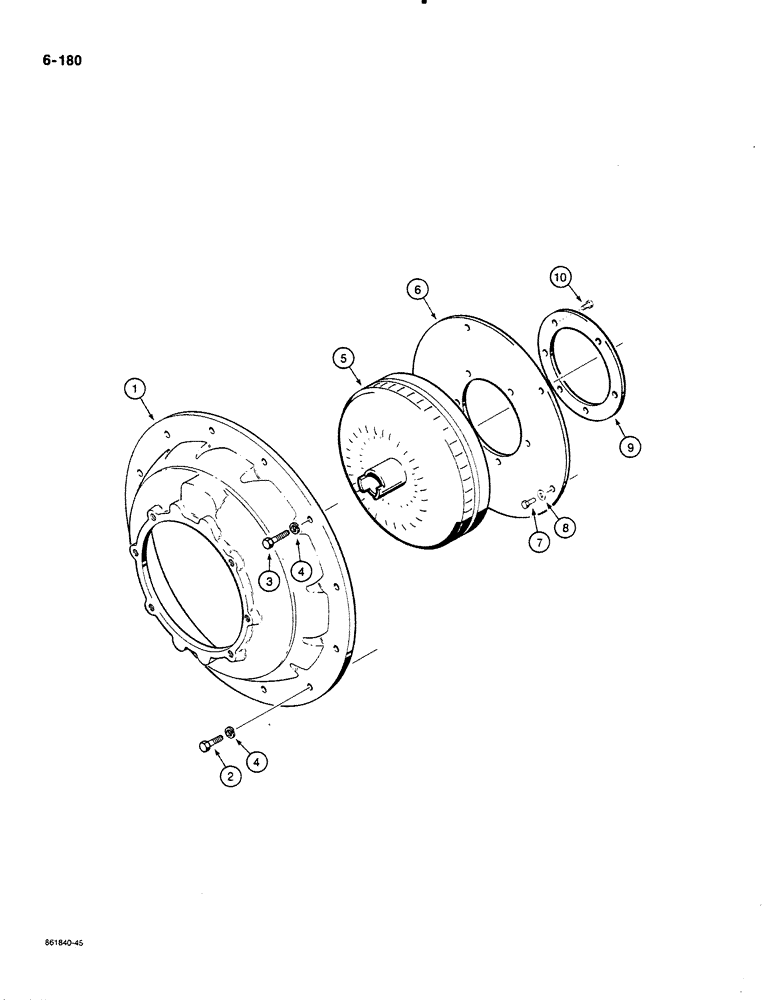

Запчасти Case 580K (06-180) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN

1

D48445

HOUSING

HOUSING torque converter

1шт.

2

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 30, 8.8

11шт.

3

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT - hex, 10 mm - 1.5 x 35 mm (8.8), plated

1шт.

4

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated

12шт.

5

D81693

CONVERTER

CONVERTER torque, transmission

1шт.

5

103293A1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

5

103293A1C

CORE-TORQUE CONVERTR

Core Torque Converter, Return Part Number

1шт.

6

D131147

PLATE

PLATE torque converter, hardened

1шт.

7

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

BOLT - special, 5/16"-18 NC x 5/8", grade 8

6шт.

8

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER flat, special

6шт.

9

D81592

PLATE

PLATE torque converter drive

1шт.

10

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT special, 3/8"-24 NF x 1/2", grade 8, drive plate mounting

6шт.
