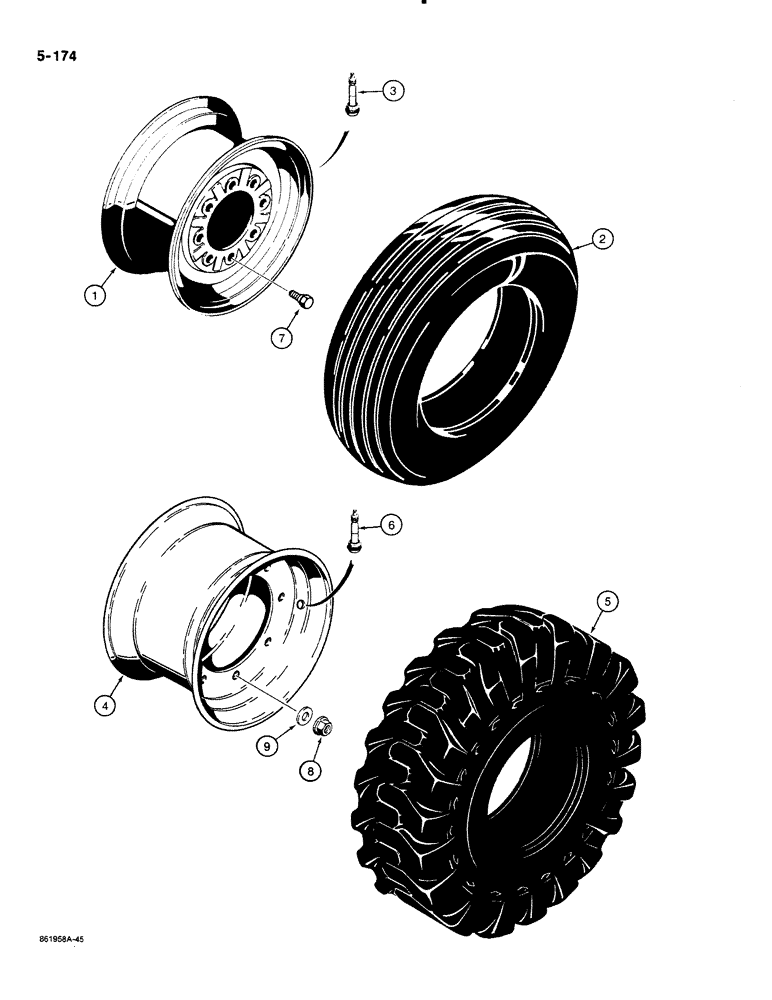

Запчасти Case 580K (05-174) - FRONT WHEELS AND TIRES (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

rim, for 11L x 16 tires, 2WD Models

2шт.

2

REF

INSTRUCTION

TIRE front, purchase locally, for 11L x 16 tires, two wheel drive models

2шт.

Consult your parts buyer's guide for applicable tire programs currently being offered

1шт.

3

A38261

VALVE

STEM valve, wheel, for 11L x 16 tires, two wheel drive models

2шт.

4

D126930

RIM

WHEEL rim, 8-hole pattern, for 12 x 16.5 tires, four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE front, purchase locally, for 12 x 16.5 tires, four wheel drive models

2шт.

Consult your parts buyer's guide for applicable tire programs currently being offered

1шт.

6

A38261

VALVE

STEM valve, wheel, for 12 x 16.5 tires, four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

K395089

WHEEL NUT

wheel retaining, four wheel drive models

16шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, wheel nuts, four wheel drive models

16шт.
